Parker PV Series Rising Plug and Gauge/Root Valves
Parker 針閥 - Parker Needle Valves

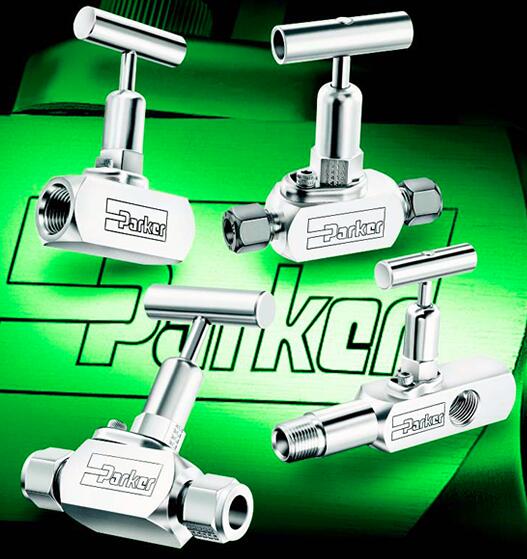

Needle Valve,Rising Plug 6000 PSI - PV Series

針閥，立式旋塞 6000 PSI - PV 系列 | #4Z-PV4PFA-V-SS

Parker PV 系列立式旋塞閥和儀表/羅茨閥采用螺紋閥蓋設計。這些明桿旋塞閥的工作壓力高達 6,000 PSI (414 BAR)。由于各種閥座和密封材料，它們可以滿足高壓和高溫應用。Parker 立式旋塞和表壓/羅茨閥采用螺紋閥蓋設計，可提供多種閥座和密封材料。這些閥門具有閥蓋鎖定板，以提高閥門安全性。PV 和 PVG 系列閥門提供兩種孔徑的直通流路。這種“可旋轉”功能讓用戶可以清除臟應用程序或粘性應用程序中的流動流。另外座椅是可以更換的。這些是與一般針型閥相比的巨大優勢。

此外，這些閥門采用非濕式上閥桿和非旋轉下閥桿以及錐形閥座，即使在顆粒（漿液）介質中也能實現可靠關閉和長閥座壽命。閥蓋頂部裝有防塵密封件，以確保在使用時沒有任何東西從外部環境進入閥桿區域以鎖定閥桿旋轉。

派克PARKER Needle Valve,Rising Plug 6000 PSI - PV Series

市場：
- 化工
- 石化
- 石油和天然氣
- 動力

特性/優點：

- 雙向流動
- 可旋轉的直通流路
- 閥蓋鎖板
可防止閥蓋意外脫離- 閥桿防塵密封有助于保護閥桿免受外部污染
- 入口側可選出口 – PVG 1/4" 內螺紋 NPT
- PVG 1/2" 內螺紋 NPT
- 堅固的 316 不銹鋼棒材結構
- 面板安裝選項
- 儀表端口選項
- 100% 工廠測試

應用：

- 過程控制管線
- 儀表端口應用
- 嚴苛工況
- 高壓管線

Parker PV Series Rising Plug and Gauge/Root Valves are a screwed bonnet design. These rising stem plug valves operate up to 6,000 PSI (414 BAR). They can meet high pressure and temperature applications due to various seat and seal materials.

Parker Rising Plug and Gauge/Root Valves are a screwed bonnet design and available with a variety of seat and seal materials. These valves feature bonnet lock plates for additional valve safety. The PV and PVG Series of valves provide a straight-through flow path in two orifice sizes. This “roddable” feature lets the user clean out the flow stream in dirty or a sticky application. Plus the seat is replaceable. These are tremendous advantages over a general needle style valve.

In addition, these valves utilize a non-wetted upper stem and a non-rotating lower stem in conjunction with a tapered seat for positive shut-off and long seat life, even in particulated (slurry) media. The dust seal is incorporated at the top of the bonnet to insure nothing enters the valve stem area from the outside environment to lock up the stem rotation when in service.

Markets:
- Chemical
- Petrochemical
- Oil and Gas
- Power


Features/Benefits:

- Bi-directional flow
- Roddable, straight through flow path
- Bonnet lock plate resists accidental bonnet disengagement
- Stem dust seal helps protect stem from external contamination
- Inlet side optional outlet – PVG 1/4" Female NPT
- PVG 1/2" Female NPT
- Rugged 316 stainless steel bar stock construction
- Panel mounting option
- Gauge port option
- 100% factory tested



Applications:

- Process Control Lines
- Gauge Port Applications
- Severe Service
- High Pressure Lines

Technical Specifications

Needle Valve,Rising Plug 6000 PSI - PV Series 型號
