      產品分類

      Snap-tite快速接頭




      Parker Autoclave's SOGWO Series of high-pressure sour service fitting components
      Parker Fittings接頭- Tube Fittings
      Cone and Thread Fittings, Sour Service-SOGWO Series 30,000 PSI



      派克Parker Autoclave的SOGWO系列高壓酸服務配件組件能夠在30,000 psi(2068 bar)的壓力下運行,尺寸范圍為1/4“至9/16”。Parker Autoclave的高壓SOG配件設計用于最高30,000 PSI的酸性石油和天然氣(H2S)。SOG組件采用指定的材料和程序制造,以實現最佳的H2S耐受性。這些材料規格和制造程序會不斷更新,以結合最新的進展和客戶要求。SOG組件符合或超過NACE MR0175的所有要求。SOG類型的組件在100°F(38°C)下的額定壓力高達30,000 psi(2068 bar)。Parker Autoclave Engineers的SOG組件采用錐形和螺紋連接設計,可為氣體和液體服務提供防泄漏的可靠連接。



      Parker Autoclave's SOGWO Series of high-pressure sour service fitting components
      Cone and Thread Fittings, Sour Service-SOGWO Series 30,000 PSI

      Parker Autoclave's SOGWO Series of high-pressure sour service fitting components are capable of operating to 30,000 psi (2068 bar) and range in size from 1/4" to 9/16" tube size. Parker Autoclave's high-pressure SOG fittings are designed for use with sour oil and gas (H2S) up to 30,000 PSI. SOG components are manufactured with materials and procedures specified for optimum resistance to H2S. These material specifications and manufacturing procedures are continually updated to incorporate the latest advances and customer requirements. SOG components meet or exceed all requirements of NACE MR0175. Type SOG components are rated up to 30,000 psi (2068 bar) at 100°F (38°C).
      The Parker Autoclave Engineers SOG components utilize a coned-and-threaded connection design providing a leak tight reliable connection for gas and liquid service.

      Markets:
      - 石油和天然氣(H2S服務)Oil and Gas (H2S Service)


      Features/Benefits:
      - 管路尺寸為1/4“,3/8”和9/16“ Tubing sizes are 1/4", 3/8" and 9/16"
      - 錐形和螺紋連接Coned-and-threaded connection
      - 配件由316不銹鋼退火制成 Fittings manufactured from annealed 316 stainless steel
      - 可提供特殊材料 Available in special materials

      Applications:
      -酸性石油和天然氣生產線 Process Lines in Sour Oil and Gas
      - H2S防滑板H2S Skid Panels



      Technical Specifications

      Fitting Type: Cone and Thread
      Maximum Operating Pressure: 30,000 psi, 2068.39 bar



      Cone and Thread Fittings, Sour Service-SOGWO Series 30,000 PSI 型號

      Part Connection Type Connection Tube O.D. (inch) Connection Tube O.D. (mm) Shape
      60BF4433-SOGWO F250C 1/4" 6.35 mm Bulkhead Coupling
      60BF6633-SOGWO F375C 3/8" 9.53 mm Bulkhead Coupling
      60BF9933-SOGWO F562C 9/16" 14.29 mm Bulkhead Coupling
      60F4433-SOGWO F250C 1/4" 6.35 mm Straight Coupling
      60F6633-SOGWO F375C 3/8" 9.53 mm Straight Coupling
      60F9933-SOGWO F562C 9/16" 14.29 mm Straight Coupling
      60UF4433-SOGWO F250C 1/4" 6.35 mm Union Coupling
      60UF6633-SOGWO F375C 3/8" 9.53 mm Union Coupling
      60UF9933-SOGWO F562C 9/16" 14.29 mm Union Coupling
      CCL40-316SOG F250C 1/4" 6.35 mm Collar
      CCL60-316SOG F375C 3/8" 9.53 mm Collar
      CCL90-316SOG F562C 9/16" 14.29 mm Collar
      CGL40-316SOG F250C 1/4" 6.35 mm Gland
      CGL60-316SOG F375C 3/8" 9.53 mm Gland
      CGL90-316SOG F562C 9/16" 14.29 mm Gland
      CL4400-SOGWO F250C 1/4" 6.35 mm Elbow
      CL6600-SOGWO F375C 3/8" 9.53 mm Elbow

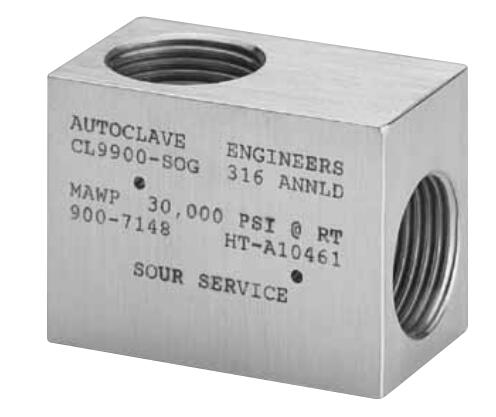

      CL9900-SOGWO F562C 9/16" 14.29 mm Elbow
      CP40-316SOG F250C 1/4" 6.35 mm Plug
      CP60-316SOG F375C 3/8" 9.53 mm Plug
      CP90-316SOG F562C 9/16" 14.29 mm Plug
      CT4440-SOGWO F250C 1/4" 6.35 mm Tee
      CT6660-SOGWO F375C 3/8" 9.53 mm Tee
      CT9990-SOGWO F562C 9/16" 14.29 mm Tee
      CX4444-SOGWO F250C 1/4" 6.35 mm Cross
      CX6666-SOGWO F375C 3/8" 9.53 mm Cross
      CX9999-SOGWO F562C 9/16" 14.29 mm Cross
