泄放閥，高壓 - MPBV 系列 | #9HM-MPBV-V-SS
Bleed Valves, High Pressure - MPBV series | #9HM-MPBV-V-SS
Parker 儀表閥 - Parker Instrumentation Valves - MPBV series Bleed Valves, High Pressure

MPBV 系列泄放閥設計用于將系統的管線壓力排放到大氣或單獨的密封管線。Parker 的 MPBV 系列排放閥設計用于高達 30,000 PSI 的高壓系統。這些緊湊型排放閥用于其他閥門或系統，例如多閥歧管或儀表/根閥。獨特的功能之一是，當與排放端口一起使用時，該排放閥可以將系統管線壓力排放到大氣或單獨的密封管線。這為安裝者提供了更靈活的應用程序。每當從系統中移除儀器或協助校準控制設備時，都會使用派克高壓排放閥。

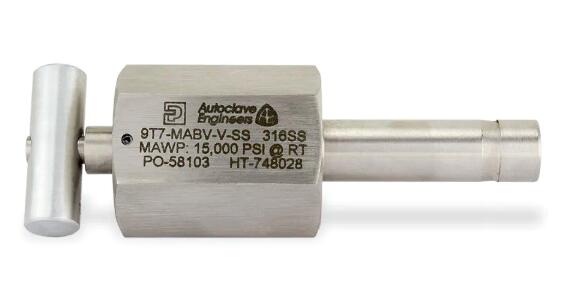

Parker's MPBV Series Bleed Valves

市場：

- 電力
- 化工/石化
- 紙漿和造紙
- 海上

特性/優勢：

- 提供 316 不銹鋼材質
- 排氣口可用于引導系統管路中的多余氣體或液體
- 緊湊型設計
- T 形桿手柄，無需扳手驅動
- 可選密封材料可用

應用：
- 多閥歧管
- 壓力罐
- 校準系統
- 液壓系統

Parker's MPBV Series Bleed Valves are designed to vent a system's line pressure either to atmosphere or a separate containment line. These compact bleed valves are rated to pressures up to 30,000 PSI.

Parker's MPBV Series Bleed Valves are designed for high pressure systems up to 30,000 PSI .These compact bleed valves are used on other valves or systems such as multi-valve manifolds or gauge/root valves. One of the unique features is that this bleed valve can vent the system line pressure to atmosphere or to a separate containment line when used with the vent port. This provides for a more flexible application for the installer. Parker high pressure bleed valves are used whenever an instrument is removed from a system or to assist in the calibration of control devices.

Markets:

- Power
- Chemical/Petrochemical
- Pulp and Paper
- Offshore

Features/Benefits:

- Available in 316 Stainless Steel
- Vent port available to direct excess gas or liquid from system lines
- Compact design
- T-bar handle for wrench-less actuation
- Optional seal material available


Applications:
- Multi-Valve Manifolds
- Pressure Tanks
- Calibration Systems
- Hydraulic Systems

技術規格

Technical Specifications

Bleed Valves, High Pressure - MPBV series 型號
