PARKER Compression Fitting, 22,500 PSI - FCC Series

Parker Autoclave - FCC 系列22,500 PSI壓縮接頭

Parker Autoclave 的 FCC 系列利用壓縮式連接的組裝和安裝簡單性以及錐體和螺紋的強度。它使用雙高完整性金屬對金屬密封連接，適用于高達 22,500 PSI。Parker Autoclave 的擴口錐形連接 (FCC) 技術將壓縮式連接的組裝和安裝簡單性與錐形和螺紋的強度相結合。它使用單個壓縮套管和擴口管端來創建雙重高完整性金屬對金屬密封連接，適用于高達 22,500 PSI (1,550 bar) 的各種中壓應用。該設計結合了防彈出功能，并且作為標準防振 - 消除了對防振壓蓋組件的任何需要。

FCC 系列 22,500 PSI 壓縮套管接頭提供 1/4"、3/8"、9/16"、3/4" 和 1" 連接尺寸。該系列包括：

- 壓蓋、塞子和套筒組件（隨所有 FCC 閥門提供）
- 彎頭、三通和十字接頭
- 直管和隔板接頭

FCC 接頭由冷加工的 316 不銹鋼制成作為標準，并可選擇提供 2507 超級雙工版本。所有 316SS 接頭的額定壓力為 20,000 PSI（1,379 bar），工作溫度范圍為 -73 至 316?C（-100 至 600?F），所有 2507 超級雙相接頭的額定壓力為 22,500 PSI（1,550 巴）溫度范圍為 -45 至 316°C（-50 至 600°F）。

FCC 壓縮套筒由 Inconel 718 制成，壓蓋螺母涂有二硫化鉬以防止磨損。

PARKER Compression Fitting, 22,500 PSI - FCC Series

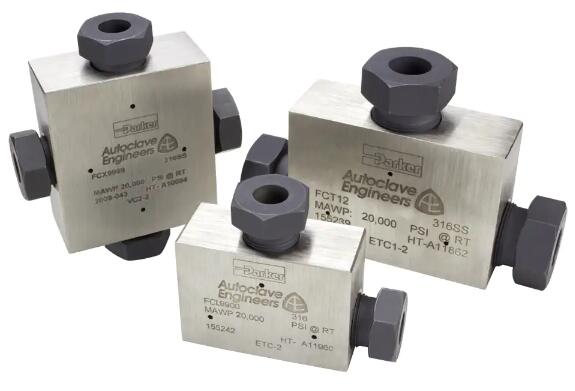

Parker Autoclave's FCC Series utilizes the make-up and installation simplicity of compression style connections with the strength of cone and thread. It uses a dual high integrity metal-to-metal seal connection that is suitable up to 22,500 PSI. Parker Autoclave's Flared Cone Connection (FCC) technology combines the make-up and installation simplicity of compression style connections with the strength of cone and thread. It uses a single compression sleeve and a flared tube end to create a dual high integrity metal-to-metal seal connection that is suitable for a wide range of medium pressure applications up to 22,500 PSI (1,550 bar). The design incorporates an anti-ejection features and also is vibration proof as standard – eliminating any need for an anti-vibration gland assembly.

FCC series 22,500 PSI compression sleeve fittings are available in 1/4", 3/8”, 9/16”, 3/4" and 1” connection sizes. The range includes:

- Gland, plug and sleeve components (supplied with all FCC valves)
- Elbow, tee and cross fittings
- Straight and bulkhead couplings

The FCC fittings are manufactured from cold worked 316 stainless steel as standard, with 2507 super duplex versions optionally available. All 316SS fittings have a pressure rating of 20,000 PSI (1,379 bar) and an operating temperature range of -73 to 316?C (-100 to 600?F), and all 2507 Super Duplex fittings are rated at 22,500 PSI (1,550 bar) with a temperature range of -45 to 316?C (-50 to 600?F).

FCC compression sleeves are manufactured from Inconel 718, and the gland nuts are coated with molybdenum disulfide to prevent galling.

市場：
- 石油和天然氣
- 石化
- 研究
- 化學

特性：
- 22,500 psi (2507 SD) 或 20,000 psi (316 SS) 工作壓力
- 擴口管可防止管子拔出
- 冗余金屬對金屬密封表面
- 第一個密封位于管擴口的 ID 上
- 第二個密封位于壓縮套管和接頭或閥體之間
- 溫度范圍寬，從 -100°F (-73°C) 到2507 SD 為 600°F (316°C) 和 -50°F (-45°C)
- 單個 Inconel 718 壓縮套管可減少裝配錯誤
- 無需防振壓蓋接頭 - 振動在標準設計中得到控制

應用：
- 高壓測試板
- 海上撬板
- 化學品注入
- 高壓氣體系統

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical

Features:
- 22,500 psi (2507 SD) or 20,000 psi (316 SS) working pressures
- Flared Tubing Prevents Tube Extraction
- Redundant Metal to Metal Sealing Surfaces
- First Seal is on ID of Tube Flare
- Second Seal is Between Compression Sleeve and Fitting or Valve body
- Wide Temperature Range from -100°F (-73°C) to 600°F (316°C), and -50°F (-45°C) for 2507 SD
- Single Inconel 718 Compression Sleeve Reduces Assembly Errors
- No Anti-vibration gland fitting needed - vibration is controlled in the standard design

Applications:
- High Pressure Test Panels
- Offshore Skid Panels
- Chemical Injection
- High Pressure Gas Systems

Technical Specifications

Compression Fitting, 22,500 PSI - FCC Series 型號

PARKER FCC: Flare Coned Connection
Product Catalog
Valves, Fittings, Adapters and Tubing Specifically for use with FCC Connection
- 316/316L Stainless Steel to 20,000 psi (1380 bar) Operation
- 2507 Super Duplex to 22,500 psi (1550 bar) Operation
