Parker Autoclave's BV Series wellhead bleed and gauge valves
Parker 儀表閥 - Parker Instrumentation Valves 井口壓力表和排放閥
Wellhead Bleed and Gauge Valve, 30,000 PSI

20,000 PSI 井口放氣閥 - 20BV 系列 | # 20BV6002-SOG

井口壓力表和排放閥是儀器校準或取樣的理想選擇。井口壓力表和放氣閥采用 316 不銹鋼退火材料制成，符合 NACE MR0175 標準。 井口壓力表和排放閥是儀器校準或取樣的理想選擇。井口壓力表和放氣閥采用 316 不銹鋼退火材料制成，符合 NACE MR0175 標準。Parker Autoclave Engineers 井口計量閥是儀器校準和過程采樣的理想選擇。主要應用在石油和天然氣鉆探和生產中，但其他市場也使用這些。為不存在 H2S 的正常現場服務提供標準組件，為存在 H2S 的服務鍵入“SOG”。Parker Autoclave Engineers 型 SOG 組件可提供標準 API 測試和儀表連接（Parker Autoclave Engineers F562C）。油管尺寸為 3/8" 和 9/16"

一個入口和三個出口，所有 9/16" 端口都是 API 測試和儀表連接端口

非旋轉閥桿設計可防止閥桿/閥座磨損

金屬對金屬閥座用于氣密關閉

泄放閥是一件式六角結構，便于安裝

防爆裂閥桿設計

技術規格
最大工作壓力 (psi)：10,000
管道外徑（毫米）：9.53 毫米
閥桿類型：針
閥門類型：排氣閥
連接類型：SM375CX
最大工作壓力：690 巴
管道外徑：3/8"英寸

Wellhead Bleed and Gauge Valve, 30,000 PSI井口壓力表和排放閥

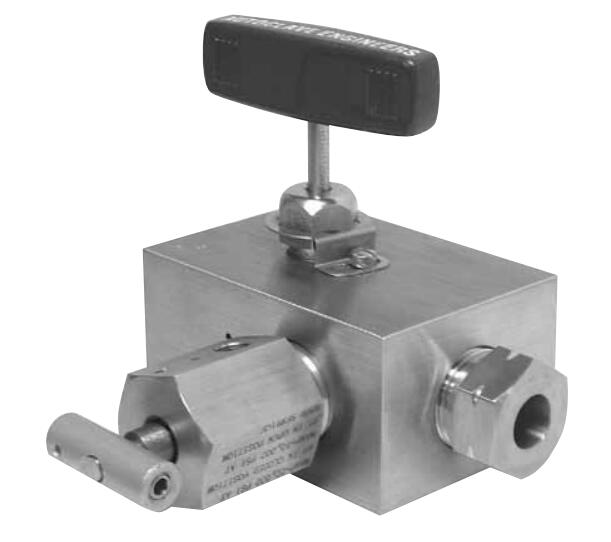

Parker Autoclave's BV Series wellhead bleed and gauge valves

Parker Autoclave's BV Series wellhead bleed and gauge valves are ideal for instrumentation calibration or sampling. The BV Series is standard in 316 stainless steel material and will perform up to 30,000 PSI. These valves comply with NACE MR0175 .

Parker Autoclave's BV and GV Series bleed and gauge valves are a non-rotating rising stem design, working pressures to 30,000 psi (2068 bar). Tubing sizes are 3/8" and 9/16" and are designed to utilize the parker Autoclave Tubing. These valves are 316 stainless steel construction with other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Parker Autoclave Engineers wellhead gauge valves are ideal for instrument calibration and process sampling. The main applications are found in oil and gas drilling, and production, but other markets use these as well. Standard components are offered for normal field service where H2S is not present and type "SOG" for service where H2S is present. Parker Autoclave Engineers type SOG components are available with standard API test and gauge connection (Parker Autoclave Engineers F562C).

Markets:
- Oil and Gas
- Petrochemical
- Chemical


Features/Benefits:
- Tubing sizes are 3/8" and 9/16"
- One inlet and three outlet ports, all 9/16" ports are API test and gauge connection ports
- Non-rotating stem design prevents stem/seat galling
- Metal-to-metal seating for bubble-tight shut-off
- Bleed valve is one piece hex construction allowing easy installation
- Anti-blowout stem design

Applications:
- Process Sampling
- Instrument Calibration
- High Pressure Skid Panels

Technical Specifications

Wellhead Bleed and Gauge Valve, 30,000 PSI 型號
