Parker Autoclave's SF Series are medium pressure cone and thread fittings
Parker Fittings接頭 Tube Fittings
Cone and Thread Fittings, 20,000 PSI - SF Series

派克 Autoclave 的中壓錐螺紋接頭用于 1/4" 至 1-1/2" 管道，額定壓力為 20,000 psi (1379 bar)。Parker Autoclave 的 SF 系列中壓錐螺紋接頭設計用于 20SM 系列中壓閥和 Parker Autoclave 中壓管。這些錐螺紋接頭的額定壓力高達 20,000 PSI (1379 BAR)。其獨特之處之一是這些接頭與孔口的連接尺寸與高流量派克 Autoclave 20SC 系列閥門相匹配。安裝人員可以使用這些匹配的閥門、接頭和管道獲得更高的流速。

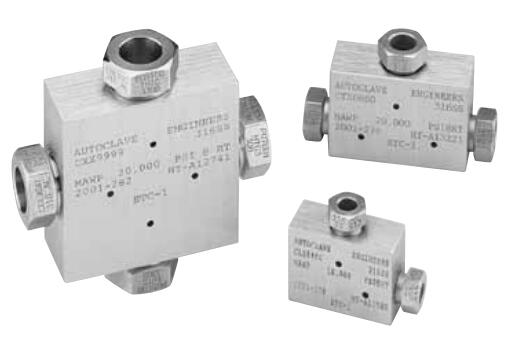

Parker Autoclave's SF Series are medium pressure cone and thread fittings
Cone and Thread Fittings, 20,000 PSI - SF Series

Parker Autoclave's SF Series are medium pressure cone and thread fittings for use in a variety of applications with 1/4" to 1-1/2" Parker Autoclave Tubing. These cone and thread fittings are rated to 20,000 psi (1379 bar). Parker Autoclave's SF Series medium pressure cone and thread fittings are designed for use with 20SM Series medium pressure valves and Parker Autoclave medium pressure tubing. These cone and thread fittings are rated up to 20,000 PSI (1379 BAR). One of the unique features is that these fittings incorporate connections with orifices sized to match the high-flow Parker Autoclave 20SC Series valves. The installer can obtain a higher flow rate with these matched valves, fittings and tubing

市場：
- 石油和天然氣
- 石化
- 研究
- 化學

特性/優點：
- 工作壓力
高達20,000 psi (1379 bar) - 設計了錐形和螺紋連接允許更大的孔徑增加流速
- 管道尺寸為 1/4"、3/8"、9/16"、3/4" 和 1-1/2"
- 用于安全和泄漏檢測的連接泄水孔
- 接頭由冷加工 316 不銹鋼制成
- 工作溫度從 -423oF (-252oC) 到 1200oF (649oC)
- 可用于特殊材料

應用：
- 高壓測試面板
- 海上撬板
- 化學品注入
- 高壓氣體系統

Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical


Features/Benefits:
- Working pressures to 20,000 psi (1379 bar)
- Coned-and-threaded connection designed to permit larger bore sizes increased flow rates
- Tubing sizes are 1/4", 3/8", 9/16", 3/4", and 1-1/2"
- Connection weep holes for safety and leak detection
- Fittings manufactured from cold worked 316 stainless steel
- Operating temperatures from -423oF (-252oC ) to 1200oF (649oC)
- Available in special materials

Applications:
- High Pressure Test Panels
- Offshore Skid Panels
- Chemical Injection
- High Pressure Gas Systems

Technical Specifications

Cone and Thread Fittings, 20,000 PSI - SF Series 型號
