Parker's 20,000 PSI Hi-Pro series Parker 手動球閥 - Parker Ball Valves
20,000 PSI Ball Valve - Hi-Pro Series

派克Hi-Pro 球閥是一種兩件式雙向手動球閥，設計用于從 3,600 PSI (247 bar) 到 20,000 PSI (1379 bar) 額定值的冷工作壓力過程控制應用，提供連續可重復的性能。產品概述 Parker 的 20,000 PSI Hi-Pro 系列球閥適用于石油、天然氣和過程控制行業的廣泛應用，冷加工工作壓力從 3600 PSI (247 bar) 到 20,000 PSI (1379 bar)。派克可以提供采用一系列耐腐蝕合金制成的這些球閥，這使得它們適用于各種環境。這些球閥已經在世界各地的許多大型項目中指定使用，經過現場驗證并按照 Parker 質量標準制造。所有 20, 000 PSI Hi-Pro 系列球閥旨在確保 100% 可重復的氣密關閉，并具有 Tru-Loc 壓蓋調節器，可選擇石墨油或 PTFE 填料。它們還提供 PTFE 或 PEEK 閥座材料的選擇。提供可選的支架和面板安裝版本。

20,000 PSI Ball Valve - Hi-Pro Series

市場：
- 海上石油和天然氣
- 陸上石油和天然氣
- 石化
- 化學

特性/優點：
- 壓蓋調節器上的 Tru-Loc? 防振鎖定系統可實現 100% 安全
- 熱碼可追溯且 NACE 兼容材料
- 派克端系列連接（雙套圈、單套圈、Phastite、錐體和螺紋）
- 耐腐蝕合金

應用：
- 儀表管線
- 液壓動力裝置
- 上部臍帶終端裝置 它們還提供 PTFE 或 PEEK 閥座材料的選擇。提供可選的支架和面板安裝版本。

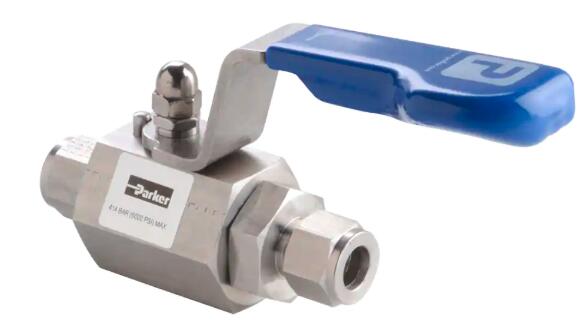

Parker's Hi-Pro ball valve is a two piece bi-directional manual ball valve designed for cold working pressure process control applications from 3,600 PSI (247 bar) up to 20,000 PSI (1379 bar) rating, giving continuous repeatable performance.

Parker's 20,000 PSI Hi-Pro series ball valves are suitable for a wide range of applications in the oil, gas and process control industries, with cold working operating pressures from 3600 PSI (247 bar) up to 20,000 PSI (1379 bar). Parker can offer these ball valves in a range of corrosion resistant alloy, which makes them suitable for a range of environments. Already specified on many of the large projects around the world, these ball valves are field proven and manufactured to Parker quality standards.

All 20,000 PSI Hi-Pro series ball valves are designed to ensure 100% repeatable bubble-tight shut-off and feature a Tru-Loc? gland adjuster, with a choice of Graphoil or PTFE packing. They also offer a choice of PTFE or PEEK seat material.

Optional bracket and panel mounting versions are available.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical

Features/Benefits:
- Tru-Loc? anti-vibration locking system on gland adjuster for 100% security
- Heat code traceable and NACE compatible materials
- Range of Parker end connections (double ferrule, single ferrule, Phastite, Cone and Thread)
- Corrosion resistant alloys

Applications:
- Instrumentation lines
- Hydraulic power units
- Topside umbilical termination units

Technical Specifications

20,000 PSI Ball Valve - Hi-Pro Series 型號
