Parker Autoclave's 3B Series ball valves Parker 球閥 - Parker Ball Valves
Ball Valve,3 Way 3B Series - 20,000 PSI

球閥，3 通球閥 3B 系列球閥 - 20,000 PSI | #3B3S10L8球閥

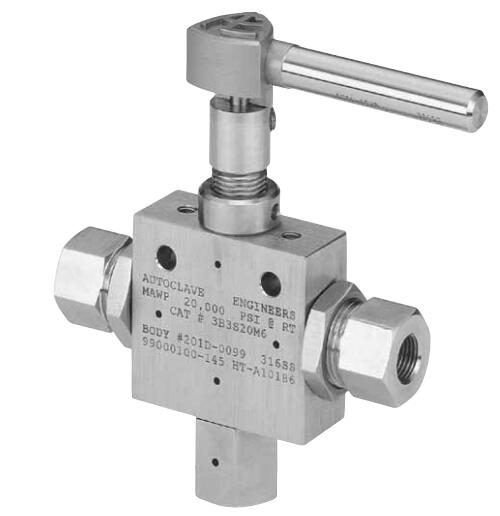

Parker Autoclave 3B Series Ball Valves

Parker Autoclave 的 3B 系列球閥是手動三通閥。這些球閥可在高達 20,000 psi (1,379 bar) 的壓力下工作，并帶有各種端部連接。這些閥門的特點是安裝在耳軸上的閥桿帶有 3/16" 到 1/2" 的球孔。派克 Autoclave 的 3B 系列球閥旨在提供卓越的質量，以在各種閥門類型、尺寸和過程連接中實現最佳性能。這些三通球閥具有一體式耳軸安裝球和閥桿，可消除兩件式設計常見的剪切故障。閥座壓蓋可重新擰緊以延長閥座壽命，低摩擦壓力輔助石墨填充 PTFE 閥桿密封可降低驅動扭矩并增加循環壽命。這些閥門具有全端口流路，可最大限度地減少壓降，并配有 PEEK 閥座，以確保出色的耐化學性、耐熱性和耐磨性。

作為標準配置，這些三通高壓球閥由冷加工 316 不銹鋼制成，能夠在高達 20,000 PSI (1,379 bar) 的壓力下運行。接液部件也有其他材料。閥門配有 Viton O 型圈，額定工作溫度范圍為 -17.8 至 204°C（0 至 400°F）。可選擇使用其他 O 形圈材料，以將上限擴展至 260?C (500?F)。

Ball Valve,3 Way 3B Series - 20,000 PSI

市場：
- 石油和天然氣
- 石化
- 化工
- 研究

特點/優點：
- 一體式、耳軸安裝式、閥桿設計消除了剪切破壞并減少了側向載荷的影響。
- 可重新擰緊的閥座密封套，延長閥座使用壽命。
- 填充碳的 PEEK 閥座具有出色的耐化學性、耐熱性和耐磨性。
- 全端口流路將壓降降至最低。
- 316 冷加工不銹鋼結構。
- 低摩擦壓力輔助石墨填充聚四氟乙烯閥桿密封可延長循環壽命并降低操作扭矩。
- 從打開到關閉的四分之一圈，帶正止擋。
- Viton O 型圈，可在 0°F (-17.8°C) 至 400°F (204°C) 的溫度范圍內運行。
- 可選的O 形圈可用于高溫應用。
- 可選的接液材料。
- 有多種管子和管端配件可供選擇。
- 電動和氣動執行器選項。

應用：
- 高壓滑板
- 化學品注入
- 特種高壓氣體系統
- 研究系統
- 高壓測試板

Parker Autoclave's 3B Series Ball Valves are manual 3 way valves. These ball valves operate up to 20,000 psi (1,379 bar) with a variety of end connections. These valves feature a trunnion mounted stem with ball orifices from 3/16" to 1/2".

Parker Autoclave's 3B Series ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. These 3 way ball valves feature an integral one-piece trunnion mounted ball and stem that eliminates the shear failure common to two-piece designs. The seat glands are re-torqueable for longer seat life, and the low friction pressure-assisted graphite filled PTFE stem seal reduces actuation torque and increases cycle life. The valves have a full port flow path that minimizes pressure drop, and are fitted with PEEK seats to ensure excellent chemical, heat and wear resistance.

As standard, these 3 way high pressure ball valves are manufactured from cold worked 316 stainless steel and are capable of operating at up to 20,000 PSI (1,379 bar). The wetted parts are also available in other materials. The valves are fitted with Viton O-rings, rated for operation over a temperature range of -17.8 to 204?C (0 to 400?F). Other O-ring materials are optionally available to extend the upper limit to 260?C (500 F).

Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research


Features/Benefits:
- One-piece, trunnion mounted style, stem design eliminates shear failure and reduces the effects of side loading.
- Re-torqueable seat glands for longer seat life.
- Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
- Full-port flow path minimizes pressure drop.
- 316 cold worked stainless steel construction.
- Low friction pressure assisted graphite filled Teflon stem seal increases cycle life and reduces operating torque.
- Quarter turn from open to close with positive stop.
- Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C).
- Optional o-rings available for high-temperature applications.
- Optional wetted materials.
- Wide selection of tube and pipe end fittings available.
- Electric and pneumatic actuator options.

Applications:
- High Pressure Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems
- High Pressure Test Panels

Technical Specifications

Ball Valve,3 Way 3B Series - 20,000 PSI 型號
