Parker Autoclave's QS Series are a single ferrule style compression sleeve
Parker Autoclave QS系列 15,000 PSI單卡套接頭 Parker Fittings接頭 - Tube Fittings

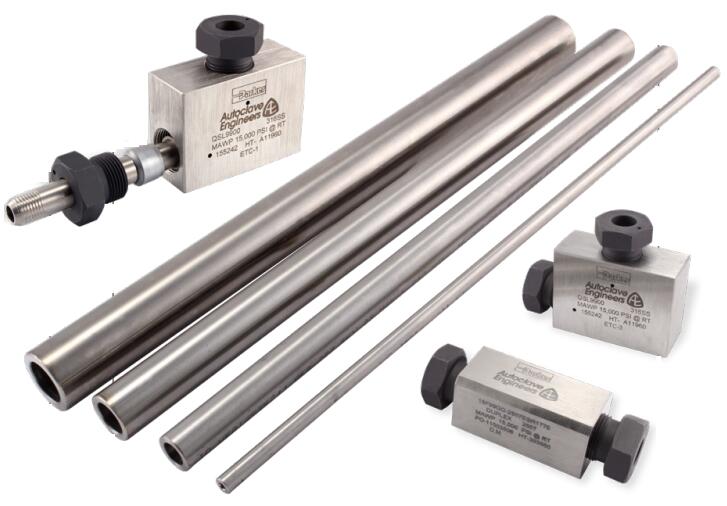

Compression Fitting, 15,000 PSI - QS Series

派克Parker AutoclaveQS系列是單卡套接頭設計。這些獨特的接頭能夠在各種應用中以15,000 psi（1034 bar）的壓力運行，管徑范圍為1/4“至1”。派克Parker AutoclaveQS系列使用單卡套接頭連接。與傳統的錐形和螺紋安裝相比，這種單套壓縮套筒連接方式可以快速，輕松地進行裝配，并減少至少50％的安裝時間。派克高壓滅菌器的QS配件的額定值高達15,000 PSI（1034 BAR）。這些管件具有更大孔口的改進的壓縮連接，具有出色的流動能力。使用獨特的二硫化鉬涂層螺母，安裝人員將享受到降低的化妝扭矩。

Parker Autoclave's QS Series are a single ferrule style compression sleeve

Compression Fitting, 15,000 PSI - QS Series

Parker Autoclave's QS Series are a single ferrule style compression sleeve design. These unique fittings are capable of operating in various applications to 15,000 psi (1034 bar) and range in size from 1/4" to 1" tube size. Parker Autoclave's QS Series uses a compressor sleeve connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reduces installation times by at least 50%, as compared to traditional coned and thread installation. Parker Autoclave's QS fittings are rated up to 15,000 PSI (1034 BAR). These tube fittings feature improved compression connections with larger orifices for excellent flow capabilities. Installers will enjoy the reduced make-up torque with the unique, molybdenum disulfide coated nuts.

市場：
- 石油和天然氣
- 石化
- 研究

功能/優點：
- 單插芯壓縮套。
- 快速簡便的連接構成
- 連接泄油孔，用于安全和檢漏
- 管道尺寸為1/4“，3/8”，9/16“，3/4”和1“
- 接頭是由冷加工316不銹鋼制成的
- 二硫化鉬涂層的壓蓋螺母以防止磨損
- 工作溫度低于0°F（-17.8°C）至650°F（343°C）

應用：
- 化學注入面板
- 海底井口控制
- 氮氣井管道
- FRAC系統

Markets:
- Oil and Gas
- Petrochemical
- Research


Features/Benefits:
- Single-ferrule compression sleeve.
- Fast easy make-up of connection
- Connection weep holes for safety and leak detection
- Tubing sizes are 1/4", 3/8", 9/16", 3/4", and 1"
- Fittings manufactured from cold worked 316 stainless steel
- Molybdenum disulfide-coated gland nuts to prevent galling
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)

Applications:
- Chemical Injection Panels
- Subsea Wellhead Control
- Nitrogen Well Pipeline
- FRAC systems

Technical Specifications

Compression Fitting, 15,000 PSI - QS Series 型號
