派克 Autoclave VM 系列高壓針閥 100,000 PSI | #60VM4072
Needle Valve, High Presssure - VM Series 100,000 PSI | #60VM4072

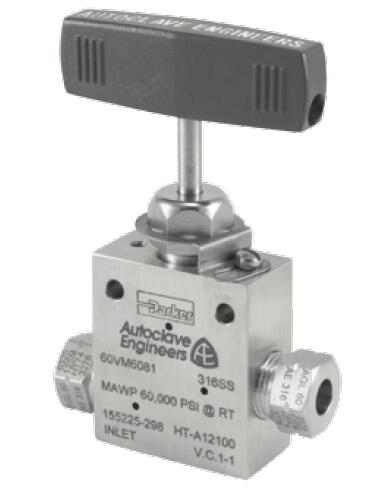

Parker Autoclave 100VM Series needle valves
Parker 針閥 - Parker Needle Valves - Needle Valve, High Presssure - VM Series 100,000 PSI
派克 Autoclave 100VM 系列針閥采用非旋轉升桿設計，工作壓力為 100,000 psi (6895 bar)，帶有 1/4” 至 9/16”” 端接。這些閥門有 316 不銹鋼材質和兩種閥體樣式。
派克 Autoclave 100VM 系列針閥采用非旋轉升降桿設計，工作壓力高達 100,000 psi (6895 bar)。管道尺寸范圍從 1/4” 到 9/16”。管道連接采用派克 Autoclave 錐體和螺紋設計。帶有 PTFE 填料的標準高壓針閥可以在 0°F (-17.8°C) 至 450°F (232°C) 和 230°F (110°C) 的溫度范圍內使用尼龍皮革填料。這些高壓針閥在螺紋下方具有可調節填料，以防止介質接觸動力螺紋，并避免在驅動過程中引起磨損。
這些閥具有許多特點，可在各種應用中提供可靠且無故障的服務。
Parker Autoclave Needle Valve, High Presssure - VM Series 100,000 PSI
市場：
- 石油和天然氣
- 石化
特性/優勢：
- 管道尺寸為 1/4“ 至 9/16”。
- 非旋轉閥桿可防止閥桿/閥座磨損。
- 上升桿/棒材主體設計。
- 金屬對金屬閥座可實現氣密關閉、更長的閥桿/閥座在磨料流中的使用壽命、更高的重復開/關循環的耐用性和出色的耐腐蝕性。
- 為了可靠的閥桿和閥體密封，閥門配有聚四氟乙烯封裝填料。
- 選擇了閥桿套筒和填料壓蓋材料以延長螺紋循環壽命并降低手柄扭矩。
- 可選擇V 形或調節閥桿尖端。
- 三種車身模式的選擇
應用：
- 高壓滑板
- 高壓流體處理系統
- 研究系統
Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, with working pressures to 100,000 psi (6895 bar) with ?” to 9/16” ” end connections. These valves are available in 316 Stainless Steel and two body patterns.
Parker Autoclave's 100VM Series needle valves are a non-rotating rising stem design, working pressures to 100,000 psi (6895 bar). The tubing sizes range from ?” to 9/16”. Tubing connections utilize the Parker Autoclave cone and thread design. Standard high pressure needle valves with PTFE packing may be operated from 0°F (-17.8°C) to 450°F (232°C) and to 230°F (110°C) with nylon-leather packing. These high pressure needle valves have adjustable packing below the threads to eliminate the media from contacting the power threads, and causing galling during actuation
Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Markets:
- Oil and Gas
- Petrochemical
Features/Benefits:
- Tubing sizes are 1/4 “ to 9/16”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- For dependable stem and body sealing , valves are furnished with PTFE encapsulated packing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Choice of three body patterns
Applications:
- High Pressure Skid Panels
- High Pressure Fluid Handling Systems
- Research Systems
Technical Specifications
| Maximum Operating Pressure: |
2068, 2760, 4137, 6895 bar |
| Tube Outside Diameter: |
1/4, 3/8, 9/16, 5/16 , 3/8 inch |
| Connection Type: |
F250C , F375C, F562C , F250C, F375C , F562C, F562C40, F312C150 |
| Bore Diameter: |
0.094, 0.125, 0.094 , 0.109, 0.062, 0.078 inch, 2.39 , 3.18 , 2.77 , 1.57 , 1.98 mm |
Needle Valve, High Presssure - VM Series 100,000 PSI 型號
Part |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
| 100VM4071 |
100,000 |
6.35 mm |
VEE |
2-Way Straight |
| 100VM4072 |
100,000 |
6.35 mm |
VEE |
2-Way Angle |
| 100VM4073 |
100,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM4872 |
100,000 |
6.35 mm |
VEE |
2-Way Angle / Replacement Seat |
| 100VM5071 |
100,000 |
7.93 mm |
VEE |
2-Way Straight |
| 100VM5072 |
100,000 |
7.93 mm |
VEE |
2-Way Angle |
| 100VM5073 |
100,000 |
7.93 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM5872 |
100,000 |
7.93 mm |
VEE |
2-Way Angle / Replacement Seat |
| 100VM6071 |
100,000 |
9.53 mm |
VEE |
2-Way Straight |
| 100VM6072 |
100,000 |
9.53 mm |
VEE |
2-Way Angle |
| 100VM6073 |
100,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 100VM6872 |
100,000 |
9.53 mm |
VEE |
2-Way Angle / Replacement Seat |
| 30VM4071 |
30,000 |
6.35 mm |
VEE |
2-Way Straight |
| 30VM4072 |
30,000 |
6.35 mm |
VEE |
2-Way Angle |
| 30VM4073 |
30,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM4074 |
30,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM4075 |
30,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM4081 |
30,000 |
6.35 mm |
REG |
2-Way Straight |
| 30VM4082 |
30,000 |
6.35 mm |
REG |
2-Way Angle |
| 30VM4083 |
30,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 30VM4084 |
30,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 30VM4085 |
30,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM4872 |
30,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM4882 |
30,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 30VM6071 |
30,000 |
9.53 mm |
VEE |
2-Way Straight |
| 30VM6072 |
30,000 |
9.53 mm |
VEE |
2-Way Angle |
| 30VM6073 |
30,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM6074 |
30,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM6075 |
30,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM6081 |
30,000 |
9.53 mm |
REG |
2-Way Straight |
| 30VM6082 |
30,000 |
9.53 mm |
REG |
2-Way Angle |
| 30VM6083 |
30,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 30VM6084 |
30,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 30VM6085 |
30,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM6872 |
30,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM6882 |
30,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 30VM9071 |
30,000 |
14.29 mm |
VEE |
2-Way Straight |
| 30VM9072 |
30,000 |
14.29 mm |
VEE |
2-Way Angle |
| 30VM9073 |
30,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
| 30VM9074 |
30,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
| 30VM9075 |
30,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 30VM9081 |
30,000 |
14.29 mm |
REG |
2-Way Straight |
| 30VM9082 |
30,000 |
14.29 mm |
REG |
2-Way Angle |
| 30VM9083 |
30,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
| 30VM9084 |
30,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
| 30VM9085 |
30,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 30VM9872 |
30,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 30VM9882 |
30,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
| 40VM9071 |
40,000 |
14.29 mm |
VEE |
2-Way Straight |
| 40VM9072 |
40,000 |
14.29 mm |
VEE |
2-Way Angle |
| 40VM9075 |
40,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 40VM9081 |
40,000 |
14.29 mm |
REG |
2-Way Straight |
| 40VM9082 |
40,000 |
14.29 mm |
REG |
2-Way Angle |
| 40VM9085 |
40,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM4071 |
60,000 |
6.35 mm |
VEE |
2-Way Straight |
| 60VM4072 |
60,000 |
6.35 mm |
VEE |
2-Way Angle |
| 60VM4073 |
60,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM4074 |
60,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM4075 |
60,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM4081 |
60,000 |
6.35 mm |
REG |
2-Way Straight |
| 60VM4082 |
60,000 |
6.35 mm |
REG |
2-Way Angle |
| 60VM4083 |
60,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 60VM4084 |
60,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 60VM4085 |
60,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM4872 |
60,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM4882 |
60,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 60VM6071 |
60,000 |
9.53 mm |
VEE |
2-Way Straight |
| 60VM6072 |
60,000 |
9.53 mm |
VEE |
2-Way Angle |
| 60VM6073 |
60,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM6074 |
60,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM6075 |
60,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM6081 |
60,000 |
9.53 mm |
REG |
2-Way Straight |
| 60VM6082 |
60,000 |
9.53 mm |
REG |
2-Way Angle |
| 60VM6083 |
60,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 60VM6084 |
60,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 60VM6085 |
60,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM6872 |
60,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM6882 |
60,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 60VM9071 |
60,000 |
14.29 mm |
VEE |
2-Way Straight |
| 60VM9072 |
60,000 |
14.29 mm |
VEE |
2-Way Angle |
| 60VM9073 |
60,000 |
14.29 mm |
VEE |
3-Way / 2 on Pressure |
| 60VM9074 |
60,000 |
14.29 mm |
VEE |
3-Way / 1 on Pressure |
| 60VM9075 |
60,000 |
14.29 mm |
VEE |
3-Way / 2-Stem Manifold |
| 60VM9081 |
60,000 |
14.29 mm |
REG |
2-Way Straight |
| 60VM9082 |
60,000 |
14.29 mm |
REG |
2-Way Angle |
| 60VM9083 |
60,000 |
14.29 mm |
REG |
3-Way / 2 on Pressure |
| 60VM9084 |
60,000 |
14.29 mm |
REG |
3-Way / 1 on Pressure |
| 60VM9085 |
60,000 |
14.29 mm |
REG |
3-Way / 2-Stem Manifold |
| 60VM9872 |
60,000 |
14.29 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 60VM9882 |
60,000 |
14.29 mm |
REG |
2-Way Angle / Replaceable Seat |
|
