Parker 提升式旋塞閥 - Rising Plug Valve, 10,000 PSI - H Series
派克Parker提升式旋塞閥，10000 PSI-H 系列 - Hand valves, Rising Plug – HRPV Series

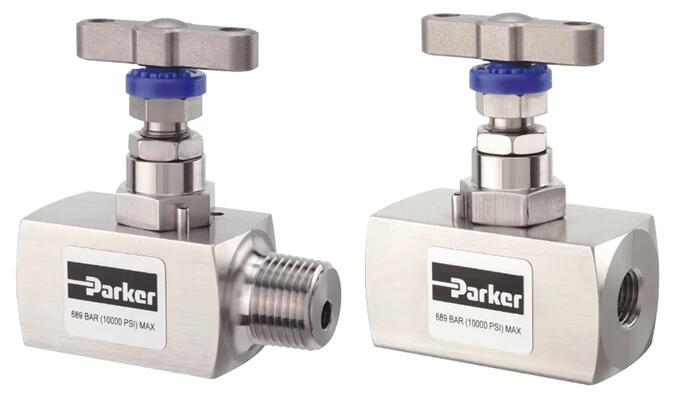

Parker bar stock rising plug hand valves

派克Parker這些高質量、高性能、低扭矩提升插頭軟閥座閥門被設計用于油氣行業經常出現高污染液體的工藝中。派克H系列提升式旋塞閥針對高污染流體設計，有高穩定性，常應用于油氣處理設施。該閥具有直通流型，并且標配有軟PEEK閥座和PTFE壓蓋填料.由 316 不銹鋼作為標配，適用于10000 PSI（689bar）壓力，工作溫度0?200℃（32?392°F）。閥桿配備有用于防漏氣的止回閥，并且壓蓋可從外部調節.有兩種模式可以選擇，一種是"1/4"和"1/2"母 NPT 連接，另一種由"1/2"公母 NPT 連接.也可用于多端口測量?jī)x式結構，具有"1/2"公 NPT 入口連接和三個1/2“母 NPT 出口連接。Parker's bar stock rising plug hand valves with soft seat tip and a straight through flow path, specifically designed for isolation and regulation of contaminated media. Pressure rating up to 10,000 psi (689 bar).

PARKER Rising Plug Valve, 10,000 PSI - H Series

市場:
- 海上油氣
- 岸上油氣
- 石油化工
- 化工行業

特點/優點:
- 高生命周期持續節能
- 與傳統閥門相比重量減輕 30%
- 低工作轉矩
- 集成端接

應用:
- 儀表線
- 液壓動力裝置
- 頂端控制終端單元

These unique, high quality, high performance, low torque rising plug soft-seated valves have been specifically designed to perform with fluids containing high levels of contamination frequently found in oil and gas processing facilities.

The Parker rising plug valve offers complete customer system compatibility that reduces installation time and potential leak paths. The rising plug valve operates a straight through flow path which is ideal for handling viscous fluids. The soft seat deign is tolerant of small particulates found in the media which ensures leak free operation once valve is closed - vital for system safety. Further safety features include the multi turn open and close function, with gradual opening ensuring safer operation that avoids sudden pressure surges, ultimately protecting the integrity of the system. The rising plug valve is rated to 10,000 PSI as standard, with range of end different connections, including Parker's two and single ferrule fittings. Retrofitting anti tamper devices, hand and locking wheels can all be achieved in the field.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Refining
- Petrochemical
- Chemical

Features / Benefits:
- Straight through flow path
- Soft seat design ensures leak free operation
- Gradual opening avoids pressure surges
- Integral ended connections saves installation time

Applications
- Lubrication skids
- Gas cylinder filling stations
- Instrumentation isolation lines

Technical Specifications

Rising Plug Valve, 10,000 PSI - H Series 型號
