Parker high performance non-return valves

Parker 止回閥 - Parker Check Valves

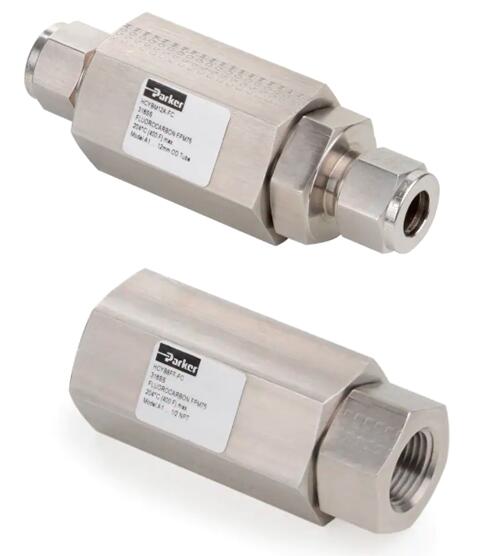

Non Return Check Valve (10,000 PSI) - Hi Check Series

Parker Hi-Check series of non-return valves - 派克止回止回閥 (10,000 PSI) – HI 止回閥系列
派克止回閥 (10,000 PSI) - Hi Check 系列

派克的高性能止回閥可為用戶提供高達 10,000 psi/689 bar 的冷工作壓力額定值，最大開啟壓力為 10 psi。Parker 的 Hi Check 系列高性能止回閥設計用于過程儀表應用中流體和氣體的單向流動控制。有兩種單向閥型號可供選擇，冷工作壓力為 10000 PSI (689 bar) 和 6000 PSI (414 bar)。兩個止回閥的開啟（或“開啟”）壓力均為 10 PSI (0.7 bar)。這些堅固的止回閥采用兩件式金屬閥座設計，可最大限度地減少泄漏風險。Parker 止回閥可選擇一體式外螺紋或內螺紋 NPT，或單或雙套圈壓縮式端部，壓縮端使用戶無需使用錐形螺紋和螺紋密封劑 - 進一步減少潛在泄漏的數量路徑并避免系統污染問題。

入口和出口連接范圍廣泛，包括 1/4"、3/8" 和 1/2" 的英制尺寸，以及 6 mm、10 mm 和 12 mm 的公制尺寸。止回閥旨在滿足 ANSI/ASME B.16.34 的壓力和溫度要求，但受閥座材料的限制。可提供符合 NACE 的版本。

PARKER Non Return Check Valve (10,000 PSI) - Hi Check Series

特點和優點：
ANSI/ASME B.16.34
熱碼可追溯

Hi-Check 止回閥
對于需要單向流量控制的過程儀表應用，我們推薦派克的 Hi-Check 系列止回閥。這些高性能止回閥提供高達 689 bar/10,000 psi 的最大冷作壓力額定值，適用于化工、石化以及石油和天然氣海上工業中的流體和氣體應用。

Parker 堅固的 Hi-check 閥采用兩件式閥體設計，可最大限度地降低泄漏風險。它們還提供外螺紋和內螺紋壓縮端的選擇，以消除對錐形螺紋和密封劑的需求。因此，這些高性能止回閥進一步減少了潛在的泄漏，同時避免了系統污染并降低了安裝成本。

派克的高性能止回閥
Parker 的高性能止回閥采用 316 不銹鋼作為標準制造，可為您的行業帶來諸多好處。下面我們詳細介紹了他們的 Hi-check 止回閥的主要特點和優點：

自定心密封
低噪音排放
堅固的設計
零線圈限位檢查彈簧
環保密封連接器螺紋
入口和出口連接的綜合選擇
ANSI/ASME B.16.34 壓力和溫度合規性
派克的所有高性能止回閥都經過工廠完全靜壓測試和熱可追蹤。此外，還有多種 O 形圈材料可供選擇，包括 FP75 和 V1238-05 氟碳橡膠，用于高壓應用的爆炸減壓和抗擠壓。為了進一步定制，Hi-check 止回閥的閥座材料也有多種材料，如丁腈和 EPR。

閥門
C系列止回閥
CO系列止回閥
Hi-Check 止回閥
派克 Veriflo 止回閥

Parker's high performance non-return valves can offer the user a cold working pressure rating up to 10,000 psi/689 bar maximum, with a cracking pressure of 10 psi maximum. Parker's Hi Check series high performance non-return valves are designed for unidirectional flow control of fluids and gases in process instrumentation applications. There is a choice of two check valve models, with cold working pressures of 10000 PSI (689 bar) and 6000 PSI (414 bar). Both check valves have an opening (or ‘cracking') pressure of 10 PSI (0.7 bar). These robust check valves feature a two-piece metal seated body design to minimise any risk of leakage. The Parker check valves are available with a choice of integral male or female NPT, or single- or two-ferrule compression style ends, the compression ends enable users to eliminate the use of taper threads and thread sealant – further reducing the number of potential leakage paths and avoiding system contamination problems. There is a comprehensive range of inlet and outlet connections, covering imperial sizes of 1/4", 3/8” and 1/2", and metric sizes of 6 mm, 10 mm and 12 mm. The check valves are designed to meet the pressure and temperature requirements of ANSI/ASME B.16.34, as limited by the seat materials. NACE compliant versions are available. As standard, Hi Check valves are manufactured from 316 stainless steel, with duplex and monel versions optionally available. For maximum applications flexibility, there is an extensive choice of O-ring materials, including FPM75 and V1238-95 fluorocarbon rubber, Buna-N, ethylene propylene rubber and highly fluorinated fluorocarbon rubber.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation

Features/Benefits:
- ANSI/ASME B.16.34
- Heat code traceable

Applications:
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment

Technical Specifications

Non Return Check Valve (10,000 PSI) - Hi Check Series 型號
