Parker HYNV series outside screw and yoke needle valves

Parker 針閥 - Parker Needle Valves
Parker Needle Valve (6,000 PSI) - HYNV Series外螺紋和軛式球形針閥

Parker HYNV series outside screw and yoke needle valves
針閥 (6,000 PSI) - HYNV 系列 | #HYNVS4FF

派克外螺紋和軛式球形針閥設計用于主要隔離應用，工作壓力高達 6000 psi (414 bar)，可選 10000 psi (689 bar) 額定值，適用于石油和天然氣加工行業的小口徑儀表應用。派克的 HYNV 系列外螺紋和軛式針閥設計用于工作壓力高達 6000 psi (414 bar) 和可選的 10000 psi (689 bar) 額定值的初級隔離應用。派克針閥配有標準石墨壓蓋填料，自定心非旋轉尖端提供氣密密封。對于氣體應用，可提供軟頭可選座。為所有類型的安裝提供各種連接器端，包括多端口根/主隔離服務。還提供 NACE 合規性和氧氣清潔以及廣泛的材料清單。

Parker HYNV series outside screw and yoke needle valves
PARKER Needle Valve (6,000 PSI) - HYNV Series

市場：
- 海上
石油和天然氣
- 陸上石油和天然氣- 石化
- 化工
- 發電

特點/優勢：
- 符合 NACE
- 100% 可重復的氣密關閉
- 可追溯加熱代碼
- 防火符合 BS 6755 第 2 部分和 API 607 標準，采用石墨填料。

應用：
- 過程到儀器接口
- 壓力和流量測量
- 潤滑撬
- 水處理
- 化學品注入撬
- 用于井口控制的液壓系統
- 緊急關閉
- 泵組
- 氣體增壓系統
- 測試設備

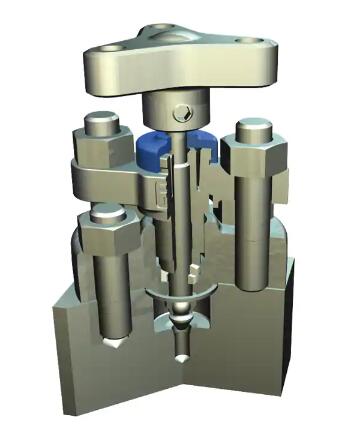

Parker HYNV series outside screw and yoke needle valves : Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry .Parker's HYNV series outside screw and yoke needle valves are designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating. The Parker needle valve is supplied complete with standard graphite gland packing and the self centering non rotational tip gives bubble tight sealing. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations including multi-ported root/primary isolate service. NACE compliance and oxygen clean are also available along with an extensive list of materials.

Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation

Features/Benefits:
- NACE compliant
- 100% repeatable bubble-tight shut-off
- Heat code traceable
- Firesafe to BS 6755 Part 2 and API 607 standard with graphite packing.

Applications:
- Process to instrument interface
- Pressure & Flow measurement
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment

Technical Specifications

Needle Valve (6,000 PSI) - HYNV Series 型號
