UHP PFA氣動隔膜閥（1英寸）2通閥– PV-12系列
Parker PFA閥 - Parker PFA Valves

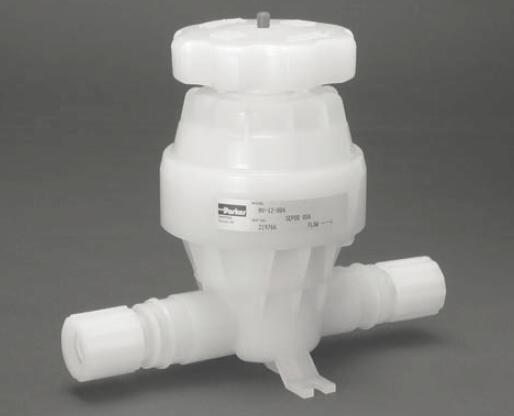

UHP PFA Air-operated Diaphragm (1 inch) 2 Way Valve – PV-12 Series

PV-12系列PFA隔膜閥具有很高的泄漏完整性和出色的耐腐蝕性。它非常適合用于超高純度UHP和腐蝕性流體應用。提供2通和3通配置。PV-12系列是一種1英寸PFA氣動隔膜閥，設計用于超高純度（UHP）以及腐蝕性氣體和液體處理系統，包括那些在半導體制造操作中使用的系統。該閥有2通和3通配置。三向配置具有多位置安裝基座，可提供更大的安裝靈活性并減少連接器裝配，在可工作空間有限的區域中具有優勢。

PV-12系列具有模制的PFA閥體，并具有精密加工的密封區域。它采用了含氟聚合物涂層的不銹鋼彈簧，可減少腐蝕性環境的影響，并確保與各種腐蝕性工藝介質的兼容性。該閥還配備了一件式改良PTFE隔膜，與傳統的PTFE相比，具有更長的循環壽命。根據客戶要求，PV-12系列閥門可以裝配多種口徑配置，包括Parflare和Parbond管件。Parflare和Parbond配件都減少了組裝時間和安裝成本，同時確保了密封性，以確保清潔度至關重要的應用中的可靠性。

PV-12系列閥門的榫槽密封確保了膜片與閥體之間的可靠密封，從而實現了出色的泄漏完整性，較低的更換成本以及過程介質與執行器的隔離。該系列的全1英寸節流孔在緊湊的包裝中提供了最大的流量能力（帶Parbond的PV-12最高為15.7 Cv）。流量由配置和終端類型決定。該閥的雙向額定壓力為100 psig，驅動壓力范圍為60 – 100 psig。

PV-12系列具有潛水選項，可將組件與外部環境隔離，并允許閥門在潮濕或氣體腐蝕性環境中運行時保持功能。

UHP PFA Air-operated Diaphragm (1 inch) 2 Way Valve – PV-12 Series

The PV-12 Series PFA Diaphragm Valve offers high leak integrity and exceptional corrosion resistance. It is ideally suited for use in ultra-high purity (UHP) and aggressive fluid applications. Available in 2-way and 3-way configurations.

The PV-12 Series is a 1 inch PFA air-operated diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including those used in semiconductor manufacturing operations. The valve is available in 2-way and 3-way configurations. The 3-way configurations have a multi-position mounting base, which allows for more mounting flexibility and connector fitting reduction, making the advantageous in areas where workable space is limited.

The PV-12 Series features a molded PFA body with precision-machined sealing areas. It utilizes a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and ensures compatibility with a wide range of aggressive process media. The valve is also equipped with a one-piece modified PTFE diaphragm, which provides higher cycle life when compared to conventional PTFE. Depending on customer requirements, the PV-12 Series valve can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings. Both Parflare and Parbond fittings reduce assembly time and installation costs, while ensuring a leak-tight seal for reliability in applications where cleanliness is critical.

The tongue and groove seal of PV-12 Series valves ensures a positive diaphragm to body seal, resulting in superior leak integrity, lower replacement costs, and isolation of process media from the actuator. The series' full 1 inch orifice offers maximum flow capability in a compact package (up to 15.7 C?v for PV-12 with Parbond). Flow capacities are dictated by configuration and end type. The valve is bidirectionally pressure rated at 100 psig and has an actuation pressure range from 60 – 100 psig.

The PV-12 Series is available with a submergible option, which isolates components from the external environment and allows the valve to remain functional while operating in wet or gaseous corrosive environments.

市場：
- 半導體
- 分析實驗室
- 制藥
- BioPharm
- 航空航天
- 工業

功能/優點：
- 出色的泄漏完整性
- 改性的PTFE膜片和含氟聚合物涂層的不銹鋼彈簧可提供較高的循環壽命并具有出色的耐腐蝕性
- 配備Viton?氟彈性體密封件
- 2通或3通方式配置
- 可以裝配各種口徑配置，包括Parflare和Parbond管配件
- 驅動壓力范圍：60至100 psig
- 完整的1英寸孔在緊湊的包裝中提供了最大的流量
- 雙向額定壓力高達100 psig
- 環境溫度范圍：0°F至+ 150°F（-17°C至+ 66°C）
- 流體溫度范圍：0°F到+ 266°F（-17°C到+ 130°C）

應用：
- 腐蝕性和特種氣體
- 半導體工具
- 工具連接件
- 閥箱（VMB）

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Equipped with Viton? Fluoroelastomer seals
- Available in 2-way or 3-way configuration
- Can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings
- Actuation pressure range: 60 to 100 psig
- Full 1 inch orifice provides maximum flow capability in a compact package
- Bidirectionally pressure rated up to 100 psig
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)

Technical Specifications

UHP PFA Air-operated Diaphragm (1 inch) 2 Way Valve – PV-12 Series 型號
