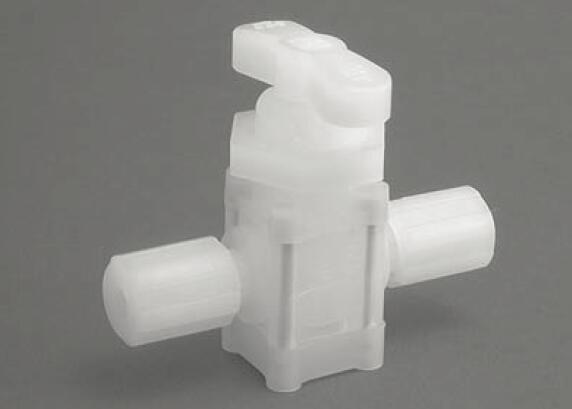

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series

MV-10系列PFA手動閥具有很高的泄漏完整性和出色的耐腐蝕性。它具有三通配置，專為超高純度UHP和腐蝕性流體應用（最高80 psig）而設計。MV-10系列是1/4英寸手動操作的PFA隔膜閥，設計用于超高純度（UHP）和腐蝕性氣體和液體處理系統，包括那些在半導體制造和清潔區域應用中看到的系統。該閥具有三通配置，并采用模制的PFA閥體和精密加工的密封區域，具有出色的泄漏完整性和耐化學性。MV-10系列配備了一件式的改性PTFE隔膜，具有出色的柔韌性和高循環壽命，可降低更換成本并減少停機時間。它還具有含氟聚合物涂層的不銹鋼彈簧，可減少腐蝕性環境的影響，并與多種工藝介質兼容。根據客戶要求，MV-10系列閥門可以安裝多種口徑配置，包括Parflare和Pargrip管件。這些配件減少了組裝和安裝時間，同時確保了密封性，以確保清潔度至關重要的應用中的性能。

MV-10系列PFA閥的嚴格設計可控制閥座和隔膜的應力，從而提供可靠且免維護的使用壽命。它的榫槽密封確保了隔膜與閥體之間的可靠密封，從而最大程度地減少了顆粒截留和隔離工藝介質。該閥具有一個完整的1/4英寸孔口，在最高80 psig的工作壓力下沒有最大流量的限制。流量范圍為0.20 – 0.62，具體取決于端口大小和配置。MV-10是1/4圈操作的，具有可拆卸的手柄，可防止篡改，從而無需單獨的鎖定裝置。

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series

The MV-10 Series PFA Manual Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 80 psig).

The MV-10 Series is a 1/4 inch manually operated PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including those seen in semiconductor manufacturing and clean-area applications. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.

The MV-10 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and high cycle life for lower replacement costs and less downtime. It also features a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, MV-10 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

The MV-10 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove seal ensures a positive diaphragm to body seal, resulting in minimal particle entrapment and isolation of process media. The valve features a full 1/4 inch orifice with no restrictions for maximum flow at working pressures up to 80 psig. Flow capacities range from 0.20 – 0.62 depending on port size and configuration.

The MV-10 is 1/4 turn operated and has a removable handle for tamper resistance, which eliminates the requirement for a separate lockout device.

市場：
- 半導體
- 分析實驗室
- 制藥
- 生物制藥
- 航空航天
- 工業

特性/優點：
- 出色的泄漏完整性
- 改性的PTFE隔膜和涂有氟聚合物的不銹鋼彈簧可提供較高的循環壽命和出色的耐腐蝕性
- 額定壓力范圍為正負，從真空至80 psig
- 3向配置
- 可以配備多種端口配置，包括Parflare和Pargrip管配件
- 1/4圈，可移動手柄，可防止篡改
- 環境溫度范圍：0°F至+ 150°F（-17°C至+ 66° C）
- 流體溫度范圍：0°F至+ 266°F（-17°C至+ 130°C）

應用：
- 腐蝕性和特種氣體
- 半導體工具
- 工具連接
- 閥匯流箱（VMB）

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Pressure rated in both forwards and backwards direction from vacuum to 80 psig
- Available in 3-way configurations
- Can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings
- 1/4 turn operated with removable handle for tamper resistance
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)

Technical Specifications

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series 型號
