UHP PFA手動隔膜（1/2英寸）三通閥– MV-11系列
Parker PFA閥 - Parker PFA Valves

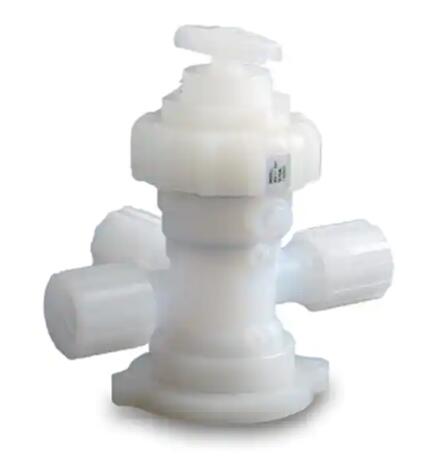

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series

MV-11系列PFA閥具有很高的泄漏完整性和出色的耐腐蝕性。它具有三通配置，專為超高純度UHP和腐蝕性液體應用（最高100 psig）而設計。MV-11系列是1/2英寸PFA手動隔膜閥，設計用于超高純度（UHP）和腐蝕性氣體和液體處理系統，包括半導體制造操作。該閥具有三通配置，并采用模制的PFA閥體和精密加工的密封區域，具有出色的泄漏完整性和耐化學性。使用多位置安裝基座時，三向配置可提高安裝靈活性并減少連接器裝配，從而使其在可使用空間有限的區域具有優勢。MV-11系列PFA閥具有涂有氟聚合物的不銹鋼彈簧，可減少腐蝕性環境的影響，并確保與各種腐蝕性工藝介質的兼容性。該閥還配備了一件式機器改進的PTFE隔膜，與傳統的PTFE相比，它具有更長的循環壽命。為了提高靈活性，MV-11系列閥門可以安裝多種口徑配置，包括Parflare和Pargrip管件。這些配件減少了組裝時間和安裝成本，同時確保了密封性，以確保清潔度至關重要的應用中的可靠性。MV-11系列閥門的榫槽密封確保了膜片與閥體的密封性，從而延長了使用壽命。其完整的1/2英寸孔口在緊湊的包裝中提供了最大的流量。流容量取決于端口大小和配置類型（最高3.7 Cv）。MV-11系列PFA閥門具有潛水選項，可將組件與外部環境隔離，并允許該閥門在潮濕或氣態腐蝕性環境中運行時保持功能。

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series

The MV-11 Series PFA Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 100 psig). The MV-11 Series is a 1/2 inch PFA manual diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including semiconductor manufacturing operations. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance. With a multi-position mounting base, the 3-way configuration allows for increased mounting flexibility and connector fitting reduction, making it advantageous in areas where workable space is limited. The MV-11 Series PFA valve features a Fluoropolymer-coated stainless steel spring which reduces the effects of corrosive environments and ensures compatibility with a wide range of aggressive process media. The valve is also equipped with a one-piece machine modified PTFE diaphragm, which provides higher cycle life when compared to conventional PTFE. For increased flexibility, MV-11 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly time and installation costs, while ensuring a leak-tight seal for reliability in applications where cleanliness is critical. The tongue and groove seal of the MV-11 Series valve ensures a positive diaphragm to body seal, resulting in high cycle life. Its full 1/2 inch orifice offers maximum flow capability in a compact package. Flow capacities vary depending on port size and configuration type (up to 3.7 Cv). The MV-11 Series PFA valve is available with a submergible option, which isolates components from the external environment and allows the valve to remain functional while operating in wet or gaseous corrosive environments.

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series

市場：

- 半導體
- 分析實驗室
- 制藥
- 生物制藥
- 航空航天
- 工業

功能/優點：

- 出色的泄漏完整性
- 改性的PTFE膜片和含氟聚合物涂層的不銹鋼彈簧提供高循環壽命和出色的耐腐蝕性能
- 3通配置可用
- 可以與包括Parflare和Parbond管接頭在內的多種端口配置配合使用
- 提供完整的1/2英寸孔緊湊的包裝中具有最大的流量能力
- 真空至100 psig時 具有全功能- 環境溫度范圍：0°F至+ 150°F（-17°C至+ 66°C）
- 流體溫度范圍：0°F至+266 °F（-17°C到+ 130°C）

應用：
- 腐蝕性和特種氣體
- 半導體工具
- 工具連接器
- 閥歧管（VMB）

Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Available in 3-way configuration
- Can be fitted with a variety of port configurations, including Parflare and Parbond tube fittings
- Full ? inch orifice provides maximum flow capability in a compact package
- Fully functional from vacuum to 100 psig
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)

Technical Specifications

UHP PFA Manual Diaphragm (1/2 inch) 3 Way Valve – MV-11 Series 型號
