Dynalco Instruments & Controls for Rotating Equipment in Demanding Applications
Dynalco Engine Controls & Emissions Controls
發動機控制和排放控制儀表

Dynalco于1968年開始，有三種產品，以及為石油和天然氣工業生產工程解決方案的目標。自那以后的47年里，Dynalco因其在石油和天然氣、化學、電力、海洋和建筑行業使用的高質量的儀器和控制而得到認可。美國Dynalco 公司長期從事往復發動機、壓縮機的狀態監測與故障診斷，有50余年歷史。其產品在國內油田也有10余年的成功應用經驗。如果需要技術咨詢、產品詢價、下單和索要產品技術資料，請與我們聯絡010-84282935。

Our 6 and 24 channel products are ideal for shutdown protection on engines. Our Air/Fuel ratio controls and catalyst monitor provide the latest in emissions controls and monitoring. CSA approvals are standard.

AF-900PC Air/Fuel Ratio Controller控制器 AF900PC Air/Fuel Ratio Controller uses an advanced microprocessor controller to precisely maintain the air/fuel ratio of naturally aspirated and turbocharged carbureted gaseous fueled engines without the use of pneumatic converters	Catalyst Monitor監控器 Catalyst Monitor meets the RICE NESHAP Continuous Parameter Monitoring requirements. It is a low cost solution that comes pre-configured and is quick and easy to install and get running. CSA approved
SC-2124 Scanner/Monitor監控器 SC2124 scanner/controller is a microprocessor based controller that has 24 channels of Analog input, offers Class A, B or C alarms and shutdowns and 4 relay outputs for controls. CSA approved，Model SC-2124 has a large 4x20 character display and accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs	SC-2124M Scanner/Monitor監控器 SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and other analog signals. The large multi-informational display indicates both the value of each channel and any alarm conditions. Model SC-2124M has a large 4x20 character display and uses Modbus? RTU communication for remote monitoring. It accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs

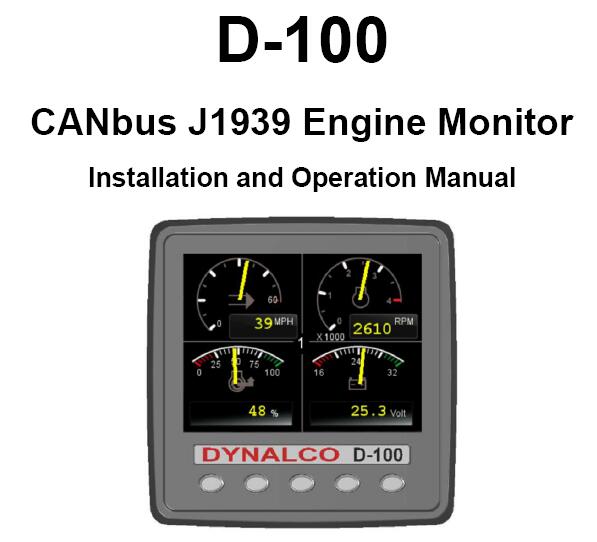

D-100 CANbus Monitor監控器 D-100 CANbus Monitor offers J1939 compatibility for displaying engine performance parameters for Tier 4 emission standards. Equipped with a high resolution, 3.5" color display that can be viewed in full sunlight, D-100 is built in a rugged enclosure with a compact footprint to meet your application needs. An intuitive, user-friendly software design helps you quickly set up the unit to monitor J1939 parameters which can be viewed in user-configurable single and quad screens. Seven analog inputs, two digital inputs, four digital outputs and one magnetic pickup input allow multiple functionality and I/O capabilities	UM-600 Universal Monitor監控器 UM-600 monitors up to 6 channels of any analog signal plus engine speed and hours and provides an alarm and two different shutdown signal upon user-defined set-points being exceeded. These alarms and shutdown parameters can be set based on absolute or differential values. It offers a user customizable graphic display that has 3 different display modes. It also offers on board data logging that can be accessed via a Modbus connection or a USB interface

DYNALCO D-100 CANbus Monitor顯示器

DYNALCO D-100 CANbus顯示器提供J1939兼容性，用于顯示Tier 4排放標準的發動機性能參數。 D-100配備了高分辨率的3.5“彩色顯示屏，可以在各種陽光條件下觀看，外殼堅固，占位空間小，適合您的應用。直觀的，用戶友好的軟件設計可幫助您快速設置單元監視J1939參數，并可以在用戶可配置的單屏和四屏上查看。七個模擬輸入，兩個數字輸入，四個數字輸出和一個磁性探頭輸入，允許多種功能和I / O功能。

DYNALCO特征：

高分辨率320 x 240彩色液晶屏（LCD），清晰的高對比度
7個模擬量輸入、2個數字量輸入和4個信號輸入
4個繼電器輸出
全天候可讀，亮度750 NIT（cd / m2）
用戶可配置單屏或四屏
5個軟鍵提供簡單、完整的本地配置
選擇數字值，模擬量或同時選擇兩者以滿足您的個性化需求
顯示TIER 4引擎信息
提供即時的可視和聽覺指示警報
IP66防護等級
密碼保護，以避免未經授權的更改

AF-900PC Air/Fuel Ratio Controller
The AF900PC Air/Fuel Ratio Controller uses an advanced microprocessor controller to precisely mai..
Catalyst Monitor
Catalyst Monitor
Our Catalyst Monitor meets the RICE NESHAP Continuous Parameter Monitoring requirements. It is a ..
SC-2124 Scanner/Monitor
SC-2124 Scanner/Monitor
Our SC2124 scanner/controller is a microprocessor based controller that has 24 channe..
SC-2124M Scanner/Monitor
SC-2124M Scanner/Monitor
The SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and ..
D-100 CANbus Monitor
D-100 CANbus Monitor
D-100 CANbus Monitor offers J1939 compatibility for displaying engine performance parameters for Tie..
UM-600 Universal Monitor
UM-600 Universal Monitor
The UM-600 monitors up to 6 channels of any analog signal plus engine speed and hours and provide..

美國Dynalco控制儀表公司簡介

Dynalco設計和制造高度工程堅固，可靠的，第三方的監測，控制和往復式發動機，蒸汽渦輪機，燃氣渦輪機，泵和輸送系統的保護認證儀表。我們為一個在石油和天然氣，化工/過程，建筑業及越野設備，交通運輸，發電，船舶，采礦，水和廢水市場的客戶和工廠自動化等。Dynalco designs and manufactures highly engineered rugged, reliable, 3rd party certified instumentation for monitoring, control and protection of reciprocating engines, steam turbines, gas turbines, pumps and conveying systems. We serve a variety of customers in the Oil and Gas, Chemical/Process, Contruction and off-road equipment, Transportation, Power Generation, Marine, Mining, Water and Waste Water and Factory Automation Markets.

如果需要技術咨詢、產品詢價、下單和索要產品技術資料，請與我們聯絡010-84282935。
