      A Barksdale Inc. Company

    Instruments & Controls for Rotating Equipment in Demanding Applications

























































       德納科Dynalco簡介














































          監視器和掃描儀























































































































































































































































        Dynalco Products - Speed Sensors速度傳感器

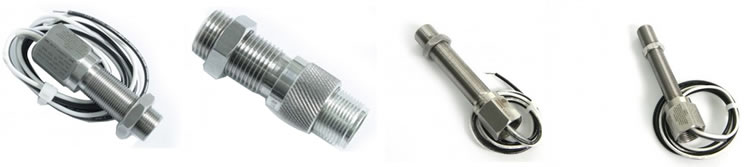

            Dynalco Magnetic Pickups Dynalco Speed Sensors磁性傳感器/速度傳感器




      美國戴納科公司DYNALCO提供可變磁阻傳感器選擇，包括測量為速度和方向感測以及流量、功率、計數、定時和同步。并且獲得第三方認證CSA,UL,ATEX等。We offer the largest selection of variable reluctance sensors for speed and direction sensing as well as flow, power, counting, timing and synchronization. Third-party approvals available.








      美國德納科Dynalco公司控制儀表公司簡介：


      美國德納科Dynalco公司設計和制造高度工程堅固，可靠的，第三方的監測，控制和往復式發動機，蒸汽渦輪機，燃氣渦輪機，泵和輸送系統的保護認證儀表。我們為一個在石油和天然氣，化工/過程，建筑業及越野設備，交通運輸，發電，船舶，采礦，水和廢水市場的客戶和工廠自動化等。Dynalco sensors have many uses including speed, direction sensing, flow and power measurement, counting, timing, and synchronization. Our sensors come in a wide variety of lengths, body and pole piece diameters, and output levels. Styles include self-powered magnetic, miniature, dc-powered, and Hall effect. Dynalco also engineers sensors for custom applications.





      Standard Magnetic Pickups

        標準磁性傳感器


      標準磁性傳感器用于大多數應用。這些傳感器有兩個插腳，可接受標準MS樣式的連接器。它們有短、中、長和超長螺紋長度。靈敏度可以是標準的、高的或超高的。有時需要具有更高靈敏度的拾波器以在低速下產生更高的輸出。Standard magnetic pickups are used for most applications. These pickups have 2 pins that will accept a standard MS style connector. They are available in short, medium, long and extra-long thread lengths. The sensitivity is available as either standard, high or ultra-high. A pickup with higher sensitivity is sometimes required to produce higher output at low speed。








            MODEL 型號
            Thread size 螺紋尺寸
            Sensitivity 靈敏度






      5/8-18 X 1.125


      Standard







      5/8-18 X 1.125


      High







      5/8-18 X 1.125


      Ultra-high

















      5/8-18 X 2.500


      Standard







      5/8-18 X 2.500


      High







      5/8-18 X 2.500


      Ultra-high

















      5/8-18 X 4.000


      Standard







      5/8-18 X 4.000


      High







      5/8-18 X 4.000


      Ultra-high

















      5/8-18 X 6.000


      Standard







      5/8-18 X 6.000


      High









      Intrinsically-safe Magnetic Pickups

        本安型磁性傳感器


      本安全型磁性傳感器的輸出電流有限，用于可能存在爆炸性氣體的危險場所。這些皮卡將由CSA、UL或ATEX批準，閱讀適用證書非常重要，證書中應說明批準地點、批準的產品以及安裝說明。與標準拾音器類似，這些拾音器有兩個插腳，可接受標準MS樣式的連接器，并提供短和長螺紋長度。靈敏度可以是標準的，也可以是高的。有時需要具有更高靈敏度的拾波器以在低速下產生更高的輸出。Intrinsically-safe magnetic pickups have a limited output current for use in hazardous locations where explosive gases may be present. These pickups will be approved by either CSA, UL or ATEX and it is important to read the applicable certificate that will have a description on where they are approved, which products they are approved with, as well as installation instructions. Similar to the standard pickups, these pickups have 2 pins that will accept a standard MS style connector and are available in short and long thread lengths. The sensitivity is available as either standard or high. A pickup with higher sensitivity is sometimes required to produce higher output at low speed.





            MODEL 型號
            Thread size 螺紋尺寸
            Sensitivity 靈敏度






      5/8-18 X 1.125


      Standard







      5/8-18 X 1.125


      High

















      5/8-18 X 4.000


      Standard







      5/8-18 X 4.000


      High









      Explosion-proof Magnetic Pickups

        防爆磁性傳感器


      防爆磁性傳感器采用帶“NPT內螺紋”的盲端外殼建造，用于連接到NGID或柔性導管，包括電纜導管內的所有電線和連接，這種結構允許在可能存在爆炸性氣體的危險位置使用。這些皮卡將由CSA、UL或ATEX批準，閱讀適用證書非常重要，證書中應說明批準地點、批準的產品以及安裝說明。這些皮卡有2-AWG 18導線，可以定制長度訂購。螺紋體有短螺紋和長螺紋兩種。Explosion-proof magnetic pickups are constructed using a blind-end housing with a "NPT female thread for connection to either ngid or flexible conduit By containing all wires and connections within the cable conduit,this construction allows for use in hazardous locations where explosive gases may be present. These pickups will be approved by either CSA, UL or ATEX and it is important to read the applicable certificate that will have a description on where they are approved, which products they are approved with, as well as installation instructions. These pickups have 2-AWG 18 leads that can be ordered in custom lengths. The bodies are available in short and long thread lengths







            MODEL 型號
            Thread size 螺紋尺寸
            Approval認證




            M104
            4-20 X 1.875
            CSA / UL




            M140
            4-20 X 1.875
            UL




            M180
            5/8-18 X 1.500
            CSA / UL / ATEX




            M219
            5/8-18 X 3.500
            CSA




            M318
            3/4-20 X 3.500
            CSA




            M319
            5/8-18 x 3.500
            CSA/ATEX








      Hall-effect Sensors

        霍爾效應傳感器


      霍爾效應傳感器需要直流電源，工作速度低于0轉/分。這些傳感器有3個插腳，可接受標準的3插座MS型連接器。有兩種型號。M806型號設計用于感應目標磁鐵的北極或南極。該傳感器是點火系統，需要從凸輪軸脈沖正確的點火正時。M951型設計用于檢測黑色金屬；齒輪齒、單個鐵銷或孔/鍵槽。任何一個傳感器的輸出都是一個數字方波，使其成為輸入到PLC脈沖卡的選擇。Hall-effect sensors require DC power and operate at speeds down to 0 RPM. These sensors have 3 pins that will accept a standard 3-socket MS style connector. There are two models available. The model M806 is designed to sense either the north or south pole of a target magnet. This sensor is ideal for ignition systems that require a pulse from the camshaft for proper ignition timing. The model M951 is designed to sense ferrous metal; either gear teeth, a single iron pin or hole/keyway. The output of either sensor is a digital square wave making them ideal for input to a PLC pulse card.





            MODEL 型號
            Thread size 螺紋尺寸
            Supply input






      5/8-18 X 4.500


      8-32VDC







      5/8-18 X 4.500


      8-32VDC









      - DYNALCO Magnetic Pickups/Speed Sensors 磁性傳感器/速度傳感器














      M806 Hall Effect Magnetic Pickup/Speed Sensor

              霍爾效應磁性傳感器/速度傳感器




      M951 Hall Effect Magnetic Pickup/Speed Sensor

            霍爾效應磁性傳感器/速度傳感器














      M104 Magnetic Pickup/Speed Sensor

                    速度傳感器




      M131 Magnetic Pickup/Speed Sensor

                  速度傳感器
















      M319 Magnetic Pickup/Speed Sensor速度傳感器




      M204 Magnetic Pickup/Speed Sensor速度傳感器














      M180 Magnetic Pickup/Speed Sensor 速度傳感器




      M343 Bi-Directional Magnetic Pickup 速度傳感器














      M101 Magnetic Pickup/Speed Sensor速度傳感器




      M233 Magnetic Pickup/Speed Sensor 速度傳感器














      C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly 速度傳感器




      M133 Magnetic Pickup/Speed Sensor速度傳感器














      M137 Magnetic Pickup/Speed Sensor速度傳感器


      M134 Magnetic Pickup/Speed Sensor速度傳感器














      M138 Magnetic Pickup/Speed Sensor速度傳感器




      M135 Magnetic Pickup/Speed Sensor速度傳感器














      M139 Magnetic Pickup/Speed Sensor速度傳感器




      M202 Magnetic Pickup/Speed Sensor速度傳感器














      M334 Magnetic Pickup/Speed Sensor速度傳感器




      M107 Magnetic Pickup/Speed Sensor速度傳感器









      Dynalco電磁傳感器和速度傳感器



        Dynalco于1968年成立，初提供三種產品，目標是為石油和天然氣行業生產工程解決方案。如今，Dynalco已成為全球行業的領導者，以其在石油和天然氣，化工，電力，船舶和建筑行業中使用的高質量儀器和控制裝置而聞名。2011年10月，Dynalco被其姊妹公司Barksdale，Inc.收購，現已成為Barksdale品牌家族的一部分。返回Dynalco主要產品頁面。










      有源（有源）-普通區域

        有源（有源）-危險

        被動（可變磁阻）-普通區域

        被動（可變磁阻）-危險區域

        速度感應配件




      M321系列

        M321高靈敏度傳感器

        多種螺紋尺寸和長度

        被動（可變磁阻）-危險區域

        高靈敏度（小速度> 300 RPM）


      數據表

        Dynalco M321資料表




      磁性拾音器

        批準書

        M321 ATEX證書

        M321 IECEx證書

        安裝手冊

        M321安裝說明








      M134-6

        M134-6電磁傳感器/速度傳感器

        5 / 8-18 x 6“-2針


      被動（可變磁阻）-普通區域


      標準靈敏度（小速度> 500 RPM）













      數據表

        Dynalco M134-6-5 / 8-18 x 6“-2針數據表




      磁性拾音器




      M185

          M185電磁傳感器/速度傳感器

        5/8-18 x 4" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Datasheets

  Dynalco M185 - 5/8-18 x 4" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M184

          M184電磁傳感器/速度傳感器

        5/8-18 x 2.5" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Datasheets

  Dynalco M184 - 5/8-18 x 2.5" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M183-6

          M183-6電磁傳感器/速度傳感器

        5/8-18 x 6" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M183-6 - 5/8-18 x 6" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M183

        M183電磁傳感器/速度傳感器

        5/8-18 x 2.5" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M183 - 5/8-18 x 2.5" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M180

        M180電磁傳感器/速度傳感器

        5/8-18 x 1.5" - 30" Leads


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)




        Magnetic Pickup look-up

        Magnetic Pickups/Speed Sensors

        Active (Powered) Magnetic Pickups

        Passive (Variable Reluctance) Magnetic Pickups

        Ordinary Area

        Hazardous Area

        M101 - 5/8-18 x 1.125” - 2 Pin

        M101-6 - 5/8-18 x 6” - 2 Pin

        M104-6 - 3/4-20 x 1.875”- 30” Leads

        M107 - 5/8-18 x 1.125” - 2 Pin - Power Source

        M131 - 5/8-18 x 4” - 2 Pin

        M131-6 - 5/8-18 x 6” - 2 Pin

        M134-6 - 5/8-18 x 6” - 2 Pin

        M137 - 3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2”

        M104 - 3/4-20 x 1.875”- 30” Leads

        M134 - 5/8-18 x 1.125” - 2 Pin

        C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/

        Connector Assembly

        C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/

        Connector Assembly

        M102 - 5/8-18 x 1.125” - 2 Pin

        M133 - 5/8-18 x 4” - 2 Pin

        M138 - 3/8-24 x 1.250” - 6” Leads - Miniature, Gear <2”

        M155 - 5/8-18 x 1.125” - 2 Pin - Low Drag, flow meter

        M155-6 - 5/8-18 x 6” - 2 Pin - Low Drag, flow meter

        M140 - 3/4-20 x 1.875” -30” Leads

        M180 - 5/8-18 x 1.5” - 30” Leads

        M202 - 5/8-18 x 1.125” - 2 Pin

        M142 - 5/8-18 x 1.125” - 2 Pin

        M184 - 5/8-18 x 2.5” - 2 Pin

        M185 - 5/8-18 x 4” - 2 Pin

        M203 - 5/8-18 x 4” - 2 Pin - Zener-Limited

        Standard Sensitivity (min. Speed > 500 RPM)

        Standard Sensitivity (min. Speed > 500 RPM)

        High Sensitivity (min. Speed > 300 RPM)

        High Sensitivity (min. Speed > 300 RPM)

        Ultra-High Sensitivity (min. Speed < 300 RPM)

        Ultra-High Sensitivity (min. Speed < 300 RPM)

        Ordinary Area

        M928 - 5/8-18 x 2.5” - 3 Pin

        TTL Output Source Tracking

        Hazardous Area

        M920 Series

        Zero Speed Hall-Effect Sensors

        M143 - 10-32 x 0.875” - 14” Leads - Miniature, Gear <2”

        M151 - 5/8-18 x 2.5” - 2 Pin

        M183-6-N - No Header, #20, 12” Leads

        M189 - 5/8-18 x 2.5” - 2 Pin

        M192 - 5/8-18 x 4” - 72” Leads

        M304 - 3/4-16 x 4” - 2 Pin

        M320 - M18 x 1.5 - 2 Pin

        M343 - 3/4-20 x 2” - 6 Pin - Dual output (Bi directional)

        M135 - 5/8-18 x 4” - 2 Pin

        M139 - 3/4-20 x 2” - 2 Pin

        M354 - M16 x 1.5 - 17” cable

        M356 - 3/4-16 x 2” - 17” cable - Power Source

        M367 - M16 x 1.5 - 10” cable

        M332 - 5/8-18 x 2.5” - 2 Pin

        M193 - 5/8-18 x 4” - 72” Leads

        M306 - REF. 800-13041

        M201 - 5/8-18 x 1.125” - 2 Pin

        M231 - 5/8-18 x 4” - 2 Pin

        M168 - 5/8-18 x 1.75” - 12” Leads

        M183 - 5/8-18 x 2.5” - 2 Pin

        M183-6 - 5/8-18 x 6” - 2 Pin

        M202-6 - 5/8-18 x 6” - 2 Pin

        M207 - 3/4-16 x 4” - 2 Pin - Power Source

        M219 - 5/8-18 x 3.5” - 15’ Leads

        M233 - 5/8-18 x 4” - 2 Pin

        M318 - 3/4-20 x 3.5” - 30” Leads

        M203-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited

        M204-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited

        M205-6 - 5/8-18 x 6” - 2 Pin - Zener-Limited

        M233-6 - 5/8-18 x 6” - 2 Pin

        M303 - 5/8-18 x 1.125” - 2 Pin

        M334 - 3/8-24 x 1.25” - 12’ cable - Miniature, Gear <2”

        M321 -

        M208 - 3/4-16 x 4” - 2 Pin - Power Source

        M281 - M16 x 1.5 - 2 Pin

        C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/

        Connector Assembly

        PG-100 Pulser

        M319 - 5/8-18 x 3.5”- 30” Leads

        M337 - 5/8-18 x 6” - 30” Leads

        TT-100 Tach Tape

        ISB-101 Intrinsically Safe Barrier (Hazardous Area)

        M928-24 - 5/8-18 x 2.5” - 3 Pin

        M806 - 5/8-18 x 4.5” - 3 Pin

        M951 - 5/8-18 x 4.5” - 3 Pin

        Zero Speed Hall-Effect Sensors

        M919-3-25 - 5/8-18 x 2.5” - 3 Pin

        M919-3-25 - 5/8-18 x 2.5” - 3 Pin

        M919-3-45 - 5/8-18 x 4.5” - 3 Pin

        M204 - 5/8-18 x 2.5” - 2 Pin - Zener-Limited M205 - 5/8-18 x 4” - 2 Pin - Zener-Limited

        Speed Sensing Accessories




      C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/Connector Assembly

        C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/Connector Assembly

        C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/Connector Assembly

        PG-100 Pulser

        TT-100 Tach Tape

        ISB-101 Intrinsically Safe Barrier (Hazardous Area)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Dynalco M180/ M319 Magnetic Pickup/Speed Sensor ATEX Approval

        Datasheets

        Dynalco M180 - 5/8-18 x 1.5" - 30" Leads Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M168

        M168電磁傳感器/速度傳感器

        5/8-18 x 1.75" - 12" Leads


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)










      Datasheets

  Dynalco M168 - 5/8-18 x 1.75" - 12" Leads Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M928

        M928-5 / 8-18 x 2.5

        5/8-18 x 2.5" - 3 Pin


      Active (Powered) - Ordinary Area


      TTL Output Source Tracking













      Datasheets

  Dynalco M928 - 5/8-18 x 2.5" - 3 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M143

        M143電磁傳感器/速度傳感器

        10-32 x 0.875" - 14" Leads - Miniature, Gear <2"


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M143 - 10-32 x 0.875" - 14" Leads - Miniature, Gear <2" Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M151

        M151電磁傳感器/速度傳感器

        5/8-18 x 2.5" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M151 - 5/8-18 x 2.5" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M142

        M142電磁傳感器/速度傳感器

        5/8-18 x 1.125" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Datasheets

  Dynalco M142 - 5/8-18 x 1.125" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M140

        M140電磁傳感器/速度傳感器

        3/4-20 x 1.875" -30" Leads


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M140 - 3/4-20 x 1.875" -30" Leads Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M139

        M139電磁傳感器/速度傳感器

        3/4-20 x 2" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Approvals

        Dynalco M135/ M139 Magnetic Pickup/Speed Sensor CSA Approval

        Datasheets

        Dynalco M139 - 3/4-20 x 2" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M138

        M138電磁傳感器/速度傳感器

        3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2"


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M138 - 3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2" Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M137

        M137電磁傳感器/速度傳感器

        3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2"


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M137 - 3/8-24 x 1.250" - 6" Leads - Miniature, Gear <2" Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M135

        M135電磁傳感器/速度傳感器

        5/8-18 x 4" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M135 - 5/8-18 x 4" - 2 Pin Datasheets

        Approvals

        Dynalco M135/ M139 Magnetic Pickup/Speed Sensor CSA Approval

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M201

        M201電磁傳感器/速度傳感器

        5/8-18 x 1.125" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M201 - 5/8-18 x 1.125" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M133

        M133電磁傳感器/速度傳感器

        5/8-18 x 4" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M133 - 5/8-18 x 4" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M131-6

        M131-6電磁傳感器/速度傳感器

        5/8-18 x 6" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M131-6 - 5/8-18 x 6" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M131

        M131電磁傳感器/速度傳感器

        5/8-18 x 4" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M131 - 5/8-18 x 4" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M104

        M104電磁傳感器/速度傳感器

        3/4-20 x 1.875"- 30" Leads


      Passive (Variable Reluctance) - Hazardous Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M104 - 3/4-20 x 1.875"- 30" Leads Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M102

        M102 Magnetic Pickup/Speed Sensor

        5/8-18 x 1.125" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M102 - 5/8-18 x 1.125" - 2 Pin Datasheets

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M101-6

        M101-6 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M101-6 - 5/8-18 x 6" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      ISB-101

        ISB-101

        Intrinsically Safe Barrier (Hazardous Area)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Operating Manuals

        Dynalco ISB-101 Intrinsically Safe Barrier (Hazardous Area)

        Installation Manuals

        Dynalco ISB-101 Intrinsically Safe Barrier (Hazardous Area) Installation Bulletin

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      C917

        C917-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

        Magnetic Pickup/Speed Sensor 6-Pin Cable/Connector Assembly













      Datasheets

        Dynalco C917 Magnetic Pickup/Speed Sensor 6-Pin Cable/Connector Assembly Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      C910

        C910-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

        Magnetic Pickup/Speed Sensor 3-Pin Cable/Connector Assembly













      Datasheets

        Dynalco C910 Magnetic Pickup/Speed Sensor 3-Pin Cable/Connector Assembly Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      C101

        C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

        Magnetic Pickup/Speed Sensor 2-Pin Cable/Connector Assembly













      Datasheets

        Dynalco C101 Magnetic Pickup/Speed Sensor 2-Pin Cable/Connector Assembly Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M334

        M334 Magnetic Pickup/Speed Sensor

        3/8-24 x 1.25" - 12' cable - Miniature, Gear <2"


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

        Dynalco M334 Magnetic Pickup/Speed Sensor Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M318

        M318 Magnetic Pickup/Speed Sensor

        3/4-20 x 3.5" - 30" Leads


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M318 - 3/4-20 x 3.5" - 30" Leads Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up

        Approvals

        Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval




      M920 Series

        M920 Zero Speed Hall-Effect Sensors

        Multiple Thread Sizes and Lengths


      Active (Powered) - Hazardous Area


      Zero Speed Hall-Effect Sensors











      Datasheets

        Dynalco M920 Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up

        Approvals

        M920 ATEX Certificate

        M920 IECEx Certificate

        Installation Manuals

        M920 Installation Instructions




      M319

        M319

        5/8-18 x 3.5"- 30" Leads


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)













      Approvals

        Dynalco M180/ M319 Magnetic Pickup/Speed Sensor ATEX Approval

        Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval

        Datasheets

        Dynalco M319 - 5/8-18 x 3.5"- 30" Leads Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      TT-100

        TT-100

        Tach Tape













      Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up

        Datasheets

        Dynalco TT-100 Tach Tape Datasheet and Manual




      PG-100

        PG-100

        Pulser













      Datasheets

        Dynalco PG-100 Pulser Datasheet and Manual

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M155-6

        M155-6 Magnetic Pickup/ Speed Sensor

        5/8-18 x 6" - 2 Pin - Low Drag, flow meter


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)
















      Datasheets

  Dynalco M155-6 - 5/8-18 x 6" - 2 Pin - Low Drag, flow meter Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M343

        M343 Magnetic Pickup/Speed Sensor

        3/4-20 x 2" - 6 Pin - Dual output (Bi directional)


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M343 - 3/4-20 x 2" - 6 Pin - Dual output (Bi directional) Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M806

        M806 - 5/8-18 x 4.5

        5/8-18 x 4.5" - 3 Pin


      Active (Powered) - Ordinary Area


      Zero Speed Hall-Effect Sensors













      Datasheets

  Dynalco M806 - 5/8-18 x 4.5" - 3 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M928-24

        M928-24 - 5/8-18 x 2.5

        5/8-18 x 2.5" - 3 Pin


      Active (Powered) - Ordinary Area


      TTL Output Source Tracking













      Datasheets

  Dynalco M928-24 - 5/8-18 x 2.5" - 3 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M320

        M320 Magnetic Pickup/Speed Sensor

        M18 x 1.5 - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

        Dynalco M320 - M18 x 1.5 - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M101

        M101 Magnetic Pickup/Speed Sensor

        5/8-18 x 1.125" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M101 - 5/8-18 x 1.125" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M107

        M107 Magnetic Pickup/Speed Sensor

        5/8-18 x 1.125" - 2 Pin - Power Source


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M107 - 5/8-18 x 1.125" - 2 Pin - Power Source Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M134

        M134 Magnetic Pickup/Speed Sensor

        5/8-18 x 1.125" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M134 - 5/8-18 x 1.125" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M155

        M155 Magnetic Pickup/Speed Sensor

        5/8-18 x 1.125" - 2 Pin - Low Drag, flow meter


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M155 - 5/8-18 x 1.125" - 2 Pin - Low Drag, flow meter Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M189

        M189 Magnetic Pickup/Speed Sensor

        5/8-18 x 2.5" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Datasheets

  Dynalco M189 - 5/8-18 x 2.5" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M202

        M202 Magnetic Pickup/Speed Sensor

        5/8-18 x 1.125" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M202 - 5/8-18 x 1.125" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M951

        M951 - 5/8-18 x 4.5

        5/8-18 x 4.5" - 3 Pin


      Active (Powered) - Ordinary Area


      Zero Speed Hall-Effect Sensors













      Datasheets

        Dynalco M951 Hall Effect Speed Sensor Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M304

        M304 Magnetic Pickup/Speed Sensor

        3/4-16 x 4" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      Standard Sensitivity (min. Speed > 500 RPM)
















      Datasheets

  Dynalco M304 - 3/4-16 x 4" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M233-6

        M233-6 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)
















      Datasheets

  Dynalco M233-6 - 5/8-18 x 6" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M233

        M233 Magnetic Pickup/Speed Sensor

        5/8-18 x 4" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M233 Magnetic Pickup/Speed Sensor Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M231

        M231 Magnetic Pickup/Speed Sensor

        5/8-18 x 4" - 2 Pin


      Passive (Variable Reluctance) - Hazardous Area


      Standard Sensitivity (min. Speed > 500 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M231 - 5/8-18 x 4" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M219

        M219 Magnetic Pickup/Speed Sensor

        5/8-18 x 3.5" - 15' Leads


      Passive (Variable Reluctance) - Hazardous Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

        Dynalco M219 Magnetic Pickup/Speed Sensor Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up

        Approvals

        Dynalco SPD-100/SPD-108/M219/M318/M319 CSA Approval




      M208

        M208 Magnetic Pickup/Speed Sensor

        3/4-16 x 4" - 2 Pin - Power Source


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Approvals

        Dynalco M207/ M208 Magnetic Pickup/Speed Sensor CSA Approval

        Datasheets

        Dynalco M208 - 3/4-16 x 4" - 2 Pin - Power Source Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M207

        M207 Magnetic Pickup/Speed Sensor

        3/4-16 x 4" - 2 Pin - Power Source


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M207 - 3/4-16 x 4" - 2 Pin - Power Source Datasheet

        Approvals

        Dynalco M207/ M208 Magnetic Pickup/Speed Sensor CSA Approval

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M205-6

        M205-6 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 2 Pin - Zener-Limited


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Datasheets

  Dynalco M205-6 - 5/8-18 x 6" - 2 Pin - Zener-Limited Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M205

        M205 Magnetic Pickup/Speed Sensor

        5/8-18 x 4" - 2 Pin - Zener-Limited


      Passive (Variable Reluctance) - Hazardous Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M205 - 5/8-18 x 4" - 2 Pin - Zener-Limited Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M204-6

        M204-6 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 2 Pin - Zener-Limited


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Datasheets

  Dynalco M204-6 - 5/8-18 x 6" - 2 Pin - Zener-Limited Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M204

        M204 Magnetic Pickup/Speed Sensor

        5/8-18 x 2.5" - 2 Pin - Zener-Limited


      Passive (Variable Reluctance) - Hazardous Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M204 - 5/8-18 x 2.5" - 2 Pin - Zener-Limited Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M203-6

        M202-6 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 2 Pin - Zener-Limited


      Passive (Variable Reluctance) - Ordinary Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Datasheets

          Dynalco M203-6 - 5/8-18 x 6" - 2 Pin - Zener-Limited Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M203

        M203 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 30" Leads


      Passive (Variable Reluctance) - Hazardous Area


      Ultra-High Sensitivity (min. Speed < 300 RPM)













      Approvals

        Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations

        Datasheets

        Dynalco M203 - 5/8-18 x 4" - 2 Pin - Zener-Limited Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up




      M202-6

          M202-6 Magnetic Pickup/Speed Sensor

        5/8-18 x 6" - 2 Pin


      Passive (Variable Reluctance) - Ordinary Area


      High Sensitivity (min. Speed > 300 RPM)













      Datasheets

  Dynalco M202-6 - 5/8-18 x 6" - 2 Pin Datasheet

        Miscellaneous

        Dynalco Rep Locator

        Magnetic Pickup Look-up






        Barksdale Inc. – All rights reserved. | Data Protection | Imprint | Sitemap | Login


      Pressure Temperature Level Flow Industrial Valves

        Pressure switches, mechanical

        Pressure switches, electronical

        Transducer

        Indication Instruments

        Temperature switches, mechanical

        Temperature switches, electronical

        Temperature Transducer

        Single Level Switches

        Multi Level Switches

        液位探頭

        旁路液位指示器

        流量開關

        流量傳感器






      - Dynalco Products - Speed Sensors速度傳感器



          M104 Magnetic Pickup/Speed Sensor

          M131 Magnetic Pickup/Speed Sensor

          M319 Magnetic Pickup/Speed Sensor

          M204 Magnetic Pickup/Speed Sensor

          M180 Magnetic Pickup/Speed Sensor

          M343 Bi-Directional Magnetic Pickup

          M101 Magnetic Pickup/Speed Sensor

          M233 Magnetic Pickup/Speed Sensor

          C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

          M133 Magnetic Pickup/Speed Sensor

          M137 Magnetic Pickup/Speed Sensor

          M134 Magnetic Pickup/Speed Sensor

          M138 Magnetic Pickup/Speed Sensor

          M135 Magnetic Pickup/Speed Sensor

          M139 Magnetic Pickup/Speed Sensor

          M202 Magnetic Pickup/Speed Sensor

          M334 Magnetic Pickup/Speed Sensor

          M107 Magnetic Pickup/Speed Sensor


      - DYNALCO Magnetic Pickups/Speed Sensors








      Product


      Description






              M101
              MAGNETIC PICKUP: standard sensitivity and reach





              M102
              MAGNETIC PICKUP: high sensitivity, standard reach





              M131
              MAGNETIC PICKUP: standard sensitivity, long reach





              M133
              MAGNETIC PICKUP: high sensitivity, long reach





              M142
              MAGNETIC PICKUP: ultra-high sensitivity, standard reach





              M151
              MAGNETIC PICKUP: standard sensitivity, medium reach





              M155
              MAGNETIC PICKUP: turbine flow meter, low drag





              M168
              MAGNETIC PICKUP: high sensitivity, standard reach





              M183
              MAGNETIC PICKUP: high sensitivity, medium reach





              M184
              MAGNETIC PICKUP: ultra-high sensitivity, medium reach





              M185
              MAGNETIC PICKUP: ultra-high sensitivity, long reach





              M189
              MAGNETIC PICKUP: standard sensitivity, medium reach





              M343
              MAGNETIC PICKUP: bi-directional sensor for DST-2000C














              M104
              MAGNETIC PICKUP: explosion-proof housing, UL/CSA approved





              M134
              MAGNETIC PICKUP: intrinsically safe, standard reach





              M135
              MAGNETIC PICKUP: intrinsically safe, long reach





              M139
              MAGNETIC PICKUP: intrinsically safe, medium reach





              M140
              MAGNETIC PICKUP: explosion-proof housing





              M180
              MAGNETIC PICKUP: explosion-proof housing, ATEX/CSA approved





              M201
              MAGNETIC PICKUP: intrinsically safe, standard reach





              M202
              MAGNETIC PICKUP: intrinsically safe, standard reach





              M203
              MAGNETIC PICKUP: intrinsically safe, power zener, long reach





              M204
              MAGNETIC PICKUP: intrinsically safe, power zener, medium reach





              M205
              MAGNETIC PICKUP: intrinsically safe, power zener, long reach





              M231
              MAGNETIC PICKUP: intrinsically safe, long reach





              M233
              MAGNETIC PICKUP: intrinsically safe, long reach





              M318
              MAGNETIC PICKUP: explosion-proof housing, CSA approved





              M319
              MAGNETIC PICKUP: explosion-proof housing, ATEX/CSA approved















              M107
              MAGNETIC PICKUP: power source, standard sensitivity, standard reach





              M163
              MAGNETIC PICKUP: power source, blind end





              M207
              MAGNETIC PICKUP: power source, low impedance





              M208
              MAGNETIC PICKUP: power source, long reach














              M801
              MAGNETIC PICKUP: Hall effect, active sensor, near zero velocity





              M802
              MAGNETIC PICKUP: Hall effect, active sensor, near zero velocity,

      60 inch leads






              M928
              MAGNETIC PICKUP: zero velocity, active sensor, TTL output














              M137
              MAGNETIC PICKUP: miniature housing, standard sensitivity





              M138
              MAGNETIC PICKUP: miniature housing, high sensitivity





              M143
              MAGNETIC PICKUP: miniature housing, 14 inch leads














              C101-10
              PICKUP CABLE ASSEMBLIES: for passive, magnetic pickups, 2-pin, 10 feet (3.048 m), minimum.





              C910-10
              PICKUP CABLE ASSEMBLIES: for active magnetic pickups, 3-pin, 10 feet (3.048 m), minimum.





              C917-10
              PICKUP CABLE ASSEMBLIES: for active magnetic pickups, 6-pin, 10 feet (3.048 M), mimimum.





              HTM-801
              TARGET MAGNET ASSEMBLY: target magnet assemblies for Hall effect pickups









      -  DYNALCO Magnetic Pickups/Speed Sensors


      C101-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

          Cable/connector assembly for 2-pin magnetic pickups, shielded, straight clamp, MS 3106A-10SL-4S c..

          C910-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

          C910-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

          Cable/connector assembly for 3-pin active magnetic pickups, shielded, straight clamp, MS 3106A-10..

          C917-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

          C917-10 Magnetic Pickup/Speed Sensor Cable/Connector Assembly

          Cable/connector assembly for M343 bi-directional magnetic pickup, shielded, 6-pin, 10 feet  ..

          M101 Magnetic Pickup/Speed Sensor

          M101 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup has standard sensitivity which makes it best suited for high speed ..

          M102 Magnetic Pickup/Speed Sensor

          M102 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup has high sensitivity which makes it good for mid-speed (300 to 50..

          M104 Magnetic Pickup/Speed Sensor

          M104 Magnetic Pickup/Speed Sensor

          This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..

          M107 Magnetic Pickup/Speed Sensor

          M107 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup can power other instruments. It has standard sensitivity, standard ..

          M131 Magnetic Pickup/Speed Sensor

          M131 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup has standard sensitivity long reach (4.000inches) and a 5/8-18 thre..

          M133 Magnetic Pickup/Speed Sensor

          M133 Magnetic Pickup/Speed Sensor

          This highly sensitivity magnetic pickup is well suited for lower speed (300 to 500 rpm) applicati..

          M134 Magnetic Pickup/Speed Sensor

          M134 Magnetic Pickup/Speed Sensor

          This intrinsically-safe, low-output magnetic pickup has a standard reach (1.125 inches), 5/8-18 t..

          M135 Magnetic Pickup/Speed Sensor

          M135 Magnetic Pickup/Speed Sensor

          This intrinsically safe magnetic pickup has a long reach(4.000 inches), 5/8-18 thread, and is CSA ap..

          M137 Magnetic Pickup/Speed Sensor

          M137 Magnetic Pickup/Speed Sensor

          This miniature magnetic pickup has standard sensitivity which is appropriate for higher speed (&g..

          M138 Magnetic Pickup/Speed Sensor

          M138 Magnetic Pickup/Speed Sensor

          This miniature magnetic pickup is highly sensitive which makes it appropriate for lower speed (30..

          M139 Magnetic Pickup/Speed Sensor

          M139 Magnetic Pickup/Speed Sensor

          The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a medium..

          M140 Magnetic Pickup/Speed Sensor

          M140 Magnetic Pickup/Speed Sensor

          This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..

          M142 Magnetic Pickup/Speed Sensor

          M142 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup is ultra-sensitive making it appropriate for low speed (less than 3..

          M143 Magnetic Pickup/Speed Sensor

          M143 Magnetic Pickup/Speed Sensor

          This magnetic pickup has a micro-miniature housing and 14 inch leads. Its housing length is a sho..

          M151 Magnetic Pickup/Speed Sensor

          M151 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup has standard sensitivity which makes it appropriate for higher spee..

          M155 Magnetic Pickup/Speed Sensor

          M155 Magnetic Pickup/Speed Sensor

          This special magnetic pickup is a low drag, flow meter sensor with thread x thread length x housi..

          M168 Magnetic Pickup/Speed Sensor

          M168 Magnetic Pickup/Speed Sensor

          This highly sensitive magnetic pickup is perfect for lower speed (300 to 500 rpm), larger gear (&..

          M180 Magnetic Pickup/Speed Sensor

          This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..

          M183 Magnetic Pickup/Speed Sensor

          M183 Magnetic Pickup/Speed Sensor

          This highly sensitive magnetic pickup makes it good for mid-speed (300 to 500 rpm), larger gear (..

          M184 Magnetic Pickup/Speed Sensor

          M184 Magnetic Pickup/Speed Sensor

          This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 i..

          M185 Magnetic Pickup/Speed Sensor

          M185 Magnetic Pickup/Speed Sensor

          This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 i..

          M189 Magnetic Pickup/Speed Sensor

          M189 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup has standard sensitivity which makes it appropriate for high speed ..

          M201 Magnetic Pickup/Speed Sensor

          M201 Magnetic Pickup/Speed Sensor

          The low output of this standard magnetic pickup makes it intrinsically safe and CSA approved for ..

          M202 Magnetic Pickup/Speed Sensor

          M202 Magnetic Pickup/Speed Sensor

          The low output of this magnetic pickup makes it intrinsically safe and CSA approved for use in ha..

          M203 Magnetic Pickup/Speed Sensor

          M203 Magnetic Pickup/Speed Sensor

          The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It..

          M204 Magnetic Pickup/Speed Sensor

          M204 Magnetic Pickup/Speed Sensor

          The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It..

          M205 Magnetic Pickup/Speed Sensor

          M205 Magnetic Pickup/Speed Sensor

          The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It..

          M207 Magnetic Pickup/Speed Sensor







      ISB-101 Magnetic Pickup/Speed Sensor

          INTRINSIC SAFETY BARRIER: Energy limiting device for magnetic pickups, CSA Class I, Division 1, G..

          M101-6  Magnetic Pickup/Speed Sensor

          M101-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has ..

          M131-6 Magnetic Pickup/Speed Sensor

          M131-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has ..

          M134-6 Magnetic Pickup/Speed Sensor

          M134-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: intrinsically safe, extra long reach This intrinsically-safe, low-output mag..

          M155-6 Magnetic Pickup/Speed Sensor

          M155-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: turbine flow meter, low drag and extra long reach This special ma..

          M183-6 Magnetic Pickup/Speed Sensor

          M183-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: high sensitivity, extra long reach This highly sensitive magnetic pickup mak..

          M202-6 Magnetic Pickup/Speed Sensor

          M202-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: intrinsically safe, extra long reach The low output of this magnetic pickup ..

          M203-6 Magnetic Pickup/Speed Sensor

          M203-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: intrinsically safe, power zener extra long reach The zener-limited output of..

          M204-6 Magnetic Pickup/Speed Sensor

          M204-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output o..

          M205-6 Magnetic Pickup/Speed Sensor

          M205-6 Magnetic Pickup/Speed Sensor

          Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output o..

          M320 Magnetic Pickup/Speed Sensor

          M320 Magnetic Pickup/Speed Sensor

          This metric thread magnetic pickup has standard sensitivity which makes it best suited for high s..

          M334 Magnetic Pickup/Speed Sensor

          M334 Magnetic Pickup/Speed Sensor

          This miniature magnetic pickup is highly sensitive which makes it appropriate for lower speed (300 t..

          M928-24 Magnetic Pickup/Speed Sensor

          M928-24 Magnetic Pickup/Speed Sensor

          This active magnetic pickup is a 24 VDC version of the standard model M928, with a digital TTL outpu..

          M233-6 Magnetic Pickup/Speed Sensor

          M233-6 Magnetic Pickup/Speed Sensor

          Magnetic  Pickup: high sensitivity, intrinsically safe, extra long reach The low output ..


      M207 Magnetic Pickup/Speed Sensor

          This magnetic pickup can power other instruments. It produces output even at low speed (300 to 50..

          M208 Magnetic Pickup/Speed Sensor

          M208 Magnetic Pickup/Speed Sensor

          This magnetic pickup can power other instruments. It has high sensitivity which produces output e..

          M219  Magnetic Pickup/Speed Sensor

          M219 Magnetic Pickup/Speed Sensor

          The explosion-proof housing on this magnetic pickup makes it intrinsically safe and CSA approved ..

          M231 Magnetic Pickup/Speed Sensor

          M231 Magnetic Pickup/Speed Sensor

          The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a lon..

          M233 Magnetic Pickup/Speed Sensor

          M233 Magnetic Pickup/Speed Sensor

          The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a lon..

          M304  Magnetic Pickup/Speed Sensor

          M304 Magnetic Pickup/Speed Sensor

          This standard magnetic pickup has a standard sensitivity which makes it suitable for high speed (..

          M318 Magnetic Pickup/Speed Sensor

          M318 Magnetic Pickup/Speed Sensor

          This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..

          M319 Magnetic Pickup/Speed Sensor

          M319 Magnetic Pickup/Speed Sensor

          This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environmen..

          M343 Bi-Directional Magnetic Pickup

          M343 Bi-Directional Magnetic Pickup

          This special magnetic pickup is for exclusive use with DST-2000C, a direction-sensing tachometer. Th..

          M928 Magnetic Pickup/Speed Sensor

          M928 Magnetic Pickup/Speed Sensor

          This active magnetic pickup has digital TTL output suitable for zero velocity applications.


      Product Name





      M155-6 Magnetic Pickup/Speed Sensor -- M155-6 Magnetic Pickup: turbine flow meter, low drag and extra long reach This special magnetic pickup is a low drag flow meter sensor with extra-long 6 inch threaded housing

          M233-6 Magnetic Pickup/Speed Sensor -- M233-6 Magnetic Pickup: high sensitivity, intrinsically safe, extra long reach The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has an extra-long 6 inch threaded...

          M134-6 Magnetic Pickup/Speed Sensor -- M134-6 Magnetic Pickup: intrinsically safe, extra long reach This intrinsically-safe, low-output magnetic pickup has an extra-long 6 inch threaded housing and is CSA approved. Most CSA-certified pickups retain that approval only...

          M101-6 Magnetic Pickup/Speed Sensor -- M101-6 Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has standard sensitivity which makes it best suited for high speed (>500 rpm), large gear (>12 inch diam.)...

          M183-6 Magnetic Pickup/Speed Sensor -- M183-6 Magnetic Pickup: high sensitivity, extra long reach This highly sensitive magnetic pickup makes it good for mid-speed (300 to 500 rpm), larger gear (>2 inch diam.) applications. It has...

          M202-6 Magnetic Pickup/Speed Sensor -- M202-6 Magnetic Pickup: intrinsically safe, extra long reach The low output of this magnetic pickup makes it intrinsically safe and CSA approved for use in hazardous areas. It has an...

          M203-6 Magnetic Pickup/Speed Sensor -- M203-6 Magnetic Pickup: intrinsically safe, power zener extra long reach The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low...

          M204-6 Magnetic Pickup/Speed Sensor -- M204-6 Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low...

          M131-6 Magnetic Pickup/Speed Sensor -- M131-6 Magnetic Pickup: standard sensitivity and extra long reach This standard magnetic pickup has standard sensitivity with extra-long 6 inch threaded housing.

          ISB-101 Magnetic Pickup/Speed Sensor -- ISB-101 INTRINSIC SAFETY BARRIER: Energy limiting device for magnetic pickups, CSA Class I, Division 1, Groups C & D. The ISB-101 is designed to be used in a safe area to...

          M205-6 Magnetic Pickup/Speed Sensor -- M205-6 Magnetic Pickup: intrinsically safe, power zener, extra long reach The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed...

          M219 Magnetic Pickup/Speed Sensor -- M219 The explosion-proof housing on this magnetic pickup makes it intrinsically safe and CSA approved to operate in high temperature environments. It has a long reach (3.50 inches) and 5/8-18 thread.

          M202 Magnetic Pickup/Speed Sensor -- M202 The low output of this magnetic pickup makes it intrinsically safe and CSA approved for use in hazardous areas. It has a standard reach (1.125 inches) and a 5/8-18 thread.

          M231 Magnetic Pickup/Speed Sensor -- M231

          M233 Magnetic Pickup/Speed Sensor -- M233 The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a long reach (4.000 inches) and a 5/8-18 thread. Most CSA-certified pickups retain that...

          M139 Magnetic Pickup/Speed Sensor -- M139 The low output of this magnetic pickup makes it intrinsically safe and CSA approved. It has a medium reach (2.000 inches) and a 3/4-20 thread. Most CSA-certified pickups retain that...

          M201 Magnetic Pickup/Speed Sensor -- M201 The low output of this standard magnetic pickup makes it intrinsically safe and CSA approved for use in hazardous areas. It has a standard reach (1.125 inches) and 5/8-18 thread.

          M203 Magnetic Pickup/Speed Sensor -- M203 The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 RPM), has a long reach 4.000 inches) and...

          M205 Magnetic Pickup/Speed Sensor -- M205 The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 rpm), larger gear (>2 inch diam. applications. It...

          M204 Magnetic Pickup/Speed Sensor -- M204 The zener-limited output of this magnetic pickup makes it intrinsically safe and CSA approved. It produces output even at low speed (<300 rpm), larger gear (>2 inch diam.) applications. It...

          M928 Magnetic Pickup/Speed Sensor -- M928 This active magnetic pickup has digital TTL output suitable for zero velocity applications. It has a medium reach (2.500 inches) and a 5/8-18 thread. For complete details call a customer...

          M928-24 Magnetic Pickup/Speed Sensor -- M928-24 This active magnetic pickup is a 24 VDC version of the standard model M928, with a digital TTL output suitable for zero velocity applications. It has a medium reach (2.500...

          M951 Hall Effect Magnetic Pickup/Speed Sensor -- M951 This hall effect sensor is designed to sense ferrous material (gear teeth, hole or pin) for speed measurement down to zero-speed. The digital output is compatible with most PLC input...

          M806 Hall Effect Magnetic Pickup/Speed Sensor -- M806 This hall effect sensor is designed to sense the presence of either the north or south pole of a target magnet. Applications are typically cam reference signal for industrial ignition...

          M168 Magnetic Pickup/Speed Sensor -- M168 This highly sensitive magnetic pickup is perfect for lower speed (300 to 500 rpm), larger gear (>2 inch diam.) applications. It has a 1.75" housing length, 5/8-18 thread and includes...

          M183 Magnetic Pickup/Speed Sensor -- M183 This highly sensitive magnetic pickup makes it good for mid-speed (300 to 500 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.500 inches) and a 5/8-18...

          M133 Magnetic Pickup/Speed Sensor -- M133 This highly sensitivity magnetic pickup is well suited for lower speed (300 to 500 rpm) applications. It has long reach(4.000inches) and 5/8-18 thread.

          M135 Magnetic Pickup/Speed Sensor -- M135 This intrinsically safe magnetic pickup has a long reach(4.000 inches), 5/8-18 thread, and is CSA approved. Most CSA-certified pickups retain that approval only when used as part of a specific...

          M134 Magnetic Pickup/Speed Sensor -- M134 This intrinsically-safe, low-output magnetic pickup has a standard reach (1.125 inches), 5/8-18 thread and is CSA approved. Most CSA-certified pickups retain that approval only when used as part of a...

          M208 Magnetic Pickup/Speed Sensor -- M208 This magnetic pickup can power other instruments. It has high sensitivity which produces output even at low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a long...

          M207 Magnetic Pickup/Speed Sensor -- M207 This magnetic pickup can power other instruments. It produces output even at low speed (300 to 500 rpm) applications. It also has a long reach (4.000 inches), a 3/4-16 thread...

          M143 Magnetic Pickup/Speed Sensor -- M143 This magnetic pickup has a micro-miniature housing and 14 inch leads. Its housing length is a short 0.875 inches and has a 10-32 thread. It is appropriate for small gear...

          M104 Magnetic Pickup/Speed Sensor -- M104 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It has a medium reach (1.875 inches) and 3/4-20 thread. It is UL/CSA approved for...

          M319 Magnetic Pickup/Speed Sensor -- M319 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is a sensitive pickup suitable for mid-speed applications (300 to 500 rpm). It has...

          M318 Magnetic Pickup/Speed Sensor -- M318 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is a sensitive pickup which makes it suitable for mid-speed (300 to 500 rpm)...

          M140 Magnetic Pickup/Speed Sensor -- M140 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is intended for standard temperature, lower speed (300 to 500 rpm) applications. It has...

          M180 Magnetic Pickup/Speed Sensor -- M180 This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is suited for use in standard temperature, mid speed (300 to 500 rpm), larger...

          M320 Magnetic Pickup/Speed Sensor -- M320 This metric thread magnetic pickup has standard sensitivity which makes it best suited for high speed (>500 rpm), large gear (>12 inch diam.) applications. It has a 51 mm reach...

          M137 Magnetic Pickup/Speed Sensor -- M137 This miniature magnetic pickup has standard sensitivity which is appropriate for higher speed (>500 rpm), small gear(less than 2 inch diameter) applications. It has a housing length of 1.250 inches...

          M138 Magnetic Pickup/Speed Sensor -- M138

          M334 Magnetic Pickup/Speed Sensor -- M334 This miniature magnetic pickup is highly sensitive which makes it appropriate for lower speed (300 to 500 rpm), small gear (less than 2 inch diam.) applications. Its housing is 1.25...

          M155 Magnetic Pickup/Speed Sensor -- M155 This special magnetic pickup is a low drag, flow meter sensor with thread x thread length x housing length = 5/8-18x1.125T x 2.250L.

          M107 Magnetic Pickup/Speed Sensor -- M107 This standard magnetic pickup can power other instruments. It has standard sensitivity, standard reach (1.125 inches), and a 5/8-18 inch thread.

          M304 Magnetic Pickup/Speed Sensor -- M304 This standard magnetic pickup has a standard sensitivity which makes it suitable for high speed (>500 rpm) applications. It has a long reach (5.125 inches) and a 3/4-16 thread.

          M102 Magnetic Pickup/Speed Sensor -- M102 This standard magnetic pickup has high sensitivity which makes it good for mid-speed (300 to 500 rpm), large gear (>12 inch diam.) applications. It has a standard reach (1.125inches) and...

          M131 Magnetic Pickup/Speed Sensor -- M131 This standard magnetic pickup has standard sensitivity long reach (4.000inches) and a 5/8-18 thread.

          M189 Magnetic Pickup/Speed Sensor -- M189 This standard magnetic pickup has standard sensitivity which makes it appropriate for high speed (>500 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.500 inches) and...

          M151 Magnetic Pickup/Speed Sensor -- M151 This standard magnetic pickup has standard sensitivity which makes it appropriate for higher speed (>500 rpm), larger gear(greater than 2 inch diam.)applications. This pickup has a medium reach (2.500 inches)and...

          M101 Magnetic Pickup/Speed Sensor -- M101 This standard magnetic pickup has standard sensitivity which makes it best suited for high speed (>500 rpm), large gear (>12 inch diam.) applications. It has a standard reach (1.125inches) and...

          M142 Magnetic Pickup/Speed Sensor -- M142 This standard magnetic pickup is ultra-sensitive making it appropriate for low speed (less than 300 rpm), larger gear(greater than 2 inch diam.)applications. It has a standard reach (1.125inches) and 5/8-18...

          M185 Magnetic Pickup/Speed Sensor -- M185 This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a long reach (4.000 inches) and a 5/8-18 thread.

          M184 Magnetic Pickup/Speed Sensor -- M184 This ultra-sensitive magnetic pickup is perfect for low speed (<300 rpm), larger gear (>2 inch diam.) applications. It has a medium reach (2.500 inches) and a 5/8-18 thread.


      如果需要技術咨詢、產品詢價、下單和索要產品技術資料，請與我們聯絡010-84282935。




















        Since 2007








        美國DMK Engineering Solutions公司

信德邁科技(北京)有限公司 CNMEC Technology



地址：北京市朝陽區望京街10號望京SOHO塔1C座2115室

 郵編：100102

電話：010-8428 2935,  8428 3983

手機：139 1096 2635

Http：//www.0591w.com

       E-mail：sales@cnmec.biz

傳真：010-8428 8762






          京ICP備08000876號-1

          京公網安備 11010502019740

          Since 2007 Strong Distribution & Powerful Partnerships
