TEMA天馬T系列 2300快速接頭
Rectus TEMA Hydraulic couplings T2300
PARKER RECTUS TEMA Hydraulic Couplings T2300 Series

TEMA Series T2300 PARKER RECTUS TEMA Hydraulic Couplings T2300 Series
Parker Rectus TEMA Quick Release Couplings

T2300 PDF資料下載
Rectus TEMA Hydraulic couplings T2300

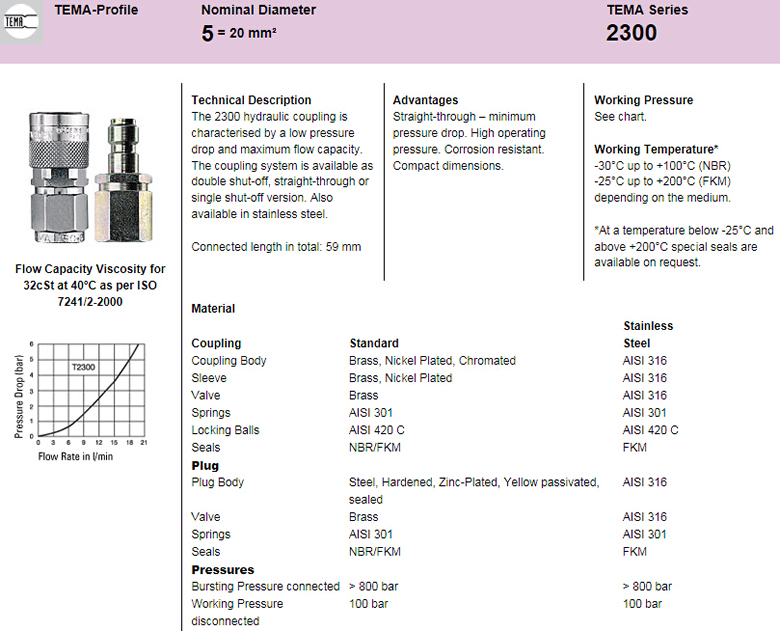

產品描述：

T2300系列液壓接頭的特點是低壓降和大流量。此系列接頭有雙截止、直通和單截 止可以選擇。
另有不銹鋼制可選。
總連接長度：59毫米
優點：直通型-確保最小降壓。高工作壓力。抗腐蝕。結構緊湊。
工作壓力：見表.
工作溫度：
-30°C ~ +100°C (NBR)
-25°C ~ to +200°C (FKM)
密封圈選擇取決于輸送介質
*當工作溫度低于-40°C 或高于+200°C時，可選用特殊的密封圈。

RECTUS SERIE T 2300 - HYDRAULIC QUICK COUPLINGS產品參數:

Couplings

	Connection A	Hex SW	L mm	D mm	Valve	Working press. in bar	Version	Seal	Part Number
Female Thread	G 1/8	15	38	18	with	200	Standard	NBR	2310-QC
	G 1/8	15	38	18	with	200	Standard	FKM	2310V
	G 1/8	15	38	18	with	200	Stainless Steel	FKM	2310RV 2)
	G 1/8	15	38	18	with	200	Stainless Steel	FKM	2310RFV 1) 2)
	G 1/8	15	38	18	without	200	Standard	NBR	2310UV
	G 1/8	15	38	18	without	200	Standard	FKM	2310VUV
	G 1/8	15	38	18	without	200	Stainless Steel	FKM	2310RVUV 2)

Plugs

	Connection A	Hex SW	L mm	Valve	Working press. in bar	Version	Seal	Part Number
Female Thread	G 1/8	15	36	with	200	Standard	NBR	2320
	G 1/8	15	36	with	200	Standard	FKM	2320V
	G 1/8	15	36	with	200	Stainless Steel	FKM	2320RV 2)
	G 1/8	15	36	with	200	Stainless Steel	FKM	2320RFV 1) 2)
	G 1/8	15	36	without	200	Standard		2320UV
	G 1/8	15	36	without	200	Stainless Steel		2320RUV 2)

Seal-Kit

Dust Protection

	Description	L mm	D mm	Material	Color	Part Number
	Coupling	55	15	PVC	Red	2315-QC
	Plug	55	15	PVC	Red	125-QC

注：
1) 閥材質：黃銅 Valve made of brass
2) 對于脈動壓力，壓力不能超過給定值的50% （For pulsating pressure ,the pressure must not exceed 50% of the given value.）

更多TEMA 快速接頭產品信息，請您關注產品細節頁面，或者來電咨詢我們：010-8428 2935 或者郵件至：sales@cnmec.biz
