TEMA Series FF5000/7500/10000
 |
天馬|特馬
TEMA-Profile |
通徑 Nominal Diameter
13/19/25.5 |
|
TEMA Series 系列
FF5000/7500/10000 |

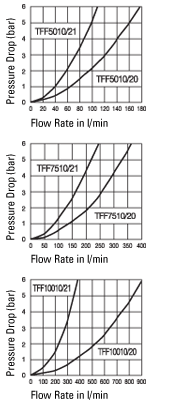

流量壓降曲線
Chart
Flow Capacity
Viscosity for 32cSt at 40°C as per ISO 7241/2-2000
根據標準ISO
7241/2-2000，液體粘度32cSt，溫度40℃。 |
特征描述
Technical Description
The coupling
system of the FF series has double shut-off, dry break and single-handed
operation. During uncoupling there is no oil loss, and during coupling
there is no inclusion of air into the system.
Connected length in
total:
FF5010 + FF5020 = 144 mm
FF5010 + FF5021 = 179 mm
FF7510 + FF7520 = 169 mm
FF7510 + FF7521 = 215 mm
FF10010 +
FF10020 = 230 mm
FF10010 + FF10021 = 269 mm
|
優點 Advantages
Dry break quick connect coupling.
With minimum pressure drop. Single-handed operation. No oil loss during
uncoupling. A safety closing ring prevents unintentional disconnection.
Also available with pressure eliminator, i.e. connection is possible
under static dynamic/residual pressure up to working
pressure.
|
工作壓力 Working Pressure
見具體規格表 See chart.
工作溫度 Working Temperature*
--30°C up to +100°C
(NBR)
-25°C up to +200°C
(FKM)
溫度取決于介質
*特殊工況溫度產品
溫度低于-25°C或高于+200°C，需要使用特殊的密封圈，請聯系我們 |
Material
Coupling |
Standard |
|
Coupling Body
Sleeve
Locking Ring
Valve
Springs
Locking Balls
Seals
Valve Holder
Thread Body |
Steel, QPQ-treated
Steel Hardened, Yellow Zinc
Plated,
Aquarez-treated
Brass, Zinc Chromated
Conversion Coated
Steel, Yellow Zinc Plated
AISI 301
AISI 420 C
NBR/PUR - FKM
Steel,
Yellow Zinc Plated,
Aquarez-treated
Steel, Yellow Zinc Plated,
Aquarez-treated |
|
| Plug |
|
|
Plug Connection Face
Valve
Springs
Seals
Valve Holder
Thread Body |
Steel Hardened,
Zinc Plated,
Aquarez-treated
Steel Hardened,
Zinc Plated,
Aquarez-treated
AISI 301
NBR/PUR - FKM
Brass, Hard-drawn
Steel, Yellow Zinc Plated
Aquarez-treated |
|
| Pressures |
Burst Pressure
coupled |
Work Pressure
uncouple |
FF5000
FF7500
FF10000 |
> 1500 bar
> 1500 bar
>1100 bar |
350 bar
350 bar
300 bar |
|
| 相關文檔 Documents |
|
|
安全須知
Safety Instructions |
安裝及維護說明
Installation & Maintenance |
操作說明
Operating
instructions |
Couplings
| |
尺寸
Dimension |
端口
Connection A |
Hex
SW |
L
mm |
D
mm |
工作壓力
Bar |
類型
Version |
密封
Seal |
訂貨號
Part Number |
內螺紋 Female Thread
|
1/2“ |
G 1/2 |
40 |
82 |
44 |
400 |
標準 |
NBR/PUR |
FF5010 C |
| 1/2“ |
G 1/2 |
40 |
82 |
44 |
400 |
標準 |
FKM |
FF5010 CV |
| 1/2“ |
G 3/4 |
40 |
82 |
44 |
400 |
標準 |
NBR/PUR |
FF5010-75 C |
| 1/2“ |
G 3/4 |
40 |
82 |
44 |
400 |
標準 |
FKM |
FF5010-75 CV |
| 3/4“ |
G 3/4 |
50 |
98 |
55 |
400 |
標準 |
NBR/PUR |
FF7510 C |
| 3/4“ |
G 3/4 |
50 |
98 |
55 |
400 |
標準 |
FKM |
FF7510 CV |
| 3/4“ |
G 1 |
50 |
106 |
55 |
400 |
標準 |
NBR/PUR |
FF7510-100 C |
| 3/4“ |
G 1 |
50 |
106 |
55 |
400 |
標準 |
FKM |
FF7510-100 CV |
| 1“ |
G 1 |
65 |
120 |
70 |
300 |
標準 |
NBR/PUR |
FF10010 C |
| 1“ |
G 1 |
65 |
120 |
70 |
300 |
標準 |
FKM |
FF10010 CV |
| 1“ |
G 1 1/4 |
65 |
120 |
70 |
300 |
標準 |
NBR/PUR |
FF10010-125 C |
| 1“ |
G 1 1/4 |
65 |
120 |
70 |
300 |
標準 |
FKM |
FF10010-125 CV |
| 1“ |
G 1 1/2 |
65 |
120 |
70 |
300 |
標準 |
NBR/PUR |
FF10010-150 C |
| 1“ |
G 1 1/2 |
65 |
120 |
70 |
300 |
標準 |
FKM |
FF10010-150 CV |
PLUGS
| |
尺寸
Dimension |
端口
Connection A |
Hex
SW |
L
mm |
D
mm |
工作壓力
Bar |
類型
Version |
密封
Seal |
訂貨號
Part Number |
內螺紋 Female Thread
|
1/2“ |
G 1/2 |
36 |
84 |
35 |
400 |
Standard |
NBR/PUR |
FF5020 C |
| 1/2“ |
G 1/2 |
36 |
84 |
35 |
400 |
Standard |
FKM |
FF5020 CV |
| 1/2“ |
G 3/4 |
36 |
90 |
40 |
400 |
Standard |
NBR/PUR |
FF5020-75 C |
| 1/2“ |
G 3/4 |
36 |
90 |
40 |
400 |
Standard |
FKM |
FF5020-75 CV |
| 3/4“ |
G 3/4 |
41 |
101 |
45 |
400 |
Standard |
NBR/PUR |
FF7520 C |
| 3/4“ |
G 3/4 |
41 |
101 |
45 |
400 |
Standard |
FKM |
FF7520 CV |
| 3/4“ |
G 1 |
50 |
112 |
55 |
400 |
Standard |
NBR/PUR |
FF7520-100 C |
| 3/4“ |
G 1 |
50 |
112 |
55 |
400 |
Standard |
FKM |
FF7520-100 CV |
| 1“ |
G 1 |
60 |
138 |
65 |
300 |
Standard |
NBR/PUR |
FF10020 C |
| 1“ |
G 1 |
60 |
138 |
65 |
300 |
Standard |
FKM |
FF10020 CV |
| 1“ |
G 1 1/4 |
65 |
138 |
70 |
300 |
Standard |
NBR/PUR |
FF10020-125 C |
| 1“ |
G 1 1/4 |
65 |
138 |
70 |
300 |
Standard |
FKM |
FF10020-125 CV |
| 1“ |
G 1 1/2 |
65 |
138 |
70 |
300 |
Standard |
NBR/PUR |
FF10020-150 C |
| 1“ |
G 1 1/2 |
65 |
138 |
70 |
300 |
Standard |
FKM |
FF10020-150 CV |
Seal-Kit
| |
Description |
Material |
Part Number |
|
Plug |
NBR |
FF5000-PSN |
| Plug |
FKM |
FF5000-PSV |
| Plug |
PUR |
FF5000-PSPU |
| Plug |
NBR |
FF7500-PSN |
| Plug |
FKM |
FF7500-PSV |
| Plug |
PUR |
FF7500-PSPU |
| Plug |
NBR |
FF10000-PSN |
| Plug |
FKM |
FF10000-PSV |
| Plug |
PUR |
FF10000-PSPU |
Dust Protection
| |
Description |
L mm |
D mm |
Material |
Color |
Part Number |
|
Coupling |
220 |
28 |
PVC |
Blue |
FF5016 |
| Plug |
220 |
28 |
PVC |
Blue |
FF5026 |
| Coupling |
250 |
42 |
PVC |
Blue |
FF7516 |
| Plug |
250 |
42 |
PVC |
Blue |
FF7526 |
| Coupling |
290 |
51 |
PVC |
Blue |
FF10016 |
| Plug |
290 |
51 |
PVC |
Blue |
FF10026 |
Plugs with Pressure Eliminator
| |
尺寸
Dimension |
端口
Connection A |
Hex
SW |
L
mm |
D
mm |
工作壓力
Bar |
類型
Version |
密封
Seal |
訂貨號
Part Number |
內螺紋 Female Thread
|
1/2“ |
G 1/2 |
36 |
120 |
40 |
400 |
Pressure Eli. |
NBR/PUR |
FF5021 C |
| 1/2“ |
G 1/2 |
36 |
120 |
40 |
400 |
Pressure Eli. |
FKM |
FF5021 CV |
| 1/2“ |
G 3/4 |
36 |
120 |
40 |
400 |
Pressure Eli. |
NBR/PUR |
FF5021-75 C |
| 1/2“ |
G 3/4 |
36 |
120 |
40 |
400 |
Pressure Eli. |
FKM |
FF5021-75 CV |
| 3/4“ |
G 3/4 |
50 |
146 |
56 |
400 |
Pressure Eli. |
NBR/PUR |
FF7521 C |
| 3/4“ |
G 3/4 |
50 |
146 |
56 |
400 |
Pressure Eli. |
FKM |
FF7521 CV |
| 3/4“ |
G 1/2 |
50 |
148 |
56 |
400 |
Pressure Eli. |
NBR/PUR |
FF7521-100 C |
| 3/4“ |
G 1/2 |
50 |
148 |
56 |
400 |
Pressure Eli. |
FKM |
FF7521-100 CV |
| 1“ |
G 1 |
55 |
178 |
60 |
300 |
Pressure Eli. |
NBR/PUR |
FF10021 C |
| 1“ |
G 1 |
55 |
178 |
60 |
300 |
Pressure Eli. |
FKM |
FF10021 CV |
| 1“ |
G 1 1/4 |
55 |
178 |
60 |
300 |
Pressure Eli. |
NBR/PUR |
FF10021-125 C |
| 1“ |
G 1 1/4 |
55 |
178 |
60 |
300 |
Pressure Eli. |
FKM |
FF10021-125 CV |
| 1“ |
G 1 1/2 |
55 |
178 |
60 |
300 |
Pressure Eli. |
NBR/PUR |
FF10021-150 C |
| 1“ |
G 1 1/2 |
55 |
178 |
60 |
300 |
Pressure Eli. |
FKM |
FF10021-150 CV |
Lubrication Nipple
| |
描述Description |
L mm |
D mm |
訂貨號Part Number |
|
Coupling |
48 |
29 |
GRF5 |
| Coupling |
52 |
38 |
GRF7 |
| Coupling |
52 |
50 |
GRF10 |
Couplings for Multiplate
| |
