Parker Autoclave 的 VRMM 系列微流量調節針閥用于流體精確計量，工作壓力可達 60,000 psi（4137 bar）。這些棒料閥采用精密錐形閥桿設計，可在精確匹配的可更換閥座中關閉。中壓SM系列針閥，壓力達到15000 psi（1034 bar），微計量針閥，VRMM系列，微計量閥達到60，000磅/平方英寸（4137巴）。VRMM系列千分尺針閥| VRMM系列千分尺針閥。
微調閥是為需要比標準調節桿更精確控制小流量的應用而設計的。筒和套管千分尺的設計允許重復設置。計量由作用在精確匹配的可更換閥座上的細錐形閥桿實現。使用40 TPI螺紋可實現非常精細的閥桿位置。桶和頂針在工廠進行適當?shù)挠?jì)量。這些閥門僅用于計量，不能用作切斷閥。最小流量是工廠設定的，出現在“0”位置。不要在零位以下操作閥門，否則會造成損壞。當需要關閉動作時，AE系列10V、30VM或60VM的相關關閉閥應與測微閥串聯安裝。
Parker Autoclave's VRMM Series micro-metering valves
VRMM Series MicroMetering Needle Valves超高壓流量控制閥PDF資料下載
除了它們的許多功能外，這些微量計量閥在各種應用中提供可靠和無故障的服務。
市場
? 石油和天然氣
? 石化
? 化工
? 研究
特點/優勢
? 桶和頂針設計允許重復設置。
? 每 0.025 英寸的桶格
? 25 個頂針部分，每個部分代表 0.001” 閥桿行程
? 一圈 = 0.025” 閥桿行程
? 冷加工 316 型不銹鋼閥體，帶不銹鋼填料壓蓋。 閥桿和閥座是冷加工的 316 型不銹鋼。
? 閥桿螺紋下方的填料是用于 10VRMM 和 30VRMM 閥門的 PTFE 和用于 60VRMM 的尼龍皮革。 有關包裝選項，請參閱技術信息部分。
? SpeedBite “W”連接用于 10VRMM 閥門，Parker AE 高壓錐形螺紋連接用于 30VRMM 和 60VRMM 閥門。
應用
? 高壓試驗工廠 High Pressure Pilot Plants
?
Research Panels
? 高壓流體處理系統
應用
? 高壓試驗工廠
? Research Panels
? 高壓流體處理系統
超高壓流量控制閥 ——
VRMM Series MicroMetering Needle Valves
流量控制閥：60VRMM4882、60VRMM4812、60VRMM6882 Autoclave valves
材質：不銹鋼
尺寸：1/8、 1/4、 3/8
工作壓力：60000psi
工作溫度：-252℃~649℃
Needle Valve,MicroMetering - VRMM Series 60,000PSI | #10VRMM2812
Technical Specifications
- Body Material: 316 Stainless Steel
- Maximum Working Pressure (psi): 15000
- Tube Size: 1/4" SpeedBite
- Stem Type: Reg
- Body Type: 2-Way Angle
- Tube Outside Diameter: 1/4 SpeedBite inch
- Stem Type: Reg
- Body Type: 2-Way Angle
- Maximum Operating Pressure: 15,000 psi
- Body Material: 316 Stainless Steel
Needle Valve,MicroMetering - VRMM Series 60,000PSI | #30VRMM4812
Technical Specifications
- Body Material: 316 Stainless Steel
- Maximum Working Pressure (psi): 30, 000
- Tube Size: 1/4" Cone and Thread
- Stem Type: Reg
- Body Type: 2-Way Angle
- Tube Outside Diameter: 1/4 Cone and Thread inch
- Stem Type: Reg
- Body Type: 2-Way Angle
- Maximum Operating Pressure: 30,000 psi
- Body Material: 316 Stainless Steel
Needle Valve,MicroMetering - VRMM Series 60,000PSI | #60VRMM4812
Technical Specifications
- Body Material: 316 Stainless Steel
- Tube Size: 1/4" Cone and Thread
- Maximum Working Pressure (psi): 60, 000
- Stem Type: Reg
- Body Type: 2-Way Angle
- Tube Outside Diameter: 1/4 Cone and Thread inch
- Stem Type: Reg
- Body Type: 2-Way Angle
- Maximum Operating Pressure: 60,000 psi
- Body Material: 316 Stainless Steel
Needle Valve,MicroMetering - VRMM Series 60,000PSI | #60VRMM6812
Technical Specifications
- Body Material: 316 Stainless Steel
- Tube Size: 3/8" Cone and Thread
- Maximum Working Pressure (psi): 60, 000
- Stem Type: Reg
- Body Type: 2-Way Angle
- Tube Outside Diameter: 3/8 Cone and Thread inch
- Stem Type: Reg
- Body Type: 2-Way Angle
- Maximum Operating Pressure: 60,000 psi
- Body Material: 316 Stainless Steel

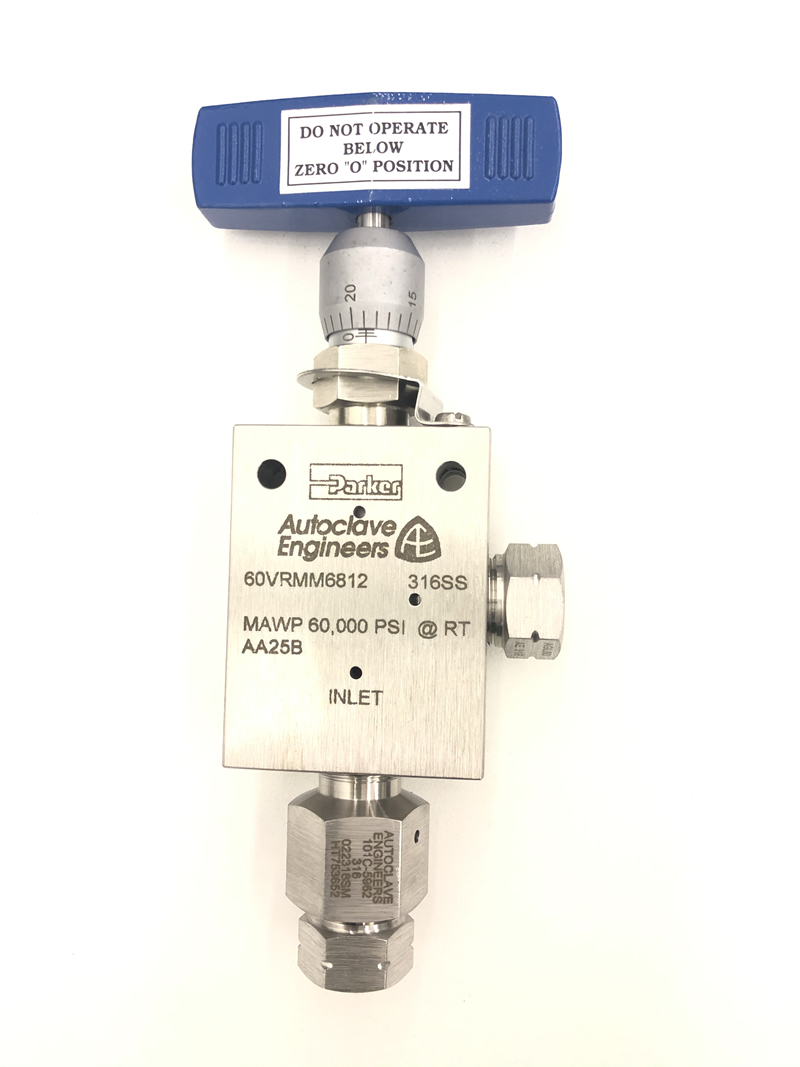

Parker Autoclave's VRMM Series micro-metering valves
實物照片分享
Needle Valve - VRMM MicroMetering Series 60,000 psi (4140 bar)
10VRMM, 15PVRMM (NPT), 30VRMM, 60VRMM Series
VRMM Series - MicroMetering Valve Catalog
Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.Medium Pressure SM Series Needle Valve with Pressures to 15,000 psi (1034 bar)Micro-Metering Needle Valve ，VRMM Series, Micro Metering Valves to 60,000 psi (4137 bar)。VRMM Series MicroMetering Needle Valves | VRMM Series MicroMetering Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.
MicroMetering valves are designed for applications where more precise control of small flows is required than is possible with a standard regulating stem. Barrel and Thimble micrometer design permits settings to be repeated. Metering is effected by a finely tapered stem acting in a precisely mated replaceable seat. Very fine stem position is achieved utilizing a 40 TPI thread. The Barrel and Thimble are set for proper metering at the factory. These valves are designed for metering only and cannot be used as a shutoff valve. Minimum flow is factory set and occurs at “0” position. DO NOT OPERATE THE VALVE BELOW THE ZERO POSITION OR DAMAGE WILL RESULT. When shutoff action is required, a correlated shutoff valve from AE series 10V, 30VM or 60VM should be installed in series with the MicroMetering valve.
MicroMetering Valve Features:
- Barrel and Thimble design permits repeatable settings.
- Barrel divisions every 0.025”.
- 25 Thimble divisions, each representing 0.001” stem travel.
- One revolution = 0.025” stem travel.
- Cold-worked type 316 stainless steel body with stainless steel packing gland. Stem and are cold-worked type 316 stainless steel.
- Packing below stem threads is Teflon for the 10VRMM and 30VRMM valves and nylon- leather for the 60VRMM. For packing options, see Technical Information Section.
- SpeedBite “W” connections are used on the 10VRMM and AE High Pressure coned-and threaded connections on 30VRMM and 60VRMM.
Autoclave valves are complemented by a complete line of fittings, tubing, check valves and line filters.
VRMM Series valves are furnished complete with connection components, unless otherwise specified.
Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service 'Autoclave stocks select products' Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
Needle Valve,MicroMetering - VRMM Series 60,000PSI
Parker Autoclave's VRMM Series micro-metering valves are used for the precise metering of fluids up to 60,000 psi (4137 bar). These bar stock valves are designed with a finely tapered stem that closes in a precisely mated replaceable seat.
Technical Specifications
Full Product Description
Parker Autoclave's VRMM Series micro-metering valves are designed for applications where more precise control of small flows is required than is possible with a standard regulating stem. Barrel and Thimble micrometer design permits settings to be repeated. Metering is effected by a finely tapered stem acting in a precisely mated replaceable seat. Very fine stem position is achieved utilizing a 40 TPI thread. The Barrel and Thimble are set for proper metering at the factory.
These valves are designed for metering only and cannot be used as a shutoff valve. Minimum flow is factory set and occurs at “0” position. DO NOT OPERATE THE VALVE BELOW THE ZERO POSITION OR DAMAGE WILL RESULT. When shutoff action is required, a correlated shutoff valve from Parker AE series 10V, 30VM or 60VM should be installed in series with the micro-metering valve.
Along with their many features these micro-metering valves provide dependable and trouble free service in wide variety of applications.
Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research
Features/Benefits:
- Barrel and Thimble design permits repeatable settings.
- Barrel divisions every 0.025”
- 25 Thimble divisions, each representing 0.001” stem travel
- One revolution = 0.025” stem travel
- Cold-worked type 316 stainless steel body with stainless steel packing gland. Stem and seat are cold-worked type 316 stainless steel.
- Packing below stem threads is PTFE for the 10VRMM and 30VRMM valves and nylon leather for the 60VRMM. For packing options, see Technical Information Section.
- SpeedBite “W” connections are used on the 10VRMM valves and Parker AE High Pressure coned-and-threaded connections on 30VRMM and 60VRMM valves.
