Parker Autoclave Engineers 電子流量控制閥

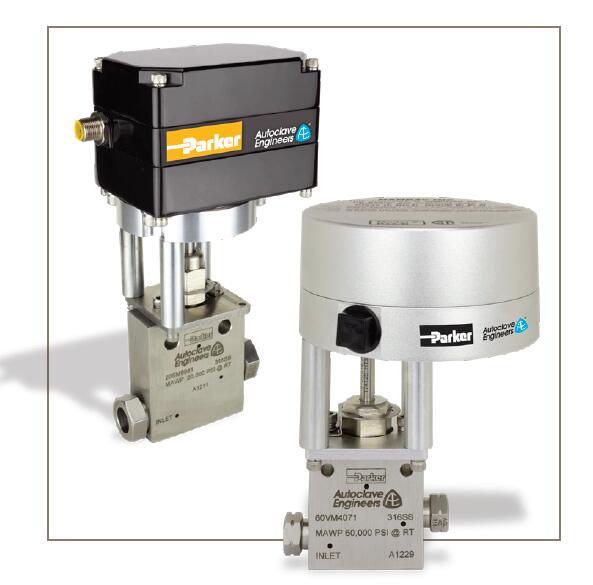

Autoclave Engineers Electric Flow Control Valve
Actuators Micro-Metering Needle Valve Electric Flow Control Pressure to 60,000 psi (4137 bar)

Parker Autoclave微計量流量控制閥設計用于600°F（315°C）或以下溫度下工業和研究應用中的流量或壓力調節。使用我們為許多不同壓力和管道連接尺寸配置的標準微計量閥，這些閥門能夠使用電動、多圈微處理器控制的執行機構進行壓力高達60000 psi的非常精細的流量控制。這兩個高精度、高質量組件的組合，提供了一個優越的低流量、高壓控制閥，可用于液體或氣體。

需要在高壓下遠程控制工藝流程，這使得該閥門成為工藝操作的重要組件。PARKER高壓滅菌器工程師現在有一個流量控制閥在幾個型號。Parker帕克高壓滅菌器工程師控制閥利用我們的標準千分尺閥門耦合到電動執行機構。這兩個高精度、高質量組件的結合，為液體和氣體提供了一個優越的低流量控制閥。

Parker Autoclave Engineers Electric Flow Control Valve
電動流量控制PDF技術資料下載

規格參數：

- 尺寸： 1/8", 1/4" and 3/8"
- 壓力：Pressures to 60,000 psi (4137 bar)
- 流量值：Rated Cv (all valve series): 0.004
- Precise control 精準控制
- 溫度：Temperatures: -100°F to +600°F
- 適用電壓 ： 24Vdc 4-20mA or 0-10 Vac controlled

電動流量控制閥特點：

微處理器控制的電機保證在啟動、運行或停止閥門旋轉時的電壓、電流和扭矩控制。微處理器還確保準確的閥桿位置和重復性。

- 功率要求：至少24伏直流電/50瓦
- 控制輸入：4-20毫安（200歐姆）或0-10伏直流（18千歐）
- 轉速：每分鐘10轉（大轉彎6轉）
- 工作溫度：-20華氏度（-30攝氏度）至185華氏度（85攝氏度）
- 提供兩（2）根引線電纜
-陽極氧化鋁外殼，緞面陽極氧化，IP65（NEMA 4）防風雨

Needle Valve Actuators Model FRC - Electric, 24 VDC Flow Regulating Control/Shutoff
10V2, SW, SM, VM Series Needle Valves to 60,000 psi (4140 bar)

性能特點：

IP65防風雨外殼微處理器控制的電機確保在啟動、運行或停止閥門旋轉時實現電壓、電流和扭矩控制。微處理器還確保準確的閥桿位置和重復性。The IP65 weatherproof enclosure microprocessor controlled motor guarantees optimum voltage, current and torque control when starting, running or stopping valve rotation. The microprocessor also assures accurate stem location and repeatability.

The Parker Autoclave Engineers Micro-Metering Flow Control Valves are designed for modulating flow or pressure control in industrial and research applications at temperatures of 600°F (315°C) or below. Using our standard Micro-Metering valves configured for many different pressures and tube connection sizes, these valves are capable of very fine flow control with pressures up to 60,000 psi using an electric, multi-turn microprocessor controlled actuator. The combination of these two precision, high quality components, provide a superior low flow, high pressure control valve for use with either liquid or gas.

The need to remotely control process flow at high pressure makes this valve a vital component to processing operations. Parker Autoclave Engineers now has a flow control valve available in several models.Parker Autoclave Engineers control valve utilizes our standard Micrometering valve coupled to an electric actuator. The combination of these two precision, high quality components, provide a superior low flow control valve for use with liquids and gases.

Needle Valve Actuators Model FRC - Electric Actuator, 24 VDC Flow Regulating Control/Shutoff
10V2, SW, SM, VM Series Needle Valves to 60,000 psi (4140 bar)

Actuators Micro-Metering Needle Valve Electric Flow Control Pressure to 60,000 psi (4137 bar)
Parker Autoclave Engineers Micro-Metering Flow Control Valves

- Electric Flow Control Valve Operation and Maintenance Manual Catalog: 02-9295ME October 2013
超高壓電動流量控制閥操作手冊
