       產品分類























          Snap-tite快速接頭

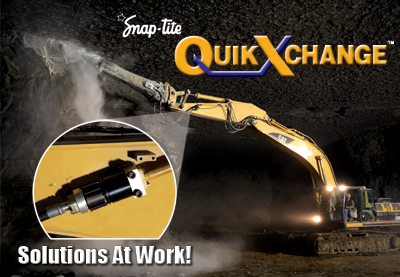

      QuikXChange Excavator Coupling (QX Series) 挖掘機用快速接頭




      Snap-tite has developed the QuikXChange quick disconnect coupling specifically for Excavator attachments. The specialized coupling has been developed with an extra low pressure drop that will help survive surge flow as well as pulsating hammer flow. The threaded drybreak design connects and disconnects without spillage, prevents introduction of dirt into the hydraulic system, while easily connecting against trapped static pressure.





















            Item #
            Coupling Half
            Coupling Size
            End Fitting Size
            End Fitting Type
            Body Material
            Seal Material
            Maximum Operating Pressure



            58C20-24FBWMP
            Coupler (Female)
            1 1/4 in.
            1 1/2 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C20-20FBWMP
            Coupler (Female)
            1 1/4 in.
            1 1/4 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C20-16FBWMP
            Coupler (Female)
            1 1/4 in.
            1 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C20-24JSWMP
            Coupler (Female)
            1 1/4 in.
            1 1/2 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C20-20JSWMP
            Coupler (Female)
            1 1/4 in.
            1 1/4 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C20-16JSWMP
            Coupler (Female)
            1 1/4 in.
            1 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C16-16FBWMP
            Coupler (Female)
            1 in.
            1 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C16-12JSWMP
            Coupler (Female)
            1 in.
            3/4 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58C16-16JSWMP
            Coupler (Female)
            1 in.
            1 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N20-24FB
            Nipple (Male)
            1 1/4 in.
            1 1/2 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N20-20FB
            Nipple (Male)
            1 1/4 in.
            1 1/4 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N20-16FB
            Nipple (Male)
            1 1/4 in.
            1 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N20-24JS
            Nipple (Male)
            1 1/4 in.
            1 1/2 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N20-20JS
            Nipple (Male)
            1 1/4 in.
            1 1/4 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N20-16JS
            Nipple (Male)
            1 1/4 in.
            1 in.
            JIS B2351 Type "O" Port (BSPP Threads)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N16-16FB
            Nipple (Male)
            1 in.
            1 in.
            ISO 6162-2 Type 1 Flange
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N16-12JS
            Nipple (Male)
            1 in.
            3/4 in.
            JIS B2351 Type "O" Port Connection (BSPP)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar




            58N16-16JS
            Nipple (Male)
            1 in.
            1 in.
            JIS B2351 Type "O" Port Connection (BSPP)
            Steel
            Urethane/Nitrile
            6200 psi

      427 bar
