Snap-Tite穿板接頭、多用途面板安裝產品系列Multi-Coupling Panels

應用：
　　 機床、汽車、注塑模具、飛機引擎測試、近海鉆探和各種測試臺等。
　　 防止油路的交叉連接，提供工作效率；
　　 根據不同場合要求設計為自動和手動鎖緊；
　　 尺寸規格：1/8″—4″；
　　 可以根據不同的工作環境和技術指標進行設計制作；

穿板接頭、面板安裝接頭

HN-3 Series
MP-1 Series
HP Series
LN Series
BN Series
SJ Series
Specialty Products

SPECIALTY PRODUCTS - Snap-tite has a great deal of expertise in designing and manufacturing panels to prevent cross connection of circuits. Labor efficiencies are greatly improved by the quick connection of multiple lines in one easy-to-use panel design. Special panel couplings can also be created to meet the customer's specific needs.

Specialty Products : Multi-Coupling Panels

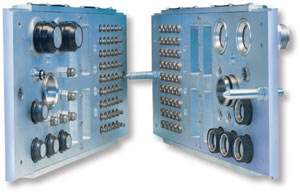

Special Multi-Coupling Panels

規格參數：

- Coupling sizes from 1/8" thru 4" available

- Wide variety of coupling materials and seal materials available

- All valving options are available

- Working pressures to 40,000 psi (2759 bar)

- Automatic or manual locking devices

BENEFITS

Snap-tite will design, manufacture and build panels to meet specific customer requirements. Any number and type of panel couplings can be incorporated into the design. By combining multiple connections into one panel, higher profitability can be realized. Panel couplings may also be purchased individually. Please contact Snap-tite to verify dimensions prior to machining any panel components.
