Snap-tite 71 Series : Drybreak, Non-Spill Couplings
Flush face, Dry Break, General Purpose, Hydraulic Couplings
Snap-tite 71 Series Couplers (hydraulic) up to 10,000 psi connect with Snap-tite 71 Series Nipples.
These are double shut-off, non-spill, push to connect quick couplings for high pressure applications. Couplers and nipples are available in a wide range of sizes up to 2 inch with material options including steel, 316 stainless steel, or high pressure stainless steel.
Parker's high pressure stainless steel, non-spill quick couplers and nipples are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.
Note: The 71-3 style couplers and nipples are interchangeable with the previous Snap-tite design couplers and nipples in sizes 3/8", 1/2", and 3/4". Old style 1" couplers and nipples (71-2C16 and 71-2N16) are not interchangeable with the 71-3 design.

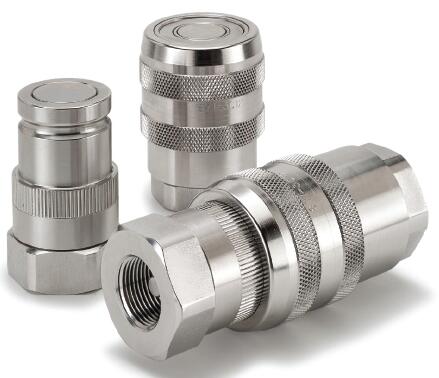

Parker’s Snap-tite 71 Series couplings
Snap-tite 71 Series High Pressure, Push-to-Connect Non Spill-Quick Couplings
| Body Size (inch): |
1/4, 3/8, 1/2, 3/4, 1, 2 |
| Maximum Working Pressure (psi): |
Up to 10,000 |
| Maximum Working Pressure (bar): |
Up to 689 |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Material: |
Steel, Stainless steel |
| Application: |
Hydraulic, non-spill |
| Brand: |
Parker |
| Vacuum: |
No |
| End Fitting Type: |
Female Thread |
| Interchange Type: |
Snap-tite 71 |
|
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Valve Style: |
Non-spill |
| Plating: |
Zinc with clear trivalent chromate |
| Sleeve Type: |
Push to connect |
| Locking Mechanism: |
Locking balls |
Technical Characteristics:
- Sizes: 1/4” – 2”
- Materials: Steel, 316 Stainless Steel, High Pressure Stainless Steel
- Port Ends: Female NPTF, Female SAE
- Seal Options: Nitrile, Fluorocarbon, Ethylene Propylene
- Other Coupler options include: Sleeve Lock
Markets:
- Industrial
- Oil and Gas
- Construction
Features/Benefits:
- Push-to-connect operation makes connection easy
- Corrosion resistant 316 stainless steel and high pressure stainless steel material options for demanding applications
- Non-spill valves minimize fluid loss when disconnecting to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flush face valves minimize the amount of air that can enter the system when connecting fluid lines
Applications:
- In-plant equipment
- Oil exploration and production
- Construction Equipment
Literature and Reference Materials
Catalog 3800 Quick Coupling Products
Snap-tite 71 Series Catalog
Snap-tite 71 Series Product Bulletin
High Pressure Stainless, Non-Spill Quick Couplings, Sizes to 2 inch, (hydraulic) up to 10,000 psi - Snap-tite 71 Series Couplers
Showing 1 to 37 of 37 entries
訂貨型號(hào) |
壓力PSI |
|
材質(zhì) |
尺寸 |
螺紋 |
|
| 71-1C32-24EF |
5000 |
2 |
Steel |
1 7/8 - 12 |
UNF |
Female |
| 71-1C32-24F |
5000 |
2 |
Steel |
1 1/2 - 11 1/2 |
NPT |
Female |
| 71-1C32-32EF |
5000 |
2 |
Steel |
2 1/2 - 12 |
UNF |
Female |
| 71-1C32-32F |
5000 |
2 |
Steel |
2 - 11 1/2 |
NPT |
Female |
| 71-3C12-12EF |
7500 |
3/4 |
Steel |
1 1/16 - 12 |
UNF |
Female |
| 71-3C12-12F |
7500 |
3/4 |
Steel |
3/4 - 14 |
NPTF |
Female |
| 71-3C16-16EF |
7500 |
1 |
Steel |
1 5/16 - 12 |
UNF |
Female |
| 71-3C16-16F |
7500 |
1 |
Steel |
1 - 11 1/2 |
NPTF |
Female |
| 71-3C16-20EF |
7500 |
1 |
Steel |
1 5/8 - 12 |
UNF |
Female |
| 71-3C16-20F |
7500 |
1 |
Steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| 71-3C4-4EF |
10000 |
1/4 |
Steel |
7/16 - 20 |
UNF |
Female |
| 71-3C4-4F |
10000 |
1/4 |
Steel |
1/4 - 18 |
NPTF |
Female |
| 71-3C6-4F |
10000 |
3/8 |
Steel |
1/4 - 18 |
NPTF |
Female |
| 71-3C6-6EF |
10000 |
3/8 |
Steel |
9/16 - 18 |
UNF |
Female |
| 71-3C6-6F |
10000 |
3/8 |
Steel |
3/8 - 18 |
NPTF |
Female |
| 71-3C6-8F |
10000 |
3/8 |
Steel |
1/2 - 14 |
NPTF |
Female |
| 71-3C8-8EF |
10000 |
1/2 |
Steel |
7/8 - 14 |
UNF |
Female |
| 71-3C8-8F |
10000 |
1/2 |
Steel |
1/2 - 14 |
NPTF |
Female |
| S71-3C12-12EF |
5000 |
3/4 |
316 Stainless steel |
1 1/16 - 12 |
UNF |
Female |
| S71-3C12-12F |
5000 |
3/4 |
316 Stainless steel |
3/4 - 14 |
NPSF |
Female |
| S71-3C16-16EF |
4000 |
1 |
316 Stainless steel |
1 5/16 - 12 |
UNF |
Female |
| S71-3C16-16F |
4000 |
1 |
316 Stainless steel |
1 - 11 1/2 |
NPSF |
Female |
| S71-3C16-20EF |
4000 |
1 |
316 Stainless steel |
1 5/8 - 12 |
UNF |
Female |
| S71-3C16-20F |
4000 |
1 |
316 Stainless steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| S71-3C4-4EF |
5000 |
1/4 |
316 Stainless steel |
7/16 - 20 |
UNF |
Female |
| S71-3C4-4F |
5000 |
1/4 |
316 Stainless steel |
1/4 - 18 |
NPTF |
Female |
| S71-3C6-6EF |
5000 |
3/8 |
316 Stainless steel |
9/16 - 18 |
UNF |
Female |
| S71-3C6-6F |
5000 |
3/8 |
316 Stainless steel |
3/8 - 18 |
NPSF |
Female |
| S71-3C6-8F |
5000 |
3/8 |
316 Stainless steel |
1/2 - 14 |
NPSF |
Female |
| S71-3C8-8EF |
5000 |
1/2 |
316 Stainless steel |
7/8 - 14 |
UNF |
Female |
| S71-3C8-8F |
5000 |
1/2 |
316 Stainless steel |
1/2 - 14 |
NPSF |
Female |
| SH71-3C12-12F |
7500 |
3/4 |
High pressure stainless steel |
3/4 - 14 |
NPSF |
Female |
| SH71-3C16-16F |
7500 |
1 |
High pressure stainless steel |
1 - 11 1/2 |
NPSF |
Female |
| SH71-3C4-4F |
10000 |
1/4 |
High pressure stainless steel |
1/4 - 18 |
NPTF |
Female |
| SH71-3C6-6EF |
10000 |
3/8 |
High pressure stainless steel |
9/16 - 18 |
UNF |
Female |
| SH71-3C6-6F |
10000 |
3/8 |
High pressure stainless steel |
3/8 - 18 |
NPSF |
Female |
| SH71-3C8-8F |
10000 |
1/2 |
High pressure stainless steel |
1/2 - 14 |
NPSF |
Female |
Show 25 50 100 All entries Previous 1 Next
High Pressure Stainless, Non-Spill Quick Couplings, Sizes to 2 inch, (hydraulic) up to 10,000 psi - Snap-tite 71 Series Nipples
Showing 1 to 36 of 36 entries
| 71-3N12-12EF |
7500 |
3/4 |
Steel |
1 1/16 - 12 |
UNF |
Female |
| 71-3N12-12F |
7500 |
3/4 |
Steel |
3/4 - 14 |
NPTF |
Female |
| 71-3N16-16EF |
7500 |
1 |
Steel |
1 5/16 - 12 |
UNF |
Female |
| 71-3N16-16F |
7500 |
1 |
Steel |
1 - 11 1/2 |
NPTF |
Female |
| 71-3N16-20EF |
7500 |
1 |
Steel |
1 5/8 - 12 |
UNF |
Female |
| 71-3N16-20F |
7500 |
1 |
Steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| 71-3N4-4EF |
10000 |
1/4 |
Steel |
7/16 - 20 |
UNF |
Female |
| 71-3N4-4F |
10000 |
1/4 |
Steel |
1/4 - 18 |
NPTF |
Female |
| 71-3N6-4F |
10000 |
3/8 |
Steel |
1/4 - 18 |
NPTF |
Female |
| 71-3N6-6EF |
10000 |
3/8 |
Steel |
9/16 - 18 |
UNF |
Female |
| 71-3N6-6F |
10000 |
3/8 |
Steel |
3/8 - 18 |
NPTF |
Female |
| 71-3N6-8F |
10000 |
3/8 |
Steel |
1/2 - 14 |
NPTF |
Female |
| 71-3N8-8EF |
10000 |
1/2 |
Steel |
7/8 - 14 |
UNF |
Female |
| 71-3N8-8F |
10000 |
1/2 |
Steel |
1/2 - 14 |
NPTF |
Female |
| 71N32-24EF |
5000 |
2 |
Steel |
1 7/8 - 12 |
UNF |
Female |
| 71N32-24F |
5000 |
2 |
Steel |
1 1/2 - 11 1/2 |
NPT |
Female |
| 71N32-32F |
5000 |
2 |
Steel |
2 - 11 1/2 |
NPT |
Female |
| S71-3N12-12EF |
5000 |
3/4 |
316 Stainless steel |
1 1/16 - 12 |
UNF |
Female |
| S71-3N12-12F |
5000 |
3/4 |
316 Stainless steel |
3/4 - 14 |
NPSF |
Female |
| S71-3N16-16EF |
5000 |
1 |
316 Stainless steel |
1 5/16 - 12 |
UNF |
Female |
| S71-3N16-16F |
5000 |
1 |
316 Stainless steel |
1 - 11 1/2 |
NPSF |
Female |
| S71-3N16-20EF |
4000 |
1 |
316 Stainless steel |
1 5/8 - 12 |
UNF |
Female |
| S71-3N16-20F |
4000 |
1 |
316 Stainless steel |
1 1/4 - 11 1/2 |
NPT |
Female |
| S71-3N4-4EF |
5000 |
1/4 |
316 Stainless steel |
7/16 - 20 |
UNF |
Female |
| S71-3N4-4F |
5000 |
1/4 |
316 Stainless steel |
1/4 - 18 |
NPTF |
Female |
| S71-3N6-6EF |
5000 |
3/8 |
316 Stainless steel |
9/16 - 18 |
UNF |
Female |
| S71-3N6-6F |
5000 |
3/8 |
316 Stainless steel |
3/8 - 18 |
NPSF |
Female |
| S71-3N8-8EF |
5000 |
1/2 |
316 Stainless steel |
7/8 - 14 |
UNF |
Female |
| S71-3N8-8F |
5000 |
1/2 |
316 Stainless steel |
1/2 - 14 |
NPSF |
Female |
| SH71-3N12-12F |
10000 |
3/4 |
High pressure stainless steel |
3/4 - 14 |
NPSF |
Female |
| SH71-3N16-16F |
7500 |
1 |
High pressure stainless steel |
1 - 11 1/2 |
NPSF |
Female |
| SH71-3N4-4F |
4000 |
1/4 |
High pressure stainless steel |
1/4 - 18 |
NPTF |
Female |
| SH71-3N6-6EF |
10000 |
3/8 |
High pressure stainless steel |
9/16 - 18 |
UNF |
Female |
| SH71-3N6-6F |
4000 |
3/8 |
High pressure stainless steel |
3/8 - 18 |
NPSF |
Female |
| SH71-3N8-8EF |
10000 |
1/2 |
High pressure stainless steel |
7/8 - 14 |
UNF |
Female |
| SH71-3N8-8F |
10000 |
1/2 |
High pressure stainless steel |
1/2 - 14 |
NPSF |
Female |
Show 25 50 100 All entries Previous 1 Next
|
