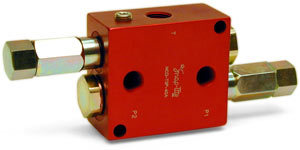

Snap-Tite MCD Series Dual Differential Relief Valves with Make Up Checks

MCD RELIEF VALVE - Snap-tite's MCD relief valve features two RDC cartridges and two soft seat free reverse flow check valves in a single body. This style of relief valve is best applied in a cylinder actuator braking system where pressure surges are relieved to an unequal volume displacement. The make-up checks prevent cavitation or pressure surge rise by allowing oil to be drawn from or relieved to the reservoir.

Item #	Connection Size	Seal Material
MCD-T12S-15A	Screw Adjustable 3/4" SAE, 500-1500 psi @ 3 gpm	Buna N
MCD-T12S-25	Screw Adjustable 3/4" SAE, 500-2500 psi @ 3 gpm	Viton
MCD-T12S-25A	Screw Adjustable 3/4" SAE, 500-2500 psi @ 3 gpm	Buna N
MCD-T12S-40	Screw Adjustable 3/4" SAE, 1000-4000 psi @ 3 gpm	Viton
MCD-T12S-40A	Screw Adjustable 3/4" SAE, 1000-4000 psi @ 3 gpm	Buna N
MCD-T16S-25A	Screw Adjustable 1" SAE, 500-2500 psi @ 3 gpm	Buna N
MCD-T16S-40	Screw Adjustable 1" SAE, 1000-4000 psi @ 3 gpm	Viton
MCD-T16S-40A	Screw Adjustable 1" SAE, 1000-4000 psi @ 3 gpm	Buna N
MCD-T3P-15A	Screw Adjustable 3/8" NPTF, 500-1500 psi @ 3 gpm	Buna N
MCD-T3P-25	Screw Adjustable 3/8" NPTF, 500-2500 psi @ 3 gpm	Viton
MCD-T3P-25A	Screw Adjustable 3/8" NPTF, 500-2500 psi @ 3 gpm	Buna N
MCD-T3P-40	Screw Adjustable 3/8" NPTF, 1000-4000 psi @ 3 gpm	Viton
MCD-T3P-40A	Screw Adjustable 3/8" NPTF, 1000-4000 psi @ 3 gpm	Buna N
MCD-T4P-15	Screw Adjustable 1/2" NPTF, 500-1500 psi @ 3 gpm	Viton
MCD-T4P-15A	Screw Adjustable 1/2" NPTF, 500-1500 psi @ 3 gpm	Buna N
MCD-T4P-25	Screw Adjustable 1/2" NPTF, 500-2500 psi @ 3 gpm	Viton
MCD-T4P-25A	Screw Adjustable 1/2" NPTF, 500-2500 psi @ 3 gpm	Buna N
MCD-T4P-40	Screw Adjustable 1/2" NPTF, 1000-4000 psi @ 3 gpm	Viton
MCD-T4P-40A	Screw Adjustable 1/2" NPTF, 1000-4000 psi @ 3 gpm	Buna N
MCD-T6P-15A	Screw Adjustable 3/4" NPTF, 500-1500 psi @ 3 gpm	Buna N
MCD-T6P-25	Screw Adjustable 3/4" NPTF, 500-2500 psi @ 3 gpm	Viton
MCD-T6P-25A	Screw Adjustable 3/4" NPTF, 500-2500 psi @ 3 gpm	Buna N
MCD-T6P-40	Screw Adjustable 3/4" NPTF, 1000-4000 psi @ 3 gpm	Viton
MCD-T6P-40A	Screw Adjustable 3/4" NPTF, 1000-4000 psi @ 3 gpm	Buna N
MCD-T8P-25	Screw Adjustable 1" NPTF, 500-2500 psi @ 3 gpm	Viton
MCD-T8P-25A	Screw Adjustable 1" NPTF, 500-2500 psi @ 3 gpm	Buna N
MCD-T8P-40	Screw Adjustable 1" NPTF, 1000-4000 psi @ 3 gpm	Viton
MCD-T8P-40A	Screw Adjustable 1" NPTF, 1000-4000 psi @ 3 gpm	Buna N
MCD-T8S-25A	Screw Adjustable 1/2" SAE, 500-2500 psi @ 3 gpm	Buna N
MCD-T8S-40	Screw Adjustable 1/2" SAE, 1000-4000 psi @ 3 gpm	Viton
MCD-T8S-40A	Screw Adjustable 1/2" SAE, 1000-4000 psi @ 3 gpm	Buna N
