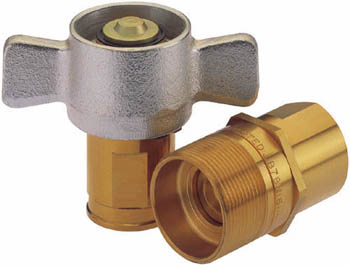

Thread-to-Connect, Drybreak, No-Spill Quick Disconnect Coupling - Snap-tite 78 Series

Snap-tite 78 Series應用：
油田設備、礦山機械、沙和鹽撒布機、垃圾清理車、傳動平板車和其它重型液壓機械。

產品特性：

• 螺紋連接處帶有蝶形或六角螺母，易于連接；
• 可以與Aeroquip FD5100系列和Parker6100系列互換；
• 平面設計，基本杜絕介質泄漏和氣泡混入，同時便于系統檢查和清洗；
• 膠接密封可以在沒有沖刷式密封的情況下連接和拆卸；
• 材質：黃銅
• 工作壓力：最高到3000psi；
• 尺寸規格：3/4″—11/2″
• 選型資料（插入鏈接）
• Rugged Construction - Brass body with zinc yellow dichromate plated sleeve
• Heavy Duty Wing Nut or Hex Nut - allows for easy connection of threaded units
• Interchangeable with Competition - Aeroquip 5100, Parker 6100, Hansen 96, & Perfecting W Series
• Sizes Available - 3/4" thru 1-1/2"
• Working Pressure - up to 3,000 psi (207 bar) with 4,500 psi (310 bar) proof pressure

Snap-tite 78 Series couplings PDF_下載

Snap-tite 78 Series - Snap-tite's heavy duty 78 Series thread-to-connect couplings are designed for most industrial fluid applications plus they are ideal for oil well equipment, sand and salt spreaders, dump and demolition trailers, live bed trailers and other heavy duty applications. The 78 Series is interchangeable with many other manufacturers compatible coupling.

Snap-tite 78 Series : Drybreak, Non-Spill Couplings
Thread-to-Connect, Dry Break, Hydraulic Interchange coupling

BENEFITS

Snap-tite 78 Series couplings also connect under pressure due to a bonded valve seal which prevents seal washout. The operating pressure of 3,000 psi (207 bar) is possible in both the connected and disconnected modes and a steel flange is available for bulkhead mounting of the nipple half. This unit can also handle vacuum applications.
