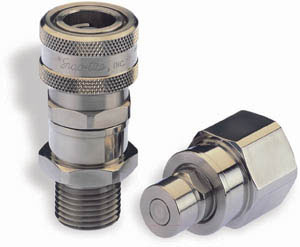

Snap-Tite 77 Series High Pressure Couplings
應用：
液壓回路、測試臺和淺海鉆井以及加工平臺的液壓測試設備。
外部采用鎖簧聯鎖保護結構，確保安全、無誤連接；內部采用安全套筒鎖結構，防止意外松脫；
平面設計，基本杜絕介質泄漏和氣泡混入，同時便于系統檢查和清洗；
耐汚、重載式結構，可以承受惡劣的使用環境；
流線型設計、壓力損耗低；
材質：高強度鋼表面鍍鋅或鎳、316不銹鋼；
尺寸規格：1/4″
工作壓力：36000psi
77 Series - The 77 Series quick disconnect is designed for applications such as hydraulic test stands, hydro testing and offshore drilling and production platforms where high pressure fluids and cleanliness is mandatory. This product is capable of handling working pressures to 36,000 psi (2483 bar) when supplied with any one of a wide variety of Autoclave Engineers cone and threaded end fittings
77 Series : Drybreak, Non-Spill Couplings
Ultra High Pressure, Dry Break Coupling
FEATURES
- Dry Break - Flush valve minimizes fluid loss and air inclusion.
- Rugged Construction - Heavy duty design with superior flow characteristics
- Operating Pressures - To 36,000 psi (2483 bar)
- Available Materials -- Plated high strength steel or 316 stainless steel
- Positive Lock -- Proven dog-lock mechanism provides a safe connection & eliminates ball brinelling
- Sleeve Lock Standard - Internal sleeve lock as a safety feature
- End Fitting Versatility -- Two piece body construction allows for many end fitting options
BENEFITS
This coupling comes standard with an internal safety sleeve lock to prevent accidental disconnection when pressurized. In addition to this safety feature, this unit can also be supplied in 316 stainless steel or high strength steel with yellow zinc dichromate or electroless nickel plating allowing it to be used with a wide variety of media.
|
