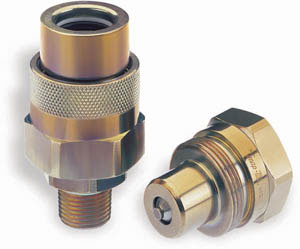

Snap-tite 76 Series screw-together coupling

應用：
　　 液壓工具和救生設備等。

產品特性：
　　 雙單向閥，為零泄漏軟座提升閥結構；
　　 可以帶壓操作；
　　 材質：鍍鋼；
　　 尺寸規格：1/4″和3/8″；
　　 工作壓力：14500psi；
　　 螺紋連接，確保安全；
　　 選型資料（插入鏈接）

Snap-tite 76 Series screw-together coupling PDF_下載

Snap-tite 76 Series : High Pressure Coupling High Pressure, Thread-to-Connect Hydraulic Coupling

FEATURES 產品特性：

Heavy Duty Threaded Retainer - provides maximum strength and safety
Construction - High strength steel construction with yellow zinc dichromate plating
Working Pressures to 14,500 psi (1,000 bar)
Soft Seated Poppet Valves - insure zero leakage & higher flow rates than ball check designs
Sizes - Available in 1/4" and 3/8"
Interchangeable with Competitive models
End Fitting Versatility - Wide range of end fittings are available

BENEFITS

The 76 Series coupler's threaded sleeve is specially designed with knurling on the front to facilitate connection by hand and hex on the back to allow connection with the use of a wrench. The 76 Series Quick Disconnects will interchange with Parker 3000 Series, Faster PVV Series, Perfecting 300 Series, Powerteam C39, and Enerpac C-604 Series to name a few.
