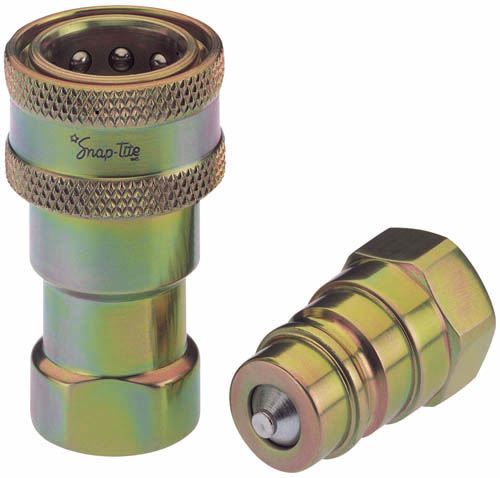

Snap-tite 61 Series ISO-A Interchange, Poppet Style Quick Connect Coupling

• 應用：
通用液壓機械、注塑模具、機床、測試設備、農業運輸機械等。

• 雙單向閥；
材質：鍍鋼；
尺寸規格：1/4″—1″；
工作壓力：5000psi；
符合ISO7241-1 Series A 和 ISO5675標準
選型資料（插入鏈接）
4:1 Safety Factor
Poppet Style Shut-off Valving
High Strength Steel Construction
Wide Variety of Seal Materials Available
Available Sizes - 1/4" thru 1"
Zinc Yellow Dichromate Plating - Provides superior corrosion resistance
Pressure Rating - To 4,600 psi (317 bar)
Proven Ball-Locking Design
Dimensions & Performance Conform to both ISO 7241-1A (ISO-A) and ISO 5675

Snap-tite 61 Series Coupling PDF_下載

Snap-tite 61 Series : General Purpose Poppet Coupling
ISO 7241-1 Series A (ISO-A) Interchange Quick Disconnect Coupling

BENEFITS

The 61 Series is a general purpose coupling that is supplied in a double shut-off configuration for use in applications such as test equipment, agriculture, mobile hydraulics, in-plant hydraulics, machine tool, plastic molding, Departments of Transportation among others. Dimensions and performance meet the ISO 7241-1A requirements in addition to meeting dimensional requirements of ISO 5675.

Part No #	Coupling Half	Coupling Size	End Fitting Size	End Fitting Type	Body Material	Seal Material	Maximum Operating Pressure
61C4-4F	Coupler (Female)	1/4 in.	1/4 in.	Female NPTF	Steel	Buna-N (Nitrile)	4600 psi 320 bar
61C6-6F	Coupler (Female)	3/8 in.	3/8 in.	Female NPTF	Steel	Buna-N (Nitrile)	4600 psi 320 bar
61C8-8F	Coupler (Female)	1/2 in.	1/2 in.	Female NPTF	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61C8-10EF	Coupler (Female)	1/2 in.	5/8 in.	Female SAE	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61C12-12F	Coupler (Female)	3/4 in.	3/4 in.	Female NPTF	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61C12-12EF	Coupler (Female)	3/4 in.	3/4 in.	Female SAE	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61C16-16F	Coupler (Female)	1 in.	1 in.	Female NPTF	Steel	Buna-N (Nitrile)	3000 psi 210 bar
61C16-16EF	Coupler (Female)	1 in.	1 in.	Female SAE	Steel	Buna-N (Nitrile)	3000 psi 210 bar
61N4-4F	Nipple (Male)	1/4 in.	1/4 in.	Female NPTF	Steel	Buna-N (Nitrile)	4600 psi 320 bar
61N6-6F	Nipple (Male)	3/8 in.	3/8 in.	Female NPTF	Steel	Buna-N (Nitrile)	4600 psi 320 bar
61N8-8F	Nipple (Male)	1/2 in.	1/2 in.	Female NPTF	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61N8-10EF	Nipple (Male)	1/2 in.	5/8 in.	Female SAE	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61N12-12F	Nipple (Male)	3/4 in.	3/4 in.	Female NPTF	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61N12-12EF	Nipple (Male)	3/4 in.	3/4 in.	Female SAE	Steel	Buna-N (Nitrile)	4000 psi 280 bar
61N16-16F	Nipple (Male)	1 in.	1 in.	Female NPTF	Steel	Buna-N (Nitrile)	3000 psi 210 bar
61N16-16EF	Nipple (Male)	1 in.	1 in.	Female SAE	Steel	Buna-N (Nitrile)	3000 psi 210 bar
