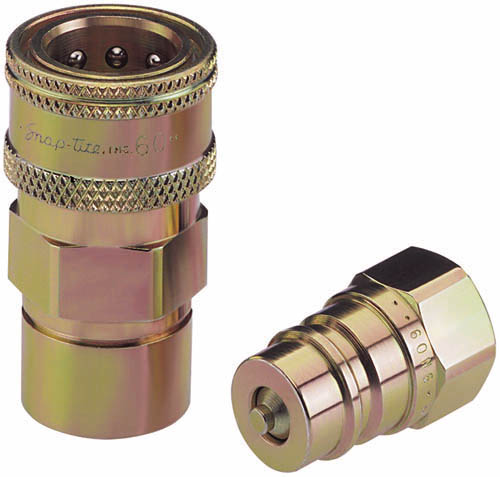

Parker 4000 Interchange Quick Disconnect Hose Coupling - Snap-tite 60 Series

• 應用：
雪橇、農林業機械、工程機械、石油設備、礦用設備等。

• 技術成熟的球鎖結構，連接可靠；
雙單向閥；
材質：鍍鋼；
尺寸規格：1/4″、3/8″
工作壓力：3000psi；
選型資料（插入鏈接）

4:1 Safety Factor
Self-Sealing Poppet Style Valve design provides excellent high and low pressure sealing
High Strength Steel Construction
Yellow Zinc Dichromate Plating for Superior Corrosion Resistance
Seal Variety - Choice of seals to handle wide range of media, Buna-N standard
Available Sizes - 1/4" and 3/8"
Working Pressure - To 3,000 psi (207 bar)

60 Series - The Snap-tite 60 Series is designed to accommodate high surge flows found in demanding hydraulic applications. Typical applications include snow plows, agricultural equipment, oil tools, forestry, steel mill, & construction equipment. The 60 Series will interchange with Aeroquip's FD42 Series and Parker's (Pioneer) 4000 Series.

60 Series : General Purpose Poppet Coupling
General Purpose, Parker 4000 Interchange Coupling

BENEFITS

The 60 Series coupler is provided with a retaining groove for bulkhead mounting. In addition, Snap-tite believes in supplying poppet style valving in lieu of the ball style check which is supplied by the competition in many cases. While interchangeable with Pioneer 4000 couplings, our design provides excellent sealing coupled in both high and low pressure applications as well as in the disconnected mode, unlike ball check styles.
