美國Snap-tite 28-1 and 29系列快速接頭 Snap-tite 28-1 and 29 Series Couplings
Military and Aerospace Dry Break Coupling

美國Snap-tite 28-1 and 29 Series系列快速接頭是體積小、重量輕的快插式設計，適合狹小空間的應用。Snap-tite 28-1和29系列無溢流閥芯，具有最小的溢出量，可避免氣泡混雜，同時具有高流量和低壓降的優點。接頭體積小并且可選擇鋁合金材質，這些都是附加價值。28-1系列的額定壓力高達1000psi,69bar,可提供1/4''至2''的本體尺寸。安裝指示器確認安裝到位。29系列的額定工作壓力高達5500psi,可提供1/8''至 1/4''的尺寸。

Snap-tite 28-1 & 29 Series Couplings PDF
資料下載

Snap-tite 28-1 and 29 Series Couplings應用：

　　 軍工、航空和醫藥以及部分腐蝕性的化學介質較高的場合。
　　 球鎖式一按即連結構；
　　 平面設計，基本杜絕介質泄漏和氣泡混入，同時便于系統檢查和清洗；
　　 結構緊湊，重量輕；
　　 流線型設計、大流量、壓力損耗低；
　　 材質：鋁、316不銹鋼；
　　 尺寸規格：1/8″—11/4″；
　　 工作壓力：5500psi；
　　 符合美國軍標：MIL-C-7413B和MIL-C-25427A；
　　 選型資料（插入鏈接）

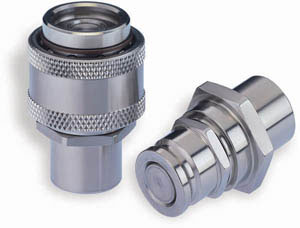

Snap-tite 28-1 and 29 Series Couplings ： Snap-tite 29 Series - Snap-tite's 29 Series quick disconnects offer full flow characteristics, can handle high pressure as well as gravity flow systems, and contain minimal seals for greater reliability. The 29 Series has established an excellent performance record over the past 30 years. Like all Snap-tite quick disconnect couplings, the 29 Series provides a smooth positive shut off upon disconnection.

Snap-tite 28-1 and 29 Series Couplings

29 Series Dust Caps
Size Coupler Nipple Pressure Cap
for Nipple
1/8" ADP29-2
ADC29-2
APC29-2
1/4" ADP29-4
ADC29-4
APC29-4
3/8" ADP29-6
ADC29-6
APC29-6
1/2" ADP29-8
ADC29-8
APC29-8
3/4" ADP29-12
ADC29-12
APC29-12
1" ADP29-16
ADC29-16
APC29-16
1 1/4" ADP29-20
ADC29-20
APC29-20

29 Series : Drybreak, Non-Spill Couplings
Military and Aerospace Dry Break Coupling

規格參數：

High Pressure Design - working pressures to 5,500 psi (379 bar) with low pressure drop

Available Sizes - 1/8" thru 1-1/4"

Construction Options - Stainless steel or aluminum construction

Drybreak/Flat Face, no-spill design

Minimal Air Inclusion End Fitting Options - Wide range of military and industrial end fittings available

Wide Range of Seal Materials

Smooth Push-to-Connect Action

Performance - Meets or exceeds the requirements of MIL-C-7413B & MIL-C-25427A

BENEFITS

This unit is a perfect fit in applications such as high reliability military, aerospace, and medical systems as well as handling chemicals and other corrosive materials. The 29 Series is the ideal choice where minimal spillage and air inclusion, safety, cleanliness, and precise function in high pressure hydraulic systems are prime requisites.

Snap-tite 28-1 and 29 Series Couplings

Compact, lightweight, push-to-connect couplings for small space applications. 28-1 and 29 Series nonspill valving offers minimal spillage and air inclusion while providing maximum flow and low pressure drop. Their small envelope size and aluminum material option are added pluses. The 28-1 Series is rated for pressures up to 1,000 psi (69 bar) and is available in 1/4" to 2" body sizes. A visual indicator confirms connection. The 29 Series is rated for pressures up to 5,500 psi (37 bar) and comes in 1/8" to 1-1/4" body sizes.

FEATURES AND BENEFITS

- Low pressure drop
- Push-to-connect
- Lightweight, compact design
- Wide range of seal materials
- Aluminum or stainless construction

Applications:

- Low pressure hydraulic systems
- High purity systems
- Fuel systems
