美國Snap-tite 28-1系列快速接頭 Snap-tite 28-1 and 29 Series Couplings
Military and Aerospace Dry Break Coupling

美國Snap-tite快速接頭 28-1系列快速接頭是體積小、重量輕的快插式設計，適合狹小空間的應用。Snap-tite 28-1和29系列無溢流閥芯，具有最小的溢出量，可避免氣泡混雜，同時具有高流量和低壓降的優點。接頭體積小并且可選擇鋁合金材質，這些都是附加價值。28-1系列的額定壓力高達1000psi,69bar,可提供1/4''至2''的本體尺寸。安裝指示器確認安裝到位。29系列的額定工作壓力高達5500psi,可提供1/8''至 1/4''的尺寸。

Snap-tite 28-1 and 29 Series Couplings

應用：
　　 低壓液壓系統、高純系統，燃油系統、電子冷卻系統和高可靠性系統。
　　 球鎖式一按即連結構；
　　 平面設計，基本杜絕介質泄漏和氣泡混入，同時便于系統檢查和清洗；
　　 結構緊湊，重量輕；
　　 流線型設計、大流量、壓力損耗低；
　　 材質：鋁、316不銹鋼;
　　 尺寸規格：1/4″—2″
　　 工作壓力：600—1000psi
　　 符合美國軍標：MIL-C-7413B和MIL-C-25427A；
　　 選型資料（插入鏈接）

snap-tite 28-1 Series Military and Aerospace Dry Break Coupling PDF
資料下載

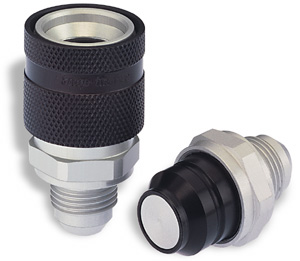

Snap-tite 28-1 Series - This space-age low pressure, low profile drybreak quick disconnect is machined and tested to meet or exceed critical standards. Lightweight, maximum flow, and minimal pressure drop are design parameters where the 28-1 Series is unsurpassed. The unit can be connected against a closed system, has no seal transition and provides a green color-coded positive connection indicator.

28-1 Series : Drybreak, Non-Spill Couplings
Military and Aerospace Dry Break Coupling

FEATURES :

Drybreak, Flat Face, No-Spill design
Light weight, Compact Design with Low Pressure Drop
Available Sizes - 1/4" thru 2"
Lock Indicator - Color coded positive connection indicator standard on all models.
Seals - A wide range of seal materials are available to handle a variety of media.
Construction - Available in aluminum or stainless steel
Maximized Flow Capacity
Working Pressure - to 1,000 psi (69 bar)

Snap-tite 28-1 & 29 Series
28-1 Series Dust Caps
Size Coupler Nipple
1/4" A28-1DCC-4
A28-1DCN-4
3/8" A28-1DCC-6
A28-1DCN-6
1/2" A28-1DCC-8
A28-1DCN-8
5/8" A28-1DCC-10
A28-1DCN-10
3/4" A28-1DCC-12
A28-1DCN-12
1" A28-1DCC-16
A28-1DCN-16
1 1/4" A28-1DCC-20
A28-1DCN-20
2" A28-1DCC-32
A28-1DCN-32

BENEFITS:

The small envelope size permits less weight and Snap-tite's excellent internal design assure maximum flow with minimum pressure drop. A smooth push-to-connect feature, ideal for one hand operation when one half is mounted, sets the 28-1 Series apart from all others. In addition to product features, Snap-tite meets MIL-Q-9858A quality control system and exceeds MIL-I-45208 inspection system.
