Snap-tite 25系列不銹鋼材質316SS快速接頭核電、化工和取樣系統及超低溫行業應用
Parker Snap-tite 25 Series Chemical、Nuclear power and Sampling system equipment Applications

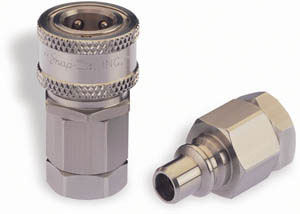

Parker Snap-tite 25 Series Chemical Coupling

美國Snap-tite 25系列不銹鋼快速接頭設計用于化工、核電和超低溫液體行業零下249度，采用Kel F seals 凱爾氟密封 。適用介質包括：液體如芳香烴、酒精、醇、 酯、酮、醚、強腐蝕、 硫酸和氫氟酸以及許多其他 高腐蝕性物質構成都可以適用于25系列完全沒有問題 。Liquids such as aromatic hydrocarbons, alcohols, esters, ketones, ethers, strong caustics, sulfuric acid and hydrofluoric acid as well as many other highly corrosive materials pose no problem for the 25 Series.

Snap-tite 25系列快速接頭應用：

化工、核電、取樣系統設備和超低溫行業；可以耐芳氫、脂、醚、酮、濃氫氧化鈉、硫磺酸、氫氟酸和其他一些高腐蝕性介質及冷媒介質。Parker Snap-tite 25 Series Chemical、Nuclear power and Sampling system equipment Applications.

Snap-tite 25系列快速接頭產品特性：

　　 單單向閥球鎖結構；
　　 高溫斷開；
　　 材質：不銹鋼316SS；
　　 尺寸規格：1/4″—1-1/4″；
　　 工作壓力：1,000 psi (70 bar)
　　 符合ANSI Z21.41標準，獲得CSA認證；
　　 選型資料（插入鏈接）
　　 溫度：零下240度到149度( 母頭），零下73度到177度（公頭）

Snap-tite 25 Series_PDF下載

Snap-tite 25 Series - Although economically priced, the 25 Series will handle virtually all types of chemicals. These quick disconnects are ideally suited for systems that must come in contact with families of fluids that have widely varying chemical characteristics. This unit utilizes a barrel-type valve with either a Teflon or Kel-F seal mounted in the valve to assure equalized valve-seat sealing.

Snap-tite 25 Series : General Purpose Poppet Coupling
Chemical and Cryogenic Coupling FEATURES
Construction - Machined from 316 stainless steel

Seals - Teflon or Kel- F
Tubular Valve Design
Minimal Pressure Drop
Working Pressure - to 1,000 psi (69 bar)
Sizes - available 1/4" thru 1/2"
Double Shut-Off or Straight Through Configurations
Optional Sleeve Lock Available
- 取樣系統及設備大量配套應用

Snap-tite 25系列快速接頭性能特點：

Liquids such as aromatic hydrocarbons, alcohols, esters, ketones, ethers, strong caustics, sulfuric acid and hydrofluoric acid as well as many other highly corrosive materials pose no problem for the 25 Series. The 25 Series may also be used with cryogenic liquids to -400 degrees F under certain conditions when Kel F seals are specified. 液體如 芳香烴 ，酒精， 醇 ， 酯 ， 酮 ， 醚 ， 強 腐蝕， 硫酸和氫氟酸 以及許多其他 高腐蝕性物質構成都可以適用于25系列 。Snap-tite 25系列也可用于 低溫液體 - 400華氏度 一定的條件下， 凱爾氟密封指定 。
