23 系列

應用：
　　 移動設備、液壓設備、廠用液壓裝置、餐廳設備和液壓回收設備。
　　 球鎖式一按即連結構；
　　 標準安全套鎖；
　　 操作時的帶壓壓力可達200psi；
　　 材質：高強度鋼表面鍍鋅，耐腐蝕；
　　 尺寸規格：3/8″和1/2″
　　 工作壓力：3000psi
　　 選型資料（插入鏈接）

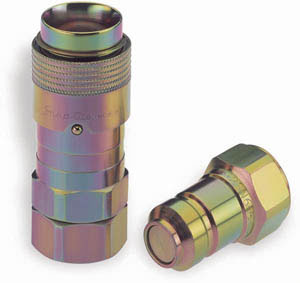

23 Series - Snap-tite's 23 Series quick disconnect coupling is designed for demanding hydraulic applications. Typical applications include mobile equipment, hydraulic tools, fluid reclamation equipment and in-plant hydraulics including test stands where a dry break/no-spill disconnect is required for cleanliness.

23 Series : Drybreak, Non-Spill Couplings
General Purpose, Dry Break, Hydraulic Coupling

FEATURES
?Drybreak, Flat Face, No-Spill design

?Ball locking type with push-to-connect feature allows one-handed connection

?Working Pressure -- to 3,000 psi (207 bar)

?3/8" and 1/2" Sizes Available

?Compact Envelope Dimensions

?Heavy Duty Plated Steel Construction

?Connects against Static Pressure to 200 psi (14 bar)

?Safety Sleeve Lock as Standard

BENEFITS

This rugged compact coupling performs its duties very well. The flush face nipple valve aids in the prevention of system contamination by reducing the build up of dirt and grit. Combine this with the coupler's tapered internal recessed valve design and this unit will allow for easy connection when installed in areas with difficult accessibility by guiding the nipple into a positive connection.
