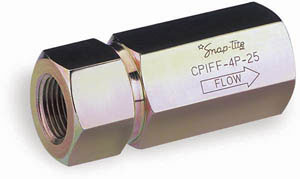

Snap-Tite CPIFF Series Inline Poppet Style Check Valves單向閥

CPIFF Series - The soft seat guided poppet design and 4:1 safety factor make this check valve an excellent choice for a wide variety of applications where free flow in one direction and blocked flow in the reverse direction is required. The streamlined soft seated poppet offers minimum restriction to flow and positive shut-off.

規格參數：

Soft Seat Poppet Style
Flow Rates to 30 gpm (115 l/min)
Construction - Zinc yellow dichromate plated steel. For other materials, consult factory.
Size Range - Available in sizes 1/4" thru 1"
Compact Design
Working Pressure - Up to 5,000 psi (345 bar)
Various End Fittings Available

BENEFITS

The CPIFF Series is an economical check valve that competes against the competition supplied ball style check valves and offers higher quality at the same or lesser pricing. Snap-tite also offers an orificed poppet for use as a fixed flow control when required. A variety of seals and crack pressures are offered to handle a wide range of media and systems.
