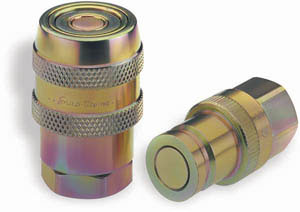

Snap-Tite 71 Series Face/Dry Break Couplings

71 Series - The 71 Series couplings are designed for today's applications including special features for modern needs - dry break, push-to-connect, high pressure, rugged and versatile. Extra large flow chambers and Snap-tite's exclusive valve design permit exceptional flow while maintaining low pressure drop.

71 Series : Drybreak, Non-Spill Couplings
Flush face, Dry Break, General Purpose, Hydraulic Couplings

FEATURES
Flush Face/Dry Break - spillage and system contamination are held to a minimum with flush valving
Push-to-Connect - Ideal one-hand operation when one half is mounted. Sleeve retracts to disconnect.
Rugged Unit - Heavy duty construction ideally suited for tough applications
Pressure Capability - Designed for operating pressures up to 10,000 psi (690 bar).
Versatile Construction - Available in plated steel, stainless steel & high pressure stainless steel
Range of Sizes - 1/8" thru 2" sizes are available
Superior Flow and Low Pressure Drop
Autoclave Cone & Threaded Fittings are Available
Sleeve lock Feature - This optional feature protects against accidental disconnection

BENEFITS

Snap-tite's 71 Series quick disconnect product line offers customers an economical flush face, dry break coupling capable of operating at pressures to 10,000 psi (690 bar). Special seals are available to handle troublesome media as well as optional Autoclave Engineers cone and threaded end fittings for high pressure applications. The 71 Series is ideal for test stands and other hydraulic and chemical applications where endurance and cleanliness are requirements.
