Parker Rectus 48系列熱塑材料快換接頭,符合派克結構設計
Parker Rectus 48 Series用于醫療,化工,食品輸送,藥品以及實驗室等工業技術領域快換接頭

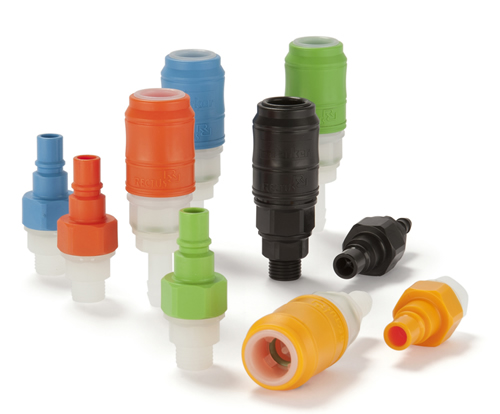

Parker Rectus 48 Series Thermoplastic quick couplings
Parker Rectus 48系列熱塑材料快換接頭,公稱通徑為7mm,用于氣動以及流體輸送應用,承壓可達10bar。該系列快換接頭遵循派克結構設計,目前可提供的材料為:POM,PVDF 或者 PVDF+PEEK 彈簧。派克的48系列快換接頭,材料使用POM,以及PVDF,用于醫療,化工,食品輸送,藥品以及實驗室等工業技術領域。該系列快換接頭,還可以定制特種塑料類型(RectuChem+),該系列的彈簧使用PEEK材料(一款耐腐蝕性特別強的復合材料)替代了金屬彈簧。該系列快換接頭的操作是使用單手操作。陰接頭和陽接頭使用獨特的顏色標識系統,保證了在醫療行業應用中,不同的管路進行連接時,可以防止混淆。該系列快換接頭,還有不帶閥芯的直通形式可供選擇。Coupling series made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material. Coupling system with single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling. The coupling is also available with no valve for a straightthrough system.

Parker Rectus 48 Series Thermoplastic quick couplings
市場:
- 機械工程
- 汽車
- 過程控制
- 生物兼容性
- 工業
特點/優點:
- 防溢出設計- 在打開閥芯前,陽接頭被提前進行密封
- 僅提供完整的熱塑快換接頭(使用PEEK彈簧)
- 陽接頭與陰接頭使用不同的顏色標識系統,可防止不同的醫療介質進行混用
- 單手操作系統可以方便快速地進行管路連接
性能特點
標稱直徑 (DN) 7
閥門 是, 否
長度 (MM) 35,5 高達 87
外六角 (MM) 17 高達 24
外徑 (MM) na, 18, 26
密封材料 丁腈橡膠,氟橡膠
最低工作溫度(°C) -20
最高工作溫度 (C) 80, 120
最大工作壓力 (BAR) 8, 10
流速 (LPM) 760, 1100
應用:
- 食品及化工過程
- 生物兼容性的流體傳輸
