Rectus利達時低壓系列接頭：黃銅、碳鋼26KA系列快速接頭 RECTUS Series 系列26KA快速接頭

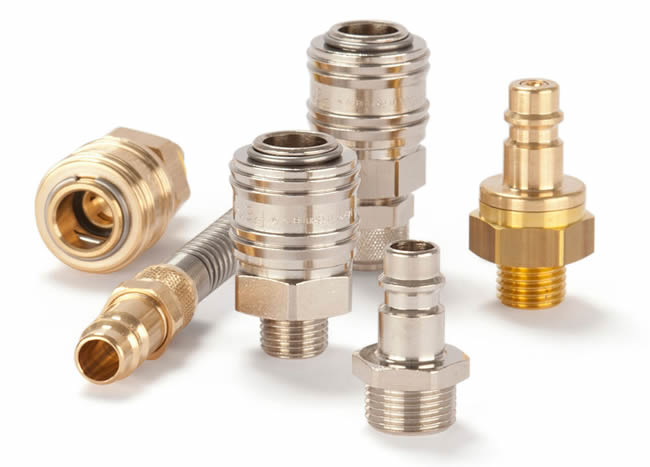

Rectus 26系列基本型快換接頭，符合歐洲標準結構
Parker派克的26系列是一款基本型快換接頭，其連接系統是通用型黃銅快換連接，符合歐洲工業標準結構。該系列快換連接系統可進行單手操作，其閥芯形式也是標準類型，結構緊湊。套筒設計符合人體工程學，并且能防止灰塵進入到閥芯內部。
不銹鋼的26系列陽接頭，可以在25系列下面找到。
Rectus 26系列快換接頭屬于基本型快換系列，公稱通徑是7.2mm，用于氣動及流體輸送應用，承壓可達35 bar。
該系列快換接頭，符合歐洲工業標準結構，目前可供材料：黃銅或不銹鋼。
市場：
- 機械工程
- 汽車
- 生命科學
- 移動液壓
- 工業
- 機床模具
特性/優點：
- 通用型黃銅快換連接，符合歐洲工業標準結構
- 單手操作，可用于方便快速地連接
- 與競爭對手產品比，低連接/斷開力
- Rectus 26系列
性能特點
標稱直徑 (DN) 7,2
閥門 是, 否
長度 (MM) 30 到 150
外徑 (MM) 12 到 28
密封材料 na,丁腈橡膠，氟橡膠
最低工作溫度(°C) -15, -20
最高工作溫度 (C) 100, 200
最大工作壓力 (BAR) 35
流速 (LPM) 700, 1000
應用：
- 氣動電動工具
- 裝配線
- 空氣壓縮機
- 流體輸送
LITERATURE AND REFERENCE MATERIALS
Catalogue Page Parker Rectus Series 26
Datasheet Series 26 Double-Shut-Off Version made of Brass/Steel
Datasheet Series 26 Single-Shut-Off Version made of Brass/Steel
Market Brochure - Transportation Railway
Parker ，Rectus和Tema三大公司都經過了長期的獨立發展階段，2007年美國Parker派克收購了Rectus和TEMA與其業務交叉的部門，將三個公司業務相似和產品相同的設備線進行重組，利用各自優勢，協同品牌效應，增強新整合部門的綜合實力。因此，新創建的QCDE的（歐洲快速接頭分部）結合國際地位與領先的技術和創新領域的氣動和液壓連接件，這使得QCDE成為行業合作范圍最廣、最具價值的合作伙伴，助力更多企業走向成功。
Rectus成立于1950年，2000年Rectus收購TEMA品牌，共同組建了Rectus-TEMA，在經歷了長期的自主研發和特定的客戶市場，2007年全球運動控制元件和系統的領導者Parker 全面收購（Rectus）利達時及（TEMA）天馬品牌，在歐洲Nussdorf 組建QCDE總部，Rectus和Tema具有多年專業的開發快速接頭的經驗，使我們的客戶能夠從我們這里得到各種領域應用的快速連接件。RECTUS quick connect couplings have stood for the highest precision and reliability. The pneumatic systems are used in many industries, primarily for compressed air but also for connections with liquid media.
Rectus利達時低壓系列接頭：黃銅|碳鋼|26KA系列快速接頭 RECTUS Series 系列26KA快速接頭
 |
單截止
Single Shut-Off |
通徑 Nominal Diameter
7.2 = 40 mm 2 |
|
RECTUS Series 系列
26KA |
流量壓力損失表
Chart
|
特征描述
Technical Description
European
standard industrial profile. Universal brass coupling. Small mass size.
Ergonomic sleeve design prevents dirt on the valve body. Series 26 plugs
in brass. Series 25 steel plugs recomm ended for oscillating forces. |
優點 Advantages
可單手操，歐洲標準
Single handed operation.
European standard.
替換產品
Interchangeability
RECTUS 25
RECTUS
1600/1625
TEMA 1600
CEJN 320
JWL 520 + JWL 530
various German
products |
工作壓力 Working Pressure
最大工作壓力 35 bar,
最大靜態壓力的安全系數為4:1。
工作溫度 Working Temperature*
-20°C ~ +100°C (NBR)
-40°C ~
+120/150°C (EPDM)
-15°C ~ +200°C
(FKM)
溫度取決于介質
*特殊工況溫度產品
當溫度低于-20°C或者高于+100°C時，需要使用特殊的密封圈，請聯系我們。 |
| 材料|材質 Material |
|
|
| 陽接頭 Coupling |
標準Standard |
銅鍍鎳Nickel Plated |
本體Back Body
閥體Valve Body
滑套Sleeve
閥Valve
彈簧和鎖定環Spring
& Locking Ring
鎖定球體Locking Balls
密封圈Seals |
黃銅 Brass
黃銅 Brass
黃銅 Brass
黃銅 Brass
AISI 301
AISI
420
NBR |
銅鍍鎳 Nickel Plated
銅鍍鎳 Nickel Plated
銅鍍鎳 Nickel Plated
黃銅
Brass
AISI 301
AISI 420
NBR |
| 陰接頭 Plug |
|
|
| 本體 Plug |
銅 Brass |
|
| 相關文檔 Documents |
|
|
安全須知
Safety Instructions |
安裝及維護說明
Installation & Maintenance |
操作說明
Operating
instructions |
陰接頭 | 接頭體Couplings |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
材質 |
訂貨號 |
外螺紋 Male Thread
|
G 1/8 |
22 |
43 |
25 |
9 |
|
|
|
|
標準 |
26KAAW10MPX |
| G 1/8 |
22 |
43 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAAW10MPN |
| G 1/4 |
22 |
39 |
25 |
9 |
|
|
|
|
標準 |
26KAAW13MPX |
| G 1/4 |
22 |
39 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAAW13MPN |
| G 3/8 |
22 |
41 |
25 |
9 |
|
|
|
|
標準 |
26KAAW17MPX |
| G 3/8 |
22 |
41 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAAW17MPN |
| G 1/2 |
22 |
44 |
25 |
12 |
|
|
|
|
標準 |
26KAAW21MPX |
| G 1/2 |
22 |
44 |
25 |
12 |
|
|
|
|
銅鍍鎳 |
26KAAW21MPN |
| G 1/2 |
24 |
42 |
25 |
10 |
|
|
|
|
標準 |
26KAAW21MPXS36 |
| G 1/2 |
24 |
42 |
25 |
10 |
|
|
|
|
銅鍍鎳 |
26KAAW21MPNS09 |
| M14 x 1,5 |
22 |
42 |
25 |
10 |
|
|
|
|
標準 |
26KAAD14MPX |
| M14 x 1,5 |
22 |
42 |
25 |
10 |
|
|
|
|
銅鍍鎳 |
26KAAD14MPN |
| M16 x 1,5 |
22 |
43 |
25 |
11 |
|
|
|
|
標準 |
26KAAD16MPX |
| M16 x 1,5 |
22 |
43 |
25 |
11 |
|
|
|
|
銅鍍鎳 |
26KAAD16MPN |
| M18 x 1,5 |
22 |
43 |
25 |
11 |
|
|
|
|
標準 |
26KAAD18MPX |
| M18 x 1,5 |
22 |
43 |
25 |
11 |
|
|
|
|
銅鍍鎳 |
26KAAD18MPN |
內螺紋 Female Thread
|
G 1/4 |
22 |
41 |
25 |
9 |
|
|
|
|
標準 |
26KAIW13MPX |
| G 1/4 |
22 |
41 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAIW13MPN |
| G 3/8 |
22 |
41 |
25 |
9 |
|
|
|
|
標準 |
26KAIW17MPX |
| G 3/8 |
22 |
41 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAIW17MPN |
| G 1/2 |
22 |
44 |
25 |
10 |
|
|
|
|
標準 |
26KAIW21MPX |
| G 1/2 |
22 |
44 |
25 |
10 |
|
|
|
|
銅鍍鎳 |
26KAIW21MPN |
| M14 x 1,5 |
22 |
44 |
25 |
9 |
|
|
|
|
標準 |
26KAIM14MPX |
| M14 x 1,5 |
22 |
44 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAIM14MPN |
| M16 x 1,5 |
22 |
44 |
25 |
9 |
|
|
|
|
標準 |
26KAIM16MPX |
| M16 x 1,5 |
22 |
44 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAIM16MPN |
| M18 x 1,5 |
22 |
44 |
25 |
9 |
|
|
|
|
標準 |
26KAIM18MPX |
| M18 x 1,5 |
22 |
44 |
25 |
9 |
|
|
|
|
銅鍍鎳 |
26KAIM18MPN |
Plastic Hose Connection with Spring Guard
|
6 x 8 mm |
21 |
132 |
25 |
7 |
6 |
|
|
M12 x 1 |
標準 |
26KAKK08MPX |
| 6 x 8 mm |
21 |
132 |
25 |
7 |
6 |
|
|
M12 x 1 |
銅鍍鎳 |
26KAKK08MPN |
| 8 x 10 mm |
21 |
143 |
25 |
9 |
8 |
|
|
M16 x 1 |
標準 |
26KAKK10MPX |
| 8 x 10 mm |
21 |
143 |
25 |
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26KAKK10MPN |
| 9 x 12 mm |
21 |
150 |
25 |
9 |
8 |
|
|
M16 x 1 |
標準 |
26KAKK12MPX |
| 9 x 12 mm |
21 |
150 |
25 |
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26KAKK12MPN |
Plastic Hose Connection
|
4 x 6 mm |
21 |
58 |
25 |
7 |
6 |
|
|
M10 x 1 |
標準 |
26KAKO06MPX |
| 4 x 6 mm |
21 |
58 |
25 |
7 |
6 |
|
|
M10 x 1 |
銅鍍鎳 |
26KAKO06MPN |
| 6 x 8 mm |
21 |
45 |
25 |
7 |
6 |
|
|
M12 x 1 |
標準 |
26KAKO08MPX |
| 6 x 8 mm |
21 |
45 |
25 |
7 |
6 |
|
|
M12 x 1 |
銅鍍鎳 |
26KAKO08MPN |
| 8 x 10mm |
21 |
49 |
25 |
9 |
8 |
|
|
M16 x 1 |
標準 |
26KAKO10MPX |
| 8 x 10mm |
21 |
49 |
25 |
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26KAKO10MPN |
| 9 x 12mm |
21 |
49 |
25 |
9 |
8 |
|
|
M16 x 1 |
標準 |
26KAKO12MPX |
| 9 x 12mm |
21 |
49 |
25 |
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26KAKO12MPN |
寶塔接頭 Hose Barb
|
6 mm |
21 |
58 |
25 |
25 |
|
|
|
|
標準 |
26KATF06MPX |
| 6 mm |
21 |
58 |
25 |
25 |
|
|
|
|
銅鍍鎳 |
26KATF06MPN |
| 8 mm |
21 |
58 |
25 |
25 |
|
|
|
|
標準 |
26KATF08MPX |
| 8 mm |
21 |
58 |
25 |
25 |
|
|
|
|
銅鍍鎳 |
26KATF08MPN |
| 9 mm |
21 |
58 |
25 |
25 |
|
|
|
|
標準 |
26KATF09MPX |
| 9 mm |
21 |
58 |
25 |
25 |
|
|
|
|
銅鍍鎳 |
26KATF09MPN |
| 10 mm |
21 |
58 |
25 |
25 |
|
|
|
|
標準 |
26KATF10MPX |
| 10 mm |
21 |
58 |
25 |
25 |
|
|
|
|
銅鍍鎳 |
26KATF10MPN |
| 13 mm |
21 |
58 |
25 |
25 |
|
|
|
|
標準 |
26KATF13MPX |
| 13 mm |
21 |
58 |
25 |
25 |
|
|
|
|
銅鍍鎳 |
26KATF13MPN |
| 6 mm Parker |
21 |
58 |
25 |
20,5 |
|
|
|
|
標準 |
26KATP06MPX |
| 6 mm Parker |
21 |
58 |
25 |
20,5 |
|
|
|
|
銅鍍鎳 |
26KATP06MPN |
| 10 mm Parker |
21 |
58 |
25 |
24 |
|
|
|
|
標準 |
26KATP10MPX |
| 10 mm Parker |
21 |
58 |
25 |
24 |
|
|
|
|
銅鍍鎳 |
26KATP10MPN |
| 13 mm Parker |
21 |
58 |
25 |
28 |
|
|
|
|
標準 |
26KATP13MPX |
| 13 mm Parker |
21 |
58 |
25 |
28 |
|
|
|
|
銅鍍鎳 |
26KATP13MPN |
Panel Mount, Plastic Hose Connection
|
6 mm |
21 |
60 |
25 |
17 |
10 |
17 |
4 |
M12 x 1 |
標準 |
26KATS06MPX |
| 6 mm |
21 |
60 |
25 |
17 |
10 |
17 |
4 |
M12 x 1 |
銅鍍鎳 |
26KATS06MPN |
| 8 mm |
21 |
63 |
25 |
17 |
14 |
17 |
4 |
M12 x 1 |
標準 |
26KATS08MPX |
| 8 mm |
21 |
63 |
25 |
17 |
14 |
17 |
4 |
M12 x 1 |
銅鍍鎳 |
26KATS08MPN |
| 10 mm |
21 |
72 |
25 |
25 |
14 |
17 |
4 |
G 1/4 |
標準 |
26KATS10MPX |
| 10 mm |
21 |
72 |
25 |
25 |
14 |
17 |
4 |
G 1/4 |
銅鍍鎳 |
26KATS10MPN |
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
材質 |
訂貨號 |
Plastic Hose Connection with Spring Guard
|
4 x 6 mm |
|
112 |
12 |
7 |
6 |
|
|
M10 x 1 |
標準 |
26SF KK06 MXX |
| 4 x 6 mm |
|
112 |
12 |
7 |
6 |
|
|
M10 x 1 |
銅鍍鎳 |
26SF KK06 MXN |
| 6 x 8 mm |
|
121 |
12 |
7 |
6 |
|
|
M12 x 1 |
標準 |
26SF KK08 MXX |
| 6 x 8 mm |
|
121 |
12 |
7 |
6 |
|
|
M12 x 1 |
銅鍍鎳 |
26SF KK08 MXN |
| 8 x 10 mm |
17 |
133 |
|
9 |
8 |
|
|
M16 x 1 |
標準 |
26SF KK10 MXX |
| 8 x 10 mm |
17 |
133 |
|
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26SF KK10 MXN |
| 9 x 12 mm |
17 |
140 |
|
9 |
8 |
|
|
M16 x 1 |
標準 |
26SF KK12 MXX |
| 9 x 12 mm |
17 |
140 |
|
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26SF KK12 MXN |
Plastic Hose Connection
|
4 x 6 mm |
|
34 |
12 |
7 |
6 |
|
|
M10 x 1 |
標準 |
26SFKO06MXX |
| 4 x 6 mm |
|
34 |
12 |
7 |
6 |
|
|
M10 x 1 |
銅鍍鎳 |
26SFKO06MXN |
| 6 x 8 mm |
|
34 |
12 |
7 |
6 |
|
|
M12 x 1 |
標準 |
26SFKO08MXX |
| 6 x 8 mm |
|
34 |
12 |
7 |
6 |
|
|
M12 x 0 |
銅鍍鎳 |
26SFKO08MXN |
| 8 x 10 mm |
17 |
42 |
|
9 |
6 |
|
|
M16 x 1 |
標準 |
26SFKO10MXX |
| 8 x 10 mm |
17 |
42 |
|
9 |
6 |
|
|
M16 x 1 |
銅鍍鎳 |
26SFKO10MXN |
| 9 x 12 mm |
17 |
42 |
|
9 |
8 |
|
|
M16 x 1 |
標準 |
26SFKO12MXX |
| 9 x 12 mm |
17 |
42 |
|
9 |
8 |
|
|
M16 x 1 |
銅鍍鎳 |
26SFKO12MXN |
寶塔接頭 Hose Barb
|
4 mm |
|
48 |
12 |
25 |
|
|
|
|
標準 |
26SFTF04MXX |
| 4 mm |
|
48 |
12 |
25 |
|
|
|
|
銅鍍鎳 |
26SFTF04MXN |
| 6 mm |
|
48 |
12 |
25 |
|
|
|
|
標準 |
26SFTF06MXX |
| 6 mm |
|
48 |
12 |
25 |
|
|
|
|
銅鍍鎳 |
26SFTF06MXN |
| 8 mm |
|
48 |
12 |
25 |
|
|
|
|
標準 |
26SFTF08MXX |
| 8 mm |
|
48 |
12 |
25 |
|
|
|
|
銅鍍鎳 |
26SFTF08MXN |
| 9 mm |
|
48 |
12 |
25 |
|
|
|
|
標準 |
26SFTF09MXX |
| 9 mm |
|
48 |
12 |
25 |
|
|
|
|
銅鍍鎳 |
26SFTF09MXN |
| 10 mm |
|
48 |
12 |
25 |
|
|
|
|
標準 |
26SFTF10MXX |
| 10 mm |
|
48 |
12 |
25 |
|
|
|
|
銅鍍鎳 |
26SFTF10MXN |
| 13 mm |
|
48 |
15 |
25 |
|
|
|
|
標準 |
26SFTF13MXX |
| 13 mm |
|
48 |
15 |
25 |
|
|
|
|
銅鍍鎳 |
26SFTF13MXN |
| 6 mm Parker |
|
43 |
16 |
20,5 |
|
|
|
|
標準 |
26SFTP06MXX |
| 6 mm Parker |
|
43 |
16 |
20,5 |
|
|
|
|
銅鍍鎳 |
26SFTP06MXN |
| 10 mm Parker |
|
46 |
22 |
24 |
|
|
|
|
標準 |
26SFTP10MXX |
| 10 mm Parker |
|
46 |
22 |
24 |
|
|
|
|
銅鍍鎳 |
26SFTP10MXN |
| 13 mm Parker |
|
50 |
24 |
28 |
|
|
|
|
標準 |
26SFTP13MXX |
| 13 mm Parker |
|
50 |
24 |
28 |
|
|
|
|
銅鍍鎳 |
26SFTP13MXN |
Panel Mount, Hose Barb
|
6 mm |
14 |
56 |
|
17 |
14 |
17 |
4 |
M12 x 1 |
標準 |
26SFTS06MXX |
| 6 mm |
14 |
56 |
|
17 |
14 |
17 |
4 |
M12 x 1 |
銅鍍鎳 |
26SFTS06MXN |
| 8 mm |
17 |
56 |
|
17 |
14 |
17 |
4 |
M12 x 1 |
標準 |
26SFTS08MXX |
| 8 mm |
17 |
56 |
|
17 |
14 |
17 |
4 |
M12 x 1 |
銅鍍鎳 |
26SFTS08MXN |
| 10 mm |
17 |
56 |
|
17 |
14 |
19 |
4 |
M14 x 1 |
標準 |
26SFTS10MXX |
| 10 mm |
17 |
56 |
|
17 |
14 |
19 |
4 |
M14 x 1 |
銅鍍鎳 |
26SFTS10MXN |
PLUGS
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
材質 |
訂貨號 |
Flex Joint, Male Thread
|
R 1/4 |
17 |
64 |
|
11 |
|
|
|
|
鍍鎳表面 |
25FAAK13SPN |
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
外螺紋 Male Thread
|
G 1/8 |
14 |
31 |
|
7 |
|
|
|
|
標準 |
26SFAW10MXX |
| G 1/8 |
14 |
31 |
|
7 |
|
|
|
|
鍍鎳表面 |
26SFAW10MXN |
| G 1/4 |
17 |
33 |
|
9 |
|
|
|
|
標準 |
26SFAW13MXX |
| G 1/4 |
17 |
33 |
|
9 |
|
|
|
|
鍍鎳表面 |
26SFAW13MXN |
| G 3/8 |
19 |
33 |
|
9 |
|
|
|
|
標準 |
26SFAW17MXX |
| G 3/8 |
19 |
33 |
|
9 |
|
|
|
|
鍍鎳表面 |
26SFAW17MXN |
| G 1/2 |
24 |
38 |
|
12 |
|
|
|
|
標準 |
26SFAW21MXX |
| G 1/2 |
24 |
38 |
|
12 |
|
|
|
|
鍍鎳表面 |
26SFAW21MXN |
| M14 x 1,5 |
17 |
35 |
|
10 |
|
|
|
|
標準 |
26SFAD14MXX |
| M14 x 1,5 |
17 |
35 |
|
10 |
|
|
|
|
鍍鎳表面 |
26SFAD14MXN |
| M16 x 1,5 |
19 |
36 |
|
11 |
|
|
|
|
標準 |
26SFAD16MXX |
| M16 x 1,5 |
19 |
36 |
|
11 |
|
|
|
|
鍍鎳表面 |
26SFAD16MXN |
| M18 x 1,5 |
22 |
37 |
|
11 |
|
|
|
|
標準 |
26SFAD18MXX |
| M18 x 1,5 |
22 |
37 |
|
11 |
|
|
|
|
鍍鎳表面 |
26SFAD18MXN |
內螺紋 Female Thread
|
G 1/8 |
14 |
30 |
|
7 |
|
|
|
|
標準 |
26SFIW10MXX |
| G 1/8 |
14 |
30 |
|
7 |
|
|
|
|
鍍鎳表面 |
26SFIW10MXN |
| G 1/4 |
17 |
33 |
|
10 |
|
|
|
|
標準 |
26SFIW13MXX |
| G 1/4 |
17 |
33 |
|
10 |
|
|
|
|
鍍鎳表面 |
26SFIW13MXN |
| G 3/8 |
19 |
33 |
|
10 |
|
|
|
|
標準 |
26SFIW17MXX |
| G 3/8 |
19 |
33 |
|
10 |
|
|
|
|
鍍鎳表面 |
26SFIW17MXN |
| G 1/2 |
24 |
35 |
|
12 |
|
|
|
|
標準 |
26SFIW21MXX |
| G 1/2 |
24 |
35 |
|
12 |
|
|
|
|
鍍鎳表面 |
26SFIW21MXN |
| M14 x 1,5 |
17 |
33 |
|
10 |
|
|
|
|
標準 |
26SFIM14MXX |
| M14 x 1,5 |
17 |
33 |
|
10 |
|
|
|
|
鍍鎳表面 |
26SFIM14MXN |
| M16 x 1,5 |
19 |
33 |
|
10 |
|
|
|
|
標準 |
26SFIM16MXX |
| M16 x 1,5 |
19 |
33 |
|
10 |
|
|
|
|
鍍鎳表面 |
26SFIM16MXN |
| M18 x 1,5 |
22 |
36 |
|
13 |
|
|
|
|
標準 |
26SFIM18MXX |
| M18 x 1,5 |
22 |
36 |
|
13 |
|
|
|
|
鍍鎳表面 |
26SFIM18MXN |
Recoil Eliminator
| |
端口
A |
Hex
SW |
L
mm |
D
mm |
L1
mm |
L2
mm |
Hex1
SW |
B
mm |
G
mm |
材質 |
訂貨號 |
寶塔接頭 Hose Barb
|
6 mm |
21 |
60 |
|
25 |
|
|
|
|
標準 |
26SRTF06MXX |
| 6 mm |
21 |
60 |
|
25 |
|
|
|
|
鍍鎳表面 |
26SRTF06MXN |
| 8 mm |
21 |
60 |
|
25 |
|
|
|
|
標準 |
26SRTF08MXX |
| 8 mm |
21 |
60 |
|
25 |
|
|
|
|
鍍鎳表面 |
26SRTF08MXN |
| 9 mm |
21 |
60 |
|
25 |
|
|
|
|
標準 |
26SRTF09MXX |
| 9 mm |
21 |
60 |
|
25 |
|
|
|
|
鍍鎳表面 |
26SRTF09MXN |
| 10 mm |
21 |
60 |
|
25 |
|
|
|
|
標準 |
26SRTF10MXX |
| 10 mm |
21 |
60 |
|
25 |
|
|
|
|
鍍鎳表面 |
26SRTF10MXN |
| 13 mm |
21 |
60 |
|
25 |
|
|
|
|
標準 |
26SRTF13MXX |
| 13 mm |
21 |
60 |
|
25 |
|
|
|
|
鍍鎳表面 |
26SRTF13MXN |
更多Rectus快速接頭產品信息，請您關注產品細節頁面，或者來電咨詢我們：010-84282935 或者郵件至：sales@cnmec.biz
|
fcg.cnmec@parkerdistribution.com.cn
