派克漢尼汾 | Pick深海液壓快換接頭，這三個問題你遇到過嗎？
Subsea Connection Systems - Parker Hannifin
在淺海、深海和超深海域油氣應用中，選擇合適的液壓快換接頭至關重要。為了實現液壓快換接頭安全可靠的連接，密封、水深、插拔力和材料選擇等諸多因素均需考慮。
在本期的小派課堂，我們特地為大家整理了深海液壓快換接頭選用過程中出現的一些疑問合輯，快來看看你是不是也get過同款問題。
1. 液壓快換接頭的內部壓力為10000 psi，需在 3000米的深海將其連接，在平臺上部模塊壓力為0 psi時將其斷開，應選用什么類型的密封件？哪種產品可以滿足這樣的要求？
在3000米的深海之中，工作接頭的內部壓力將高于外部壓力(3000米=4388 psi)5000psi，閥體密封在連接時會受到高速流體的沖擊。因此，它們需由諸如PEEK之類堅固的熱塑材料制成，同時牢固地依附在閥體上。
派克漢尼汾深海快換接頭產品樣本中的大多數產品均采用這種閥體密封，可在壓力下進行連接。由于斷開時平臺上部模塊壓力為0 psi，您可選擇配置O形圈加雙側擋圈結構、閥體密封響應及時的快換接頭。派克漢尼汾旗下的DSE系列配備PEEK閥體密封、O形圈加雙側擋圈密封結構，閥體密封響應及時，性價比也高。
2. 我曾讀過一些有關深�？鞊Q接頭低插拔力的文章，相比傳統的深�？鞊Q接頭，派克產品的插拔力到底有多低呢？
低插拔力快換產品可將插拔力降低55％。比如， 1/2”規格的傳統 DSC快換接頭，其插拔力為695 lb/1000psi。而同樣為?”規格的低插拔力DSL快換接頭，其插拔力僅為307lb/1000psi。DSL替換DSC系列后，Cv值將從2提高到3，這是新型快換產品帶來的優勢。
3. 某個應用選用了316不銹鋼材質的快換接頭。那么，在深海應用中，是否能選擇標準快換產品樣本中的316不銹鋼非溢出型快換接頭？
如果條件合適，非深海應用的快換接頭產品可用于深海應用。通常，需要考慮的主要問題是外部壓力不能高于內部工作壓力500psi，因為密封件正常工作的前提條件為內部壓力高于外部壓力。
在壓力下連接和斷開快換產品、預期使用壽命以及其它因素也要納入考慮范圍。若將非深海應用的快換產品用于深海應用，小派建議您可聯系我們的銷售團隊，就具體應用作進一步討論。
探索更多深海快換接頭解決方案！
在淺海、深海和超深海域油氣應用中，選擇合適的液壓快換接頭至關重要。為了實現液壓快換安全可靠的連接，密封、水深、插拔力和材料選擇等諸多因素均需考慮。
- Subsea Connection Systems - Parker Hannifin
Subsea Coupling Solutions：Plate and Cartridge Mountable Stab Couplings,ROV and Diver-Mateable Connections, Related Products
Stab Style Plate Mounted Couplings
 |

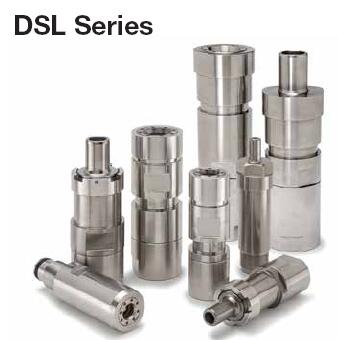

DSL Series couplings are designed for low separation force while under pressure. Durable PEEK or optional metal seals provide confidence for connection and disconnection at full pressure and at depths down to 3000 meters.
Features:
- Sizes 1/4 through 1-1/2 inch
- Up to 15,000 psi (1034 bar) working pressure
- Poppet valves
- Metal or PEEK primary seal, PEEK secondary seal
- Redundant sealing
- Guide sleeve option
- Welded tube stub option
Typical Applications:
- Flying lead plates
- Subsea control modules
- Subsea injection systems
- Tubing hangers |
 |
DSC Series are traditional subsea couplings with PEEK seals.Redundant sealing adds a higher level of integrity to this proven design. The guide sleeve eases alignment of the coupler and nipple for a smooth connection.
Features:
- Sizes 1/4 and 1/2 inch
- Up to 15,000 psi (1034 bar) working pressure
- Poppet valves
- PEEK primary seal
- Redundant sealing
- Guide sleeve option
- Welded tube stub option
Typical Applications:
- Flying lead plates
- Subsea control modules |
 |

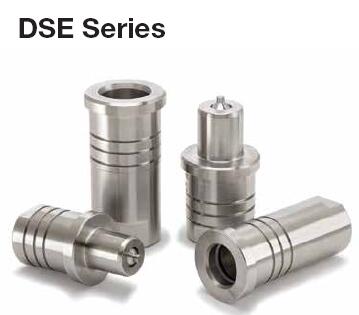

DSE Series poppet style couplings are the most common design used in subsea applications and can be connected and disconnected at full system pressure. Typically connected and disconnected above water, their compact design is efficient and reliable.
Features:
- Sizes 1/8 through 1 inch
- Up to 10,000 psi (690 bar) working pressure
- Poppet valves
- Primary elastomer O-ring seal with back up
Typical Applications:
- Auxiliary intervention plates
- Elastomer O-ring seal is usually "make and break" topside
- Umbilical reelers |
 |

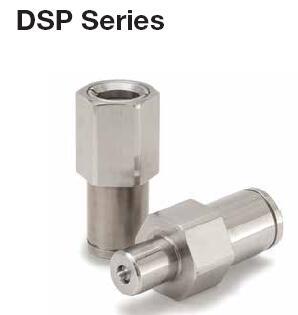

DSP Series poppet style couplings are the most common design used in subsea applications and can be connected and disconnected at full system pressure. PEEK seals allow connection subsea and above water. Their compact design is efficient and reliable.
Features:
- Sizes 1/8 through 1 inch
- Up to 15,000 psi (1034 bar) working pressure
- Poppet valves
- PEEK primary seal
Typical Applications:
- Auxiliary intervention plates
- PEEK seal is suitable for topside or subsea "make and break" |
 |

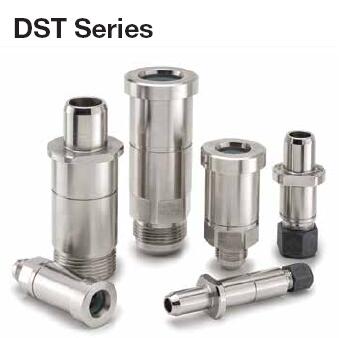

DST Series are unvalved, straight through couplings with unrestricted flow. Redundant interface sealing ensures reliable performance.
Features:
- Sizes 1/4, 1/2 and 3/4 inch
- Up to 8000 psi (552 bar) working pressure
- Unvalved straight through design
- O-ring/back up primary seal, secondary slipper seal
- Redundant sealing
Typical Applications:
- Connection plates where no valves are required
- Usually "make and break" topside |
 |

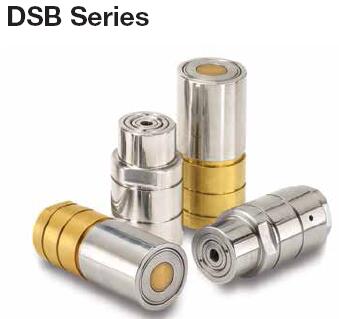

DSB Series balanced couplings have no hydraulic separation force while under pressure. The PEEK seals are durable for connecting at full system pressure.
Features:
- Size 3/8 inch
- Up to 10,000 psi (690 bar) working pressure
- Balanced design - no separation force from pressure
- PEEK primary seal
Typical Applications:
- Subsea control modules
- Intervention systems
Stab Style Plate Mounted Couplings |
 |

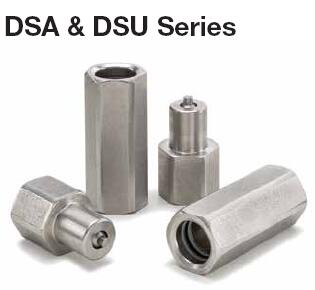

DSA and DSU Series poppet couplings are used in many subsea and topside applications. The ability to connect and disconnect under full system pressure, and sealing that can withstand internal and external pressure, provides secure connections for a variety of applications.
Features:
- Size 1/4 inch
- 5000 psi (345 bar) working pressure
- Poppet valves
- Back up/O-ring/back up primary seal
- Parker Nitrile O-rings standard
Typical Applications:
- Umbilical reelers
- MUX plates |
 |

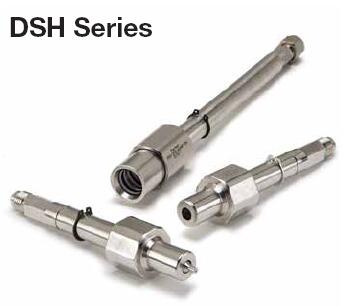

DSH Series couplings are used in subsea and topside RBJPlates. Typically found in hydraulic pilot applications they replace legacy couplings, pipe nipples, and fittings eliminating potential leak paths and reducing assembly time. The superior valve design of he DSH Series accomodates plate flex up to 0.100 in/2.54mm.
Features:
- Size 1/4 inch
- 6000 psi (414 bar) working pressure
- Poppet valves
- Redundant sealing
- Flow check resistant design
- Eliminates potential leak paths
- Reduces assembly time
- Parker Nitrile O-rings standard
Typical Applications:
- Umbilical reelers
- MUX plates |
 |
DSF Series poppet style couplings are self-aligning allowing rigid mounting of both the male and female. High operating pressures and robust construction make them ideal for the most challenging subsea applications.
Features:
- Sizes 1/8 and 3/8 inch
- Up to 25,000 psi (1725 bar) working pressure
- Poppet valves
- PEEK primary seals
- Parker Nitrile O-rings standard
Typical Applications:
- Intervention control systems
- Subsea test trees |
 |

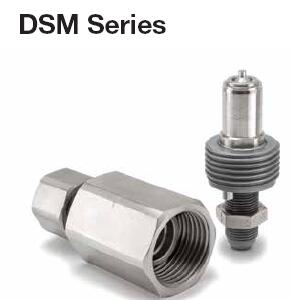

DSM Series couplings have poppet valves and threaded sleeves. They are manually operated, diver mateable subsea connections with proven performance.
Features:
- Sizes 1/4 through 1 inch
- Up to 10,000 psi (690 bar) working pressure
- Poppet valves
- Metal primary and PEEK secondary seal
- Connect/disconnect under pressure
Typical Applications:
- Auxiliary intervention plates
- Diver mateable connections
|
 |
DSS Series
Inline or Manifold Mounted Swivels
DSS Series swivels provide an unobstructed flow path force balanced design and low friction PTFE slipper seals minimize rotation torque. These features minimize pressure loss, can increase hose life and reduce fitting loosening.
Features:
- Sizes 1/2 and 1 inch
- 5000 psi (345 bar) working pressure
- Force balanced
- Full flow design
- Redundant sealing
- Low friction PTFE slipper seals
Benefits:
- Prevents hose twisting
- Reduces fitting loosening |
- Custom engineered couplings and accessories
 |
Custom Engineered Products

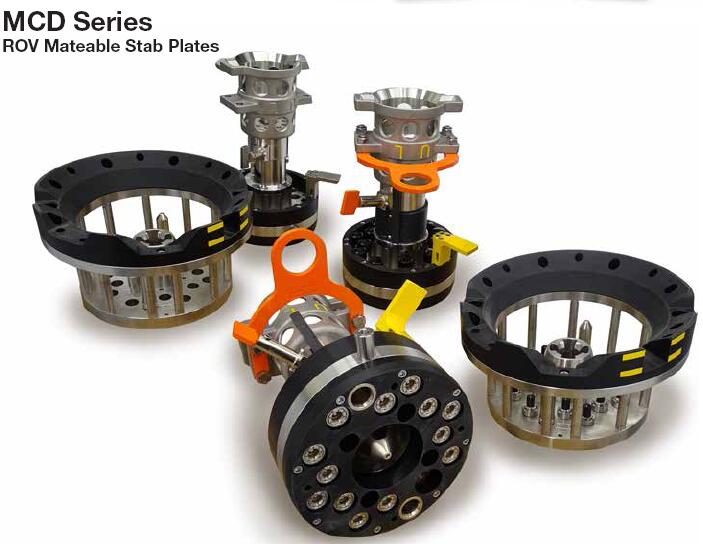

MCD Series
ROV Mateable Stab Plates

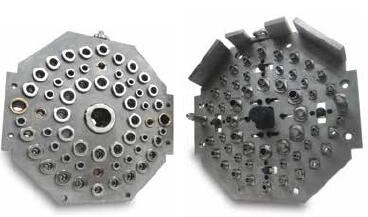

Parker's custom engineered couplings and accessories utilize proven designs to satisfy specific customer requirements and provide reliable connections that endure the demanding subsea environment.
Custom engineered solutions have included:
- Couplings mounted in ROV housing
- Cartridge mounted coupling with a self aligning nipple
- Coupling rated to 25,000 psi (1723 bar) and 160°C
- Poppet style couplings in a diver-mateable plate
- Multi-coupling plates connecting over 50 fluid lines |
|
- Related Products - Offshore Topside Couplings
Other Topside Applications
石油頂驅配套用快速接頭 Top Drives
 |
H & 60 Series - 316 Stainless Steel
- Corrosion resistant materials
- Quick connections allow for equipment maintenance |
 |
75 Series - 316 Stainless Steel
- Durable threaded connection for large bore hoses
- Wings allow for easy operation
|
- ROV潛水器配套快速接頭
 |
60 Series - 316 Stainless Steel
- Proven perfomance
- ISO 7241, series B compliant |
 |
71 Series - 316 Stainless Steel
- High pressure
- Flush face, low spill
|
- Other Topside Applications其他頂驅設備配套快速接頭
 |

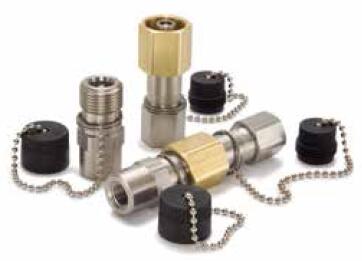

1141 Series - 303 Stainless Steel & Brass
- Thread to connect
- 1/4 inch body size |
 |

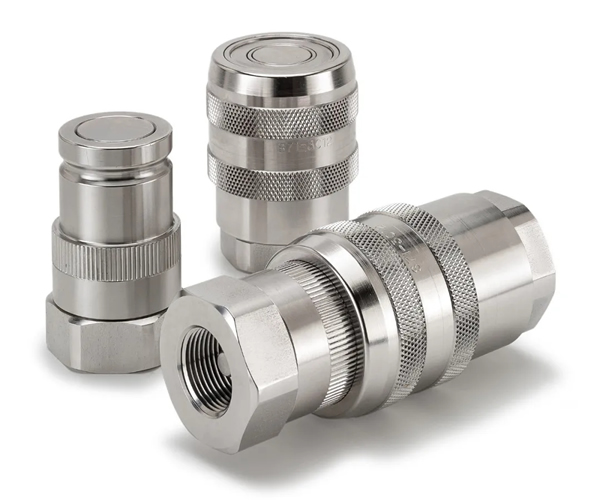

FS Series - 316 Stainless Steel
- Push to connect operation
- Non-spill flush valves |
|
