Parker SCP系列 高壓控制傳感器SCP01-400-34-0C
SCP01壓力傳感器
SCP01壓力傳感器 流體連接件SensorControl產品
Parker的SCP是一系列用于移動液壓應用的緊湊型壓力傳感器。SCP具有堅固的不銹鋼結構。它的傳感器單元采用薄膜技術，沒有內部O形圈或流體。高壓能力使傳感器非常堅固并且能夠承受振動。派克的SCP傳感器系列是一系列緊湊型壓力傳感器，用于移動液壓應用。該傳感器具有結構緊湊，線性度高和出色的抗電磁干擾性。Parker派克迷你型派克SCP壓力傳感器符合工業應用要求，主要用于控制、調節和監測系統，輸出隨壓力變化的模擬信號。迷你型派克SCP壓力傳感器由于其緊湊的結構、高線性和優秀的抗干擾能力而備受關注。
Pressure Sensors SCP01 High Pressure 316 Stainless Steel
SCP01壓力傳感器優勢與優點
- 符合工業應用要求，主要用于控制、調節和監測系統
- 介質溫度范圍-40 ~ 125°C，最高量程可至1000 bar，高爆破壓力
- 結構緊湊，線性度高，抗干擾能力強。其響應速度高(1ms)，因此適用于快速控制的解決方案
SCP壓力傳感器在3個壓力范圍內可用。
- 35 bar（500 psi）
- 250 bar（3625 psi）
- 500 bar（7250 psi）
信號范圍非常適合移動設備，在傳感器的整個范圍內為0.5-4.5 VDC。 SCP具有緊湊的高度，9 / 16-18 UNC（6 SAE）螺紋接口和集成的Deutsch DT連接器。
這使得SCP非常適合建筑和其他移動應用。
市場：
- 建筑設備
- 林業設備
- 農業機械
- 物料搬運設備
- 采礦
特性/優點：
- 不銹鋼主體以增強強度。
- 3個壓力范圍，用于監視高壓或低壓功能。
- 緊湊的尺寸允許在任何應用中使用。
- 針對移動設備量身定制的輸出信號。
應用范圍：
- 垃圾車
- 噴霧器
- 叉車和伸縮叉車
- 堆垛機和貨運代理
- 鑿巖機
迷你型派克SCP壓力傳感器應用
多種信號輸出形式和插口形式使該傳感器具有廣泛的應用范圍。由于它的一系列優點：耐久性、高精度、高可靠性及堅固的不銹鋼結構，該迷你型派克SCP壓力傳感器非常適合在液壓和氣動設備中長期使用。
SensoControl Industrial Pressure Sensor | SCP01 Series

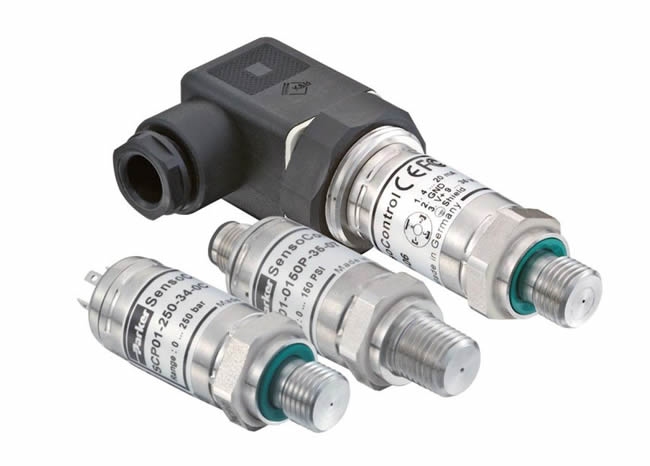

SCP01 Pressure Sensor SCP01 Pressure Sensors are industrial pressure sensors offering long-term stability, resistance to interference and rugged construction. They are available in a wide range of standard and configured to order versions to meet your application needs. These sensors are manufactured with the highest quality standards for reliable and repeatable measurements.
SCP01 Series Pressure Sensor Applications & Features
Applications Include:
Test & Measurement
Hydraulic Power Units
Power Generation
Mobile Hydraulics
Features:
Stainless Steel body
Compact construction
Shock & vibration proof
Resistant to pressure spikes
Accuracy +/- 0.5% FS
SCP01 Series Pressure Sensors
| Part Number |
Pressure Range (PSI) |
Electrical Ouput |
Port Connection |
Electrical Connection |
| SCP01-0060P-25-07 |
-14.5 to 60 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0060P-27-07 |
-14.5 to 60 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0060P-35-07 |
-14.5 to 60 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0060P-37-07 |
-14.5 to 60 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0060P-47-07 |
-14.5 to 60 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0150P-25-07 |
-14.5 to 150 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0150P-27-07 |
-14.5 to 150 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0150P-35-07 |
-14.5 to 150 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0150P-37-07 |
-14.5 to 150 |
4 - 20mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0150P-47-07 |
-14.5 to 150 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0250P-25-07 |
-14.5 to 250 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0250P-27-07 |
-14.5 to 250 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0250P-35-07 |
-14.5 to 250 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-0250P-37-07 |
-14.5 to 250 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-0250P-47-07 |
-14.5 to 250 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-1000P-25-07 |
0 to 1000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-1000P-27-07 |
0 to 1000 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-1000P-35-07 |
0 to 1000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-1000P-37-07 |
0 to 1000 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-1000P-47-07 |
0 to 1000 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-3000P-25-07 |
0 to 3000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-3000P-27-07 |
0 to 3000 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-3000P-35-07 |
0 to 3000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-3000P-37-07 |
0 to 3000 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-3000P-47-07 |
0 to 3000 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-5000P-25-07 |
0 to 3000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-5000P-27-07 |
0 to 5000 |
4 - 20 mA, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-5000P-35-07 |
0 to 5000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-5000P-37-07 |
0 to 5000 |
4 - 20 mA, 2 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-5000P-47-07 |
0 to 5000 |
0 -10V, 3 wire |
7/16-20UNF-2A male SAE-4 with O-ring |
M12 X 1, 4 pin |
| SCP01-9000P-25-07 |
0 to 9000 |
4 - 20 mA, 3 wire |
1/4 NPT male |
M12 X 1, 4 pin |
| SCP01-9000P-35-07 |
0 to 9000 |
4 - 20 mA, 2 wire |
1/4 NPT male |
M12 X, 4 pin |
| SCP01-9000P-45-07 |
0 to 9000 |
0 -10V, 3 wire |
1/4 NPT male |
M12 X, 4 pin |

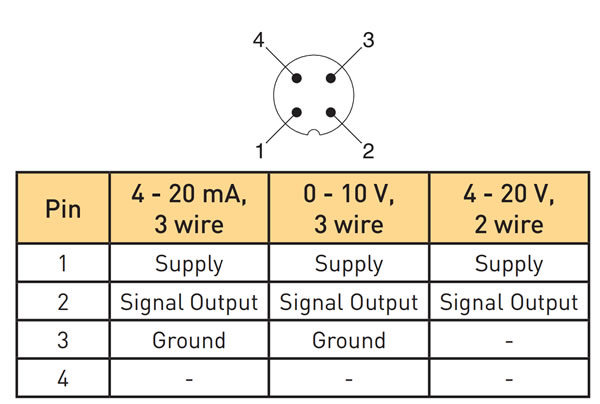

General Data |
Electrical Protection |
Short circuit, reverse polarity, overload production |
Supply Voltage |
9-30VDC - 4-20mA, 3-wire 12-30VDC – 4-20 mA, 2-wire / 0-10V, 3-wire |
Temperature Range: |
Enviromental |
-40° F to 185° F |
Media, Storage |
40° F to 257° F |
Compensated |
4° F to 185° F |
Temperature Coefficient |
< +/- 0.3% FS/10K |
Vibration Resistance |
Meets IEC 60068-2-29 |
Shock Resistance |
Meets IEC 60068 2-32 |
EMI Compatibility |
DIN EN 61000-6-3
DIN EN 61000-6-2 |

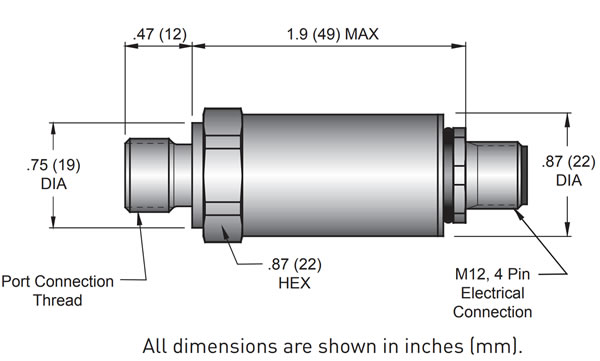

| sical Properties |
| Material Housing |
304 SS |
| Material Fitting |
630 SS |
| Material Seal |
Fluorocarbon |
| Sensing Element |
Thin Film (poly Si on SiO2 ) |
| Pressure Bore |
0.024 in |
| Long Term Stability |
< 0.1% FS/a |
| Load Reversals |
> 20 M |
| Technical Specifications |
| Overload Pressure |
200% FS |
| Burst Pressure |
250% FS |
| Accuracy |
+/- 0.5% FS |
| Protection Class |
IP67 |
| Response Time |
< 1ms |
| Long Term Stability |
< 0.1% FS/a |
| Load Reversals |
> 20 M |
|
迷你型派克SCP壓力傳感器常見型號如下:
SCP-010-14-06 SCP-010-34-06 SCP-010-34-07 SCP-016-14-06
SCP-016-44-06 SCP-025-34-06 SCP-025-34-07 SCP-040-44-06
SCP-060-14-06 SCP-060-24-06 SCP-060-24-07 SCP-060-34-07
SCP-060-44-07 SCP-060-B4-07-MO SCP-100-14-06 SCP-100-24-06
SCP-100-24-07 SCP-100-34-06 SCP-100-34-07 SCP-100-44-07
迷你型派克SCP壓力傳感器
SCP-160-14-06 SCP-160-24-06 SCP-160-24-07 SCP-160-34-06
SCP-160-44-06 SCP-160-A4-07-MO SCP-250-14-06 SCP-250-24-06
SCP-250-24-07 SCP-250-34-06 SCP-250-34-07 SCP-250-44-06
SCP-250-44-07 SCP-400-14-06 SCP-400-14-07 SCP-400-24-06
SCP-400-24-07 SCP-400-34-06 SCP-400-34-07 SCP-400-44-06
SCP-400-44-07 SCP-600-14-06 SCP-600-24-06 SCP-600-24-07
SCP-600-34-06 SCP-600-34-07 SCP-600-44-06 SCP-600-44-07
Ordering part numbers 2)
Model code Part number
SCP05-035-R6-0D-ECD 2820012
SCP05-500-R6-0D-ECD 2820013
SCP05-250-R6-0D-ECD 2820016
迷你型派克SCP壓力傳感器及電纜選型
|
