Parker氫氣儀表解決方案
Instrumentation Solutions for Hydrogen Applications
Components and systems for use with gaseous and liquid hydrogen
Parker通過各種應用的廣泛解決方案支持全球脫碳工作。我們的氫兼容部件和系統能夠在真空至1380 bar(20000 psi)和-253攝氏度至+538攝氏度(-423華氏度至+1000華氏度)的溫度范圍內安全高效地運行。Parker is supporting the global decarbonisation efforts through a broad range of solutions for a variety of applications. Our hydrogen-compatible components and systems enable safe and efficient operation from vacuum to 1,380 bar (20,000 psi) and temperatures from -253OC to +538OC (-423OF to +1000OF).
- 產品目錄
On-Board Vehicles - EC-79 Certified Components
Applications from 30 to 350 bar (435 - 5,076 psi)
Two Ferrule Tube Fittings - A-LOK Series
Applications up to 700 bar (10,152 psi)
Medium Pressure Fittings - Cone and Thread - Autoclave Engineers
Medium Pressure Needle Valves SM Series - Autoclave Engineers
Medium Pressure Tubing - Autoclave Engineers
ISO 19880-3 Certified Products for Hydrogen Refueling Stations
Medium Pressure Needle Valves 20SM Series - Autoclave Engineers
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
General Hydrogen Applications
- Applications up to 414 bar (6,000 psi)
Two Ferrule Tube Fittings - A-LOK Series
Ball Valves - B Series - Isolation and Directional Control Valves
Inline Filters - F Series
Check Valves - CO Series - Directional Control Valves
Stream Switching Systems - R-MaxTM Gen II Series.
Modular Sample Conditioning Systems - IntraFlowTM Series
Pressure Regulators - IR4000 and IR6000 Series
Excess Flow Shutoff Valves - FS190 Series
-
Applications up to 1,380 bar (20,000 psi)
Medium Pressure Two Ferrule Inverted Tube Fittings - MPITM Series
Medium Pressure Fittings - Cone and Thread - Parker Autoclave Engineers
Permanent Ferrule-less Connectors - Phastite Series
Ball Valves - Hi-Pro Series - Isolation Valves .
Ball Valves - HB Series - Isolation Valves
Needle Valves MAN - MPITM Series
Medium Pressure Needle Valves 15SM and 20SM Series - Autoclave Engineers
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
Medium Pressure O-Ring Check Valves MAC - MPITM Series
Double Block & Bleed Needle Type Manifold - 20DBNV Series - Autoclave Engineers
Relief Valves - Soft Seat RVS Series - Autoclave Engineers
Medium Pressure Tubing - MPITM Series
Medium Pressure Actuators - Autoclave Engineers
Medium Pressure Adapters - Autoclave Engineers
Medium Pressure Accessories - Autoclave Engineers
Cryogenic/LH2 Applications - 液氫應用
Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Globe Valves - Stainless Steel - Bestobell Marine
Pneumatically Actuated Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Pneumatically Actuated Globe Valves - Stainless Steel - Bestobell Marine
Lift Check Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Lift Check Valves - Stainless Steel - Bestobell Marine
Swing Check Valves - Stainless Steel - Bestobell Marine
Manual Gate Valves - Bestobell Industrial
Actuated Gate Valves - Pneumatic Tyre Design - Bestobell Industrial

EC-79 Certified
ON-BOARD VEHICLES車載車輛
Two Ferrule Tube Fittings - A-LOK Series EC-79 Certified
Parker Autoclave Engineers:
Medium Pressure Fittings Tests Passed - Pending EC-79 Certification
Needle Valves - SM Series Tests Passed - Pending EC-79 Certification
Medium Pressure Tubing Tests Passed
GENERAL HYDROGEN APPLICATIONS
Two Ferrule Tube Fittings - A-LOK Series
Permanent Ferrule-less Connectors - Phastite Series
Ball Valves - B Series
Ball Valves - Hi-Pro Series
Ball Valves - HB Series
Inline Filters - F Series
Check Valves - CO Series
Stream Switching Systems - R-Max II
Modular Sample Conditioning Systems - IntraFlowTM Series
Pressure Regulators - IR4000 and IR6000 Series
Excess Flow Shutoff Valves - FS190 Series
CRYOGENIC/LH2 APPLICATIONS
Bestobell Cryogenic Valves:
Globe Valves
Pneumatically Actuated Globe Valves
Lift Check Valves
Swing Check Valves
Manual Gate Valves
Actuated Gate Valves

ISO 19880-3 TESTED
ISO-CERTIFIED PRODUCTS -
FOR REFUELING STATIONS
TESTED Parker Autoclave Engineers:

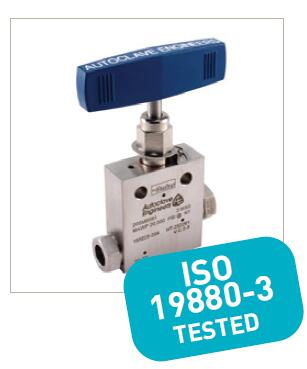

Needle Valves - 20SM Series Tests Passed - Pending Certification
Check Valves - CXO Series Tests Passed - Pending Certification
GENERAL HYDROGEN APPLICATIONS
Parker Autoclave Engineers:
Medium Pressure Fittings - Cone and Thread
Needle Valves - 15SM and 20SM Series
Check Valves - CXO Series
Double Block & Bleed Needle Type Manifold - 20DBNV Series
Relief Valves - RVS Series
Medium Pressure Accessories and Adapters
Medium Pressure Actuators
Medium Pressure MPI Series:
Fittings
Tubing
Needle Valves - MAN Series
Check Valves - MAC Series
根據歐洲議會和歐洲理事會2009年1月14日第79/2009號法規(EC),Parker的管接頭、針閥和壓力高達700 bar的管道符合氫動力機動車所用氫部件和系統的一般要求。Parker’s range of tube fittings, needle valves and tubing for pressures up to 700 bar meet the general requirements of hydrogen components and systems used on hydrogen-powered motor vehicles as per regulation (EC) No 79/2009 of The European Parliament and of The Council of 14 Jan 2009.
派克的20SM系列針閥和CXO系列止回閥已成功通過了氣態氫站所用高壓氣閥的所有要求試驗,達到ISO 198803認證中規定的H70規格。Parker’s needle valves 20SM series and check valves CXO series have successfully passed all the required tests for high pressure gas valves used in gaseous hydrogen stations of up to the H70 designation specified in ISO 198803 certification.

車載車輛On-Board Vehicles
30至700bar(435至10152 psi)壓力的車載氫動力車輛部件。Components for on-board hydrogen-powered vehicles for pressures from 30 to 700 bar (435 to 10,152 psi).

EC-79認證EC-79 Certified
Parker批準用于30至700bar氫動力車輛的產品范圍包括管件、針閥和管道。根據歐洲議會和理事會2009年1月14日第79/2009號法規(EC),這些產品滿足氫動力機動車上使用的氫組件和系統的一般要求。
Parker’s range of products approved for use on-board hydrogen-powered vehicles from 30 to 700 bar includes tube fittings, needle valves and tubing. These products meet the general requirements of hydrogen components and systems used on hydrogen-powered motor vehicles as per regulation (EC) No 79/2009 of The European Parliament and of The Council of 14 Jan 2009.
 |
應用范圍為30至350bar(435-5076 psi)
EC-79認證

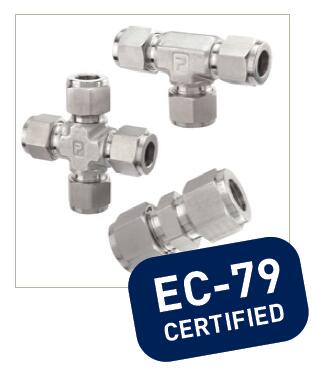

雙卡套管接頭 - A-LOK系列
EC-79認證
Parker A-LOK雙卡套管接頭設計用于在壓力高達350巴、溫度低至-40℃的氫動力車輛上實現高質量的無泄漏連接。這些配件在低溫、壓力和熱循環以及振動應用中提供可靠的運行。在IATF 16949認證工廠制造,EC-79批準用于氫氣服務,316不銹鋼材料有多種尺寸和配置。要訂購EC-79認證組件,只需在零件號末尾添加后綴EC79即可。有關更多詳情,請參閱參考目錄4190-FMTG。
Available Sizes :1/4” to 1” (6mm to 25mm)*
MWP :350 bar (5,076 psi)
Temperature :-40 度 to +120 度
Hydrogen Form :Gas, Liquid
Catalogue : 4190-FMTG
*A-LOK T形三通和四通的批準尺寸不超過1/2英寸(12mm)。請聯系我們了解更多信息。
*A-LOK tees and crosses approved in sizes up to 1/2” (12mm). Please contact Parker for further information.
Applications from 30 to 350 bar (435 - 5,076 psi)
EC-79 CERTIFIED
Two Ferrule Tube Fittings - A-LOK Series
EC-79 Certified
Parker A-LOK two ferrule tube fittings are designed to achieve quality leak-free connections on-board hydrogen-powered vehicles up to 350 bar pressures and temperatures down to -40OC. These fittings provide reliable operation in cryogenic, pressure & thermal cycling and vibration applications. Manufactured at an IATF 16949 certified plant and EC-79 approved for hydrogen service, they come in a range of sizes and configurations in 316 Stainless Steel material.
To order EC-79 certified components, simply add the suffix EC79 at the end of your part number. For more details please see catalogue ref. 4190-FMTG. |
 |
高達700 bar( 10152 psi )的應用
EC-79認證

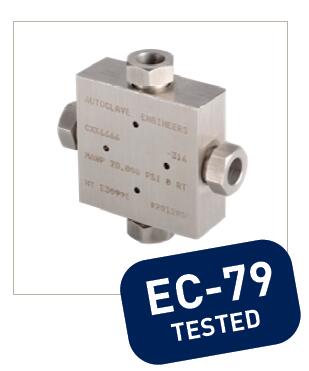

中壓管件 錐形和螺紋 Autoclave Engineers
測試通過-待EC-79認證
Parker Autoclave Engineers中壓錐形和螺紋連接是為要求更高流量能力的應用而設計的。該中壓范圍采用高抗拉強度冷加工316/316L不銹鋼材料制造,作為700巴(10152磅/平方英寸)最大允許工作壓力(MAWP)的標準材料,具有高壓版本的所有優點,全金屬密封,可在-40OC至+120OC(-40OF至+248OF)的溫度下工作。根據ASME B31,這些配件設計用于派克高壓滅菌器工程師的20SM系列閥門和中壓管道。3第九章標準。要訂購EC-79認證組件,只需在零件號末尾添加后綴EC79即可。有關更多詳細信息,請參閱目錄編號02-0124SE。
Applications up to 700 bar (10,152 psi)
EC-79 TESTED
Medium Pressure Fittings - Cone and Thread - Autoclave Engineers
Tests Passed - Pending EC-79 Certification
Parker Autoclave Engineers medium pressure cone and thread connections are designed for applications that require higher flow rate capability. Manufactured from high tensile strength cold worked 316/316L Stainless Steel material as standard for 700 bar (10,152 psi) MAWP, this Medium Pressure range has all the benefits of the High Pressure version with all metal sealing for operations at temperatures from -40OC to +120OC (-40OF to +248OF). These fittings are designed for use with Parker Autoclave Engineers’ 20SM Series valves and medium pressure tubing according to ASME B31.3 Chapter IX standards. To order EC-79 certified components, simply add the suffix EC79 at the end of your part number. For more details please see catalogue ref. 02-0124SE. Available Sizes :1/4” to 1”
MWP :700 bar
Temperature :-40度 to +120度
Hydrogen Form :Gas, Liquid
Catalogue:02-0124SE
|
 |
SM系列中壓針閥 - Autoclave Engineers
測試通過-待EC-79認證
派克Autoclave EngineersSM系列閥門專為配合孔板中壓錐螺紋管件和管道而設計,使用錐螺紋式連接可實現最有效的流道。它們采用高抗拉強度UNS S31600/S31603冷加工316/316L不銹鋼材料制造,作為700巴(10152磅/平方英寸)最大允許工作壓力的標準。要訂購EC-79認證組件,只需在零件號末尾添加后綴HYGEC79即可。有關更多詳細信息,請參閱目錄編號02-0112SE。
Medium Pressure Needle Valves SM Series - Autoclave Engineers
Tests Passed - Pending EC-79 Certification
Parker Autoclave Engineers SM Series valves are designed specifically for use with matching orifice medium pressure cone & thread fittings and tubing for the most efficient flow path possible using cone & thread style connections. They are manufactured using high tensile strength UNS S31600/S31603 cold worked 316/316L Stainless Steel material as standard for 700 bar (10,152 psi) MAWP. To order EC-79 certified components, simply add the suffix HYGEC79 at the end of your part number. For more details please see catalogue ref. 02-0112SE.
壓力:700 bar
溫度:-40 度 to +120度
尺寸:1/4” to 1”
介質:Gas
Catalogue: 02-0112SE
|
 |

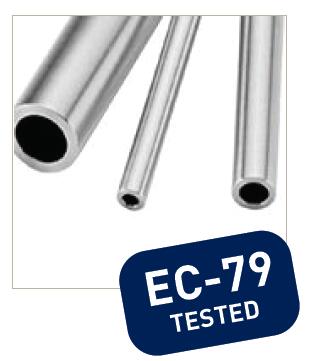

中壓管道 Autoclave Engineers
通過測試
派克Autoclave Engineers師提供全套austenetic冷拔不銹鋼管,其設計符合派克高壓滅菌器閥門和配件的性能標準。帕克高壓滅菌器工程師中壓管道是專為要求強度和耐腐蝕性的高壓應用而制造的。有關更多詳細信息,請參閱目錄編號02-0124SE。
Medium Pressure Tubing - Autoclave Engineers
Tests Passed
Parker Autoclave Engineers offers a complete selection of austenetic, cold drawn stainless steel tubing designed to match the performance standards of Parker Autoclave valves and fittings. Parker Autoclave Engineers medium pressure tubing is manufactured specifically for high pressure applications requiring both strength and corrosion resistance. For more details please see catalogue ref. 02-0124SE.
壓力:700 bar
溫度:-40 度 to +120度
尺寸:1/4” to 1”
介質:Gas
Catalogue: 02-0124SE
|

可用尺寸MWP溫度氫氣形式Available Sizes MWP Temperature Hydrogen Form
氫氣加油站的ISO產品ISO Products For H2 Refueling Stations
壓力高達700巴(10152磅/平方英寸)的加氫站部件。Components for hydrogen refueling stations for pressures up to 700 bar (10,152 psi).
通過測試,等待ISO 19880-3認證Tests Passed, Pending ISO 19880-3 Certification

派克的針閥和止回閥已成功通過ISO 19880-3認證中規定的氣態氫站用高壓閥所需的測試。這些機構目前正在等待完成實現認證的最后步驟。Parker's needle and check valves have successfully passed the required tests for high pressure valves used in gaseous hydrogen stations as specified in ISO 19880-3 certification. These are now awaiting the completion of the final steps towards achieving the certification.
 |

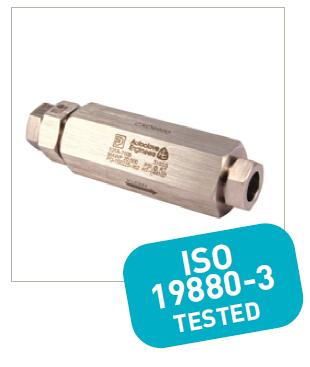

中壓O形圈止回閥CXO系列-Autoclave Engineers
已測試,等待ISO 19880-3認證
這些Parke Autoclave Engineers的O形圈止回閥CXO系列(HYG選件)可承受-73°C和316°C之間的溫度和高達1380 bar(20000 psi)的壓力。
閥門有兩種不同類型的連接選項,包括錐螺紋和MPI。
要訂購ISO 19880-3認證組件,只需在零件號末尾添加后綴HYG。
有關更多詳細信息,請參閱目錄編號02-0124SE。
壓力:700 bar (10,152 psi)
溫度:-73 度 to +316 度
尺寸:1/4” to 1”
氫氣介質:Gas
Catalogue:02-0112SE
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
Tested, Pending ISO 19880-3 Certification
These Parker Autoclave Engineers O-Ring Check Valves CXO Series (HYG option) can withstand temperatures ranging between -73°C and 316°C and pressures of up to 1,380 bar (20,000 psi).
The valves are available with two different styles of connection options including cone & thread and MPITM.
To order ISO 19880-3 certified components, simply add the suffix HYG at the end of your part number.
For more details please see catalogue ref. 02-0124SE. |
 |
中壓O形圈止回閥CXO系列 - Parker Autoclave Engineers
已測試,等待ISO 19880-3認證
這些Parker Autoclave Engineers的O形圈止回閥CXO系列(HYG選件)可承受-73°C和316°C之間的溫度和高達1380 bar( 20000 psi )的壓力。
閥門有兩種不同類型的連接選項,包括錐螺紋和MPI。
要訂購ISO 19880-3認證組件,只需在零件號末尾添加后綴HYG。
有關更多詳細信息,請參閱目錄編號02-0124SE。
壓力:700 bar (10,152 psi)
溫度:-73 度 to +316 度
尺寸:1/4” to 1”
氫氣介質:Gas
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
Tested, Pending ISO 19880-3 Certification
These Parker Autoclave Engineers O-Ring Check Valves CXO Series (HYG option) can withstand temperatures ranging between -73°C and 316°C and pressures of up to 1,380 bar (20,000 psi).
The valves are available with two different styles of connection options including cone & thread and MPI.
To order ISO 19880-3 certified components, simply add the suffix HYG at the end of your part number.
For more details please see catalogue ref. 02-0124SE. |

一般氫應用: 在真空至1380 bar( 20000 psi )壓力下用于一般氫氣應用的部件
派克提供廣泛的高質量組件和系統解決方案,適用于發電、石化、農業和研發等多種行業的一般氫氣使用。
高達414 bar( 6000 psi )的應用
General Hydrogen Applications
Components for general hydrogen applications at pressures from vacuum to 1,380 bar (20,000 psi).
Parker offers an extensive range of high-quality components and system solutions suitable for general hydrogen use in a wide variety of industries including power generation, petrochemical, agricultural and research & development.
Applications up to 414 bar ( 6000 psi)
高達414 bar( 6000 psi )的應用
 |
Two Ferrule Tube Fittings - A-LOK Series
A-LOK雙卡套接頭
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/16” to 2”
(2mm to 50mm) |
414 bar
(6,000 psi)* |
-253℃ to +538℃
(-423℉ to +1000℉)** |
Gas, Liquid |
|
*關于高達689巴的高壓管/管件組合,請參考派克管表(10000 psi)。
**需要考慮材料降級和介質兼容性因素高溫應用。 |
 |
Ball Valves - B Series - Isolation and Directional Control Valves
B系列隔離和方向控制閥球閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/8” to 3/4”
(3mm to 18mm) |
414 bar
(6,000 psi)* |
-54℃C to +232℃
(-65℉ to +450℉) |
Gas |
|
|
 |
Needle Valves - V Series - Isolation and Flow Control Valves
V系列針閥 隔離閥和流量控制閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/8” to 3/4”
(3mm to 18mm) |
345 bar
(5,000 psi) |
-54℃C to +232℃
(-65℉ to +450℉) |
Gas |
|
|
 |
F系列管式過濾器
F Series Inline Filters
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/8” to 1”
(3mm to 25mm) |
414 bar
(6,000 psi) |
-51℃ to +204℃
(-60℉ to +399℉) |
Gas |
|
|
 |
Check Valves - CO Series - Directional Control Valves
CO系列止回閥單向閥 - 方向控制閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1/2”
(6mm to 12mm) |
414 bar
(6,000 psi) |
-57℃ to +204℃
(-71℉ to +399℉) |
Gas |
|
|
 |
Stream Switching Systems - R-MaxTM Gen II Series
R-MaxTM Gen II系列 流交換系統
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/8” |
34 bar
(500 psi) |
-57℃ to +204℃
(-71℉ to +399℉) |
Gas |
|
|
 |
Modular Sample Conditioning Systems - IntraFlowTM Series
IntraFlowTM系列 模塊化樣品調節系統
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/8” |
34 bar
(500 psi) |
-57℃ to +204℃
(-71℉ to +399℉) |
Gas |
|
|
 |
Pressure Regulators - IR4000 and IR6000 Series
壓力調節器 - IR4000和IR6000系列減壓閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” |
276 bar
(4,000 psi) |
-40℃ to +260℃
(-40℉ to +500℉) |
Gas |
|
|
 |
Excess Flow Shutoff Valves - FS190 Series
FS190系列溢流切斷閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” |
241 bar
(3,500 psi) |
-23℃ to +66℃
(-9℉ to +151℉) |
Gas |
|
|
Applications up to 1,380 bar (20,000 psi)
高達1380 bar 氫氣應用
 |
Medium Pressure Two Ferrule Inverted Tube Fittings - MPI Series
MPI 系列中壓雙卡套接頭
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1” |
1,034 bar
(15,000 psi) |
-253℃ to +538℃
(-423℉ to +1000℉)* |
Gas, Liquid |
|
* Material de-rating and media compatibility factors need to be taken into consideration for
higher temperature applications. |
 |
Medium Pressure Fittings - Cone and Thread - Parker Autoclave Engineers
中壓管件 錐形和螺紋接頭
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1 1/2” |
1,380 bar
(20,000 psi)* |
-253℃to +538℃
(-423℉ to +1000℉)* |
Gas, Liquid |
|
* Material de-rating and media compatibility factors need to be taken into consideration for
higher temperature and higher pressure applications. Refer to technical catalogue 02-0142SE. |
 |
Permanent Ferrule-less Connectors - Phastite Series
Phastite 系列永久性無卡套連接器
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1”
(6mm to 25mm) |
1,380 bar
(20,000 psi)* |
-45℃ to +93℃
(-49℉ to +199℉F) |
Gas |
|
|
 |
Ball Valves - Hi-Pro Series - Isolation Valves
Hi Pro系列球閥 - 隔離閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1”
(6mm to 25mm) |
689 bar
(10,000 psi) |
-54℃ to +232℃
(-65℉ to +450℉) |
Gas |
|
|
 |
Ball Valves - HB Series - Isolation Valves
HB系列球閥 隔離閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/8” to 1/2”
(6mm to 12mm) |
489 bar
(10,000 psi) |
-54℃to +232℃
(-65℉ to +450℉) |
Gas |
|
|
 |
Needle Valves MAN - MPI Series
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1” |
1,034 bar
(15,000 psi) |
-73℃ to +316℃
(-99℉ to +601℉) |
Gas |
|
|
 |
Medium Pressure Needle Valves 15SM and 20SM Series - Autoclave Engineers
15SM和20SM系列中壓針閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1 1/2” |
1,380 bar
(20,000 psi)* |
-73℃ to +316℃
(-99℉ to +601℉)* |
Gas |
|
This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of
your part number. |
 |
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
CXO系列中壓O形圈止回閥-單向閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1” |
1,380 bar
(20,000 psi)* |
-73℃ to +316℃
(-99℉to +601℉)* |
Gas |
|
This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of
your part number. |
 |
Medium Pressure O-Ring Check Valves MAC - MPI Series
中壓O形圈止回閥MAC-MPI系列
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1” |
1,034 bar
(15,000 psi) |
-73℃ to +316℃
(-99℉ to +601℉)* |
Gas |
|
|
 |
Double Block & Bleed Needle Type Manifold - 20DBNV Series - Autoclave Engineers
20DBNV系列雙堵塞和排氣針式歧管閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 9/16” |
1,380 bar
(20,000 psi)* |
-73℃ to +316℃
(-99℉ to +601℉)* |
Gas |
|
This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of
your part number.
* Material de-rating and media compatibility factors need to be taken into consideration for higher temperature and higher
pressure applications. Refer to technical catalogue 02-0142SE. |
 |
Relief Valves - Soft Seat RVS Series - Autoclave Engineers
RVS系列軟座安全閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
9/16” |
1,380 bar
(20,000 psi)* |
0℃ to +204℃
(32℉ to +399℉) |
Gas |
|
This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of your part
number. |
 |
Medium Pressure Tubing - MPI Series
中壓不銹鋼管件
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1” |
1,034 bar
(15,000 psi) |
-253℃ to +538℃
(-423℉ to +1000℉) |
Gas, Liquid |
|
|
 |
Medium Pressure Actuators - Autoclave Engineers
中壓氣控閥
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1 1/2” |
1,380 bar
(20,000 psi) |
-73℃ to +316℃
(-99℉ to +601℉) |
Gas, Liquid |
|
|
 |
Medium Pressure Adapters - Autoclave Engineers
中壓接頭
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1 1/2” |
1,379 bar
(20,000 psi) |
-253℃ to +538℃
(-423℉ to +1000℉)* |
Gas, Liquid |
|
|
 |
Medium Pressure Accessories - Autoclave Engineers
中壓附件
尺寸 |
壓力 |
溫度 |
Hydrogen Form
氫形態 |
Catalogue |
1/4” to 1 1/2” |
1,380 bar
(20,000 psi) |
-253℃ to +538℃
(-423℉ to +1000℉)* |
Gas, Liquid |
|
|
* Material de-rating and media compatibility factors need to be taken into consideration for higher temperature and higher pressure applications. Refer to technical catalogue 02-0142SE.
低溫/液氫 H2應用 Cryogenic/LH2 Applications

低溫/液氫應用部件,溫度低至-253OC(-423OF),壓力高達50巴(725磅/平方英寸)。Parker Bestobell的閥門設計和制造適用于1組氣體,適用于溫度低至-253OC的液氫應用。所有閥門在發貨前都經過壓力測試。Components for cryogenic/LH2 applications at temperatures down to -253OC (-423OF) and pressures up to 50 bar (725 psi). Designed and engineered for use with Group 1 gases, Parker Bestobell's valves are suitable for liquid hydrogen applications requiring temperatures as low as -253OC. All valves are pressure-tested prior to dispatch.
若要訂購,請?jiān)诹慵?hào)末尾添加后綴-H。To order, add the suffix -H at the end of your part number.
 |
Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Bestobell Industrial 帶青銅內件的不銹鋼截止閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld
Flange Class
150 and 300 |
Soft |
DN15 to DN100
(1/2” to 4”) |
Up to 50 bar
(725 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉to +149℉) |
Gas, Liquid |
|
|
|
 |
Globe Valves - Stainless Steel - Bestobell Marine
不銹鋼截止閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld
Flange Class
150 and 300 |
Metal
to
Metal |
DN15 to DN100
(1/2” to 4”) |
Up to 50 bar
(725 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉to +149℉) |
Gas, Liquid |
|
|
|
 |
Pneumatically Actuated Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Bestobell Industrial帶青銅內件的不銹鋼氣動截止閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld
Flange Class
150 and 300 |
Soft |
DN15 to DN100
(1/2” to 4”) |
Dependent
on end
connections/
actuator |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
 |
Pneumatically Actuated Globe Valves - Stainless Steel -
Bestobell Marine不銹鋼氣動截止閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld
Flange Class
150 and 300 |
Metal
to
Metal |
DN15 to DN100
(1/2” to 4”) |
Dependent
on end
connections/
actuator |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
 |
Lift Check Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Bestobell Industrial不銹鋼帶青銅內件提升止回閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld
Flange Class
150 and 300 |
Metal
to
Metal |
DN15 to DN100
(1/2” to 4”) |
Up to 50 bar
(725 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
 |
Lift Check Valves - Stainless Steel - Bestobell Marine
不銹鋼提升止回閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld
Flange Class
150 and 300 |
Metal
to
Metal |
DN15 to DN100
(1/2” to 4”) |
Up to 50 bar
(725 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
 |
Swing Check Valves - Stainless Steel - Bestobell Marine
不銹鋼旋啟式止回閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Various
Contact Parker |
soft |
DN25 to DN80
(1” to 3”) |
Up to 50 bar
(725 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
 |
Manual Gate Valves - Stainless Steel - Bestobell Industrial
不銹鋼手動閘閥
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld |
soft |
DN40 to DN100
(1 1/2” to 4”) |
Up to 40 bar
(580 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
 |
Actuated Gate Valves - Stainless Steel - Pneumatic Tyre Design - Bestobell Industrial
不銹鋼驅動閘閥 充氣輪胎設計
連接方式 |
閥座類型 |
尺寸 |
壓力 |
Butt Weld
Socket Weld |
soft |
DN40 to DN100
(1 1/2” to 4”) |
Up to 40 bar
(580 psi) |
溫度 |
氫形態 |
Catalogue |
|
-253℃ to +65℃
(-423℉ to +149℉) |
Gas, Liquid |
|
|
|
HYG Option 氫用選項
HYG氫用選項 更換了閥桿、填料和材料。包裝材料為聚四氟乙烯玻璃PTFE-Glass。閥稈經過增強,特殊硬化。HYG使閥門適用于低至零下73度。氣閥門在裝運前經過100%氦氣測試。閥門壽命45000循環。該HYG選項選件設計用于驅動閥,但也適用于手動閥。單向閥和安全閥。HYG Change the stem, packing and material. The packing material is PTFE-Glass. The stems are upgrated, special hardening. HYG make the valve suitable for use down to zero 73. 100% helium seat tested prior to shipment. Go beyone 45000 cycles befor first leakage. This option was designed for actuated valves, but also good for manual valves. check and relief valve.
型號 |
產品描述 |
| CXF6-5-HYG |
Line filter hydrogen service |
| CXO4400-HYG |
Check valave o-ring hydrogen |
| CXO9900-HYG |
Check valave o-ring hydrogen |
| RSM607-O1SHYG |
Vave R/Kit 20SM6071727374-O1S |
| RSM907-O2SHYG |
Valve repair kit |
| 10RVP9072-HYG |
Relief valve assy helium tested |
| 101B-6322-HYG |
Plug 10RVP - Insp for HYG service |
| 102B-6324-HYG |
Seat 10RVP - INSP for HYG service |
| 20SM4071-HYG |
Valve assembly hygrogen service |
| 20SM6071-C1SHYG |
air valve assy |
| 20SM6071-O1SHYG |
air valve assy |
| 20SM6072-O1SODBHYG |
Obsoleter use 20SM6072-O1SODHYG |
| 20SM6072-O1SODHYG |
Valve assy - OD-Hydrogen service |
| 20SM6072-O1SWOA-HYG |
air valve assy |
| 20SM9071-HYG |
Valve assembly hygrogen service |
| 20SM9071-O1SODHYG |
Air valve - o1s outdoor / HYG service |
| 20SM9071-O2SODHYG |
Air valve - o2s outdoor / HYG service |
| 20SM9072-O2SODHYG |
Air valve - o2s outdoor / HYG service |
| 30VM4081-FRC1LTHYG |
valve assembly |
| 30VM4081-FRC1XHYG |
valve assembly |
| 30VM4081-O1SLTHYG |
air valve low temp hyg service |
| 6MP7-MACL-20-TO-SS-HYG |
check valve o-ring 3/8in hydrogen |
| 6MP7-MANAB-TGSS-C1SOD-HYG |
air valve 3/8 in MPI Hydrogen |
| 6MP7-NANAB-TGSS-O1SOD-HYG |
Two way angle w/O1S Hydrogen |
| 6MP7-MANLR-TG-SS-HYG |
Medium pressure needle valve |
| 60VM6081-FRC1XHYG |
valve assembly |
|
