Parker 3000/5000 PSI – FA21/FA35系列耐火防井噴BOP軟管
Parker派克BOP軟管，專為承受火燒、耐高溫和高壓的液壓極端應用而設計
Blowout Preventer Hose Fire Rated Hydraulic Hose Assemblies for Land and Topside BOP Applications

Parker派克BOP軟管，專為承受火燒、耐高溫和高壓的液壓極端應用而設計，并且該軟管被證實確實安全可靠。Parker派克全系列防井噴BOP軟管，專為油田深鉆和探測應用中極其苛刻的場合而設計。Parker派克公司高性能BOP軟管也同時專為承受火燒、耐高溫和高壓的液壓極端應用而設計，并且該軟管被證實確實安全可靠。另外FA35系列 BOP 軟管表面也可提供金屬鎧甲的產品形式，其軟管總成完全按照美國石油工業API 16D 標準進行測試和標定，并通過了勞氏船級社的批準和認證，同時該軟管滿足或超過 OD/1000/499 標準規定，即在 1300° F (+705°C) 溫度的火焰上燃燒五分鐘的耐火實驗。根據客戶指定的工業技術要求相應選擇 3000 或者 5000 PSI 的軟管產品。

Parker 3000/5000 PSI – FA21/FA35系列耐火防井噴BOP軟管
Blowout Preventer Hose Fire Rated Hydraulic Hose Assemblies for Land and Topside BOP Applications

Parker Hannifin’s complete line of Blowout Preventer hoses (BOP) is developed to meet the most rigorous demands in exploration and deep drilling.Our high-performance BOP hoses are designed for hydraulic use and certified to withstand fire, high heat and pressures in safety critical applications. All Fire Armor BOP hose assemblies are tested and approved by Lloyd’s Register, complying with American Petroleum Industry API 16D guidelines to meet and exceed OD/1000/499 flame testing at 1300 °F for five minutes.Parker’s complete range of BOP hoses are used for hydraulic connections between the well control equipment and the control system. Our products combine our trusted ParLock multi-spiral hose range with Interlock connection and optional stainless steel armor to protect the system from external shock.

市場：
- 油&氣Oil & Gas

特性/優點：
- 按單生產的靈活設計完全基于客戶自身的具體要求
- 可提供碳鋼和不銹鋼軟管接頭
- 全系列尺寸規格從 -6 到 -32 劃線尺寸；工作壓力從 3000 到 5000 PSI。
- 耐火能力

FA21 HOSE


- 在那些需要耐火的通常應用中，
- 鋼絲編織結構能確保所有尺寸規格達到 3000 psi 恒定工作壓力的要求
- 勞氏船級社按照 API 16D 標準要求的火燒實驗進行檢測
- 同時厚壁的紅色合成橡膠外膠層表面具有相應的耐火能力
- 同時裝配絕緣護套來進一步滿足火燒實驗的要求
- 最小彎曲半徑只有 SAE 標準規定值的一半，確保了軟管管路布置的簡單高效

FA35 HOSE

- 鋼絲纏繞結構保證了 5000 PSI 恒定工作壓力的特性
- 勞氏船級社完全按照 API 16D 標準規定的火燒實驗要求進行認證
- 紅色的厚壁合成橡膠外膠層表面也具有相應的耐火燒的能力
- V系列軟管接頭可同時提供 API 和 NPT 外螺紋連接形式

表面鎧甲形式產品 (可選)

- 金屬鎧甲表面保護軟管免受外部損壞、高溫和火燒
- 也可提供 304 不銹鋼材料的鎧甲
- 勞氏船級社完全按照 API 16D 標準規定的火燒實驗要求進行嚴格檢測

應用：

- 石油基液壓流體和潤滑油Petroleum base hydraulic fluids and lubricating oils

匹配扣壓的接頭系列：
- 43 系列軟管接頭
- V 系列軟管接頭

性能特點

流體類型 石油基液壓油以及潤滑油
HOSE INNER TUBE MATERIAL 合成橡膠
兼容配件 43 Series, VS Series, V4 Series , and V6 Series
MINIMUM BEND RADIUS (MM) 65 - 630
應用 Hydraulic, Oilfield
軟管內徑（尺寸） -6 to -32
最大工作壓力 (BAR) Up to 350
最大工作壓力 (PSI) Up to 5000
媒介 Hydraulic Fluids, Lubricants
材料 - 軟管加固 鋼絲加強
軟管蓋材料 紅色 PKR 橡膠
最低工作溫度 (F) -40
最高工作溫度 (F) 212
最低工作溫度 (C) -40
最高工作溫度 (C) 100
軟管蓋類型 耐火能力

COMPLIANCE, CERTIFICATIONS, & SAFETY
產品技術資料下載：

REACH HPDE Declaration--July 2017
LITERATURE AND REFERENCE MATERIALS
BOP Brochure
How to assembly Parkrimp No-Skive Hose KK1-KK2--WC4400-10_UK
How to make Parkrimp No-Skive hose assemblies with a Parkrimp 2 --WC4400-11_UK
How to order hydraulic hose and fittings
Hydraulic Hose, Fittings and Equipment Quick Reference Guide
Hydraulic Hoses--WC4400-2_UK
Parkrimp No-Skive Crimp Dimensions Wall Chart--WC4400-4/UK-DE-FR
Parkrimp No-Skive Crimp Dimensions – Prensado – Pressatura--WC4400-4_UK_ES_IT

可根據要求提供定制配置和尺寸。有關其他信息，請聯系派克低壓流體連接件事業部010-84282935或fcg.cnmec@parkerdistribution.com.cn。

Parker launches blowout preventer hydraulic hoses
JUNE 9, 2017 BY MARY GANNON LEAVE A COMMENT

A line of blowout preventer hydraulic hoses was unveiled by Parker Hannifin at OTC last month. Designed for use topside, offshore and inland for oil and gas, these BOP hoses meet the API16D flame test and Lloyd’s Register 1499 test, said Michael Clark, business development manager for Parker Hannifin’s Fluid Connectors Group.

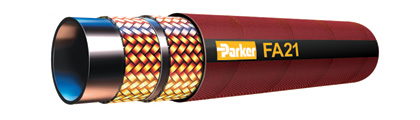

Parker-FA21 blowout preventer hydraulic hosesThey are available in a braided construction with a pressure rating of 3,000 psi, in size 6 to 16 (3/8 to 1 in.) or a spiral construction rated to 5,000 psi in sizes 6 to 32 (3/8 to 2 in.)

Parker had an external lab certify flame tests. The API16D flame test requires the hydraulic BOP hose to be pressurized to working pressure, and it must withstand a flame of 1,300°F for 5 minutes without losing any pressure. Lloyd’s 1499 is a similar test.

“We have three pillars to this offering,” Clark said. “This is how we differentiate ourselves. The first pillar is the product itself. It was imperative for us to meet the flame requirements of the API16D. We did that with special flame resistant materials on the cover.”

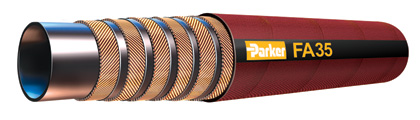

Parker-FA35-BOP-hydraulic-hose Most BOP hoses are wrapped in fiberglass and then covered with stainless steel to meet those flame tests. Although Parker does offer a traditional BOP hose that is wrapped in a stainless-steel cover, the non-armored designs use a special jacketing material to meet the flame resistance tests.

“Some people don’t like change, or they want some protection for external abuse in offshore, so some people still want the stainless steel,” Clark said. “So what we did was we just designed it so it would go right over top of the hose. There is no fiberglass or anything there, so it’s the one hose that’s already rated and we’re just adding to it.”

The second pillar was not only meeting the API16D flame test but also meeting Lloyd’s Type approval, which Clark said is the highest approval you can achieve on a product like a hose. A Type Approval from Lloyd’s Register demonstrates that a product conforms to recognized industry quality standards, International Conventions and/or the LR Rules, through a process of independent design review, sample testing and verification of production controls.

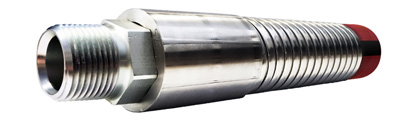

Parker-FA-wArmor-BOP-hydraulic-hose-with-armor“When Lloyd’s does Type Approval, what they do is they come in and they inspect your manufacturing process, and they give you approval on that. They inspect your testing facilities and how you’re running tests to make sure everything’s calibrated and you’re doing everything properly,” he said. “They witness your assembly locations and make sure that they are trained and that they have a quality process in place, and they sign off on that. When those three things are complete, then you can get Lloyds type approval.”

Parker is also in the process of having several key distributors also certified to Lloyd’s Type Approval. Finally, the third pillar is on the preventative maintenance side, which relies on Parker’s PTS Pro (Parker Tracking System), to recommend or schedule maintenance. The PTS system uses coded tracking labels and RFID technology to keep track of a hose assembly, so it is quickly identified for replacement. It allows users to easily maintain a database of their hose assembly types, styles and how long they have been in use.

“BOP’s can go out in the field and we’re seeing a lack of accountability on when they were put into service and when they’re being replaced,” Clark said. “Using the PTS to schedule that maintenance, we can at the very least give our customers a notification saying it’s been in service for whatever length of time they would want to specify, and let them know that it’s time to either inspect or replace that hose. That’s something that separates us from our competition.”
