Parker CPI Series single ferrule compression fittings
Parker CPI™ / A-LOK® Instrumentation Tube Fittings
Parker CPI系列單卡套接頭
Parker CPI單卡套接頭采用了精密加工部件的單卡套管接頭專門用于為車輛提供安全和防泄漏連接。Suparcase卡套可以在閥體與閥座間進行獨特的弓形連接，因此非常適合振動工況的應用。Parker CPI系列單卡套接頭,派克的 CPI系列單卡套接頭在過程儀表控制系統中能夠提供有效的密封，良好的抗震、抗熱循環性能。多種材質可選。派克精密儀表接頭廣泛用于過程控制、電力、石化和天然氣
等行業，為液體、氣體和化學品系統連接提供解決方案。
派克始終堅持為客戶設計和制造穩定、可靠、高品質的儀表
接頭，所有產品的工作壓力都符合ANSI B31.3.標準。
Parker's CPI Series single ferrule compression fittings pdf catalog
Parker CPI系列單卡套接頭技術資料下載
 |
CPI 單卡套接頭 (Catalog 4230/4233)

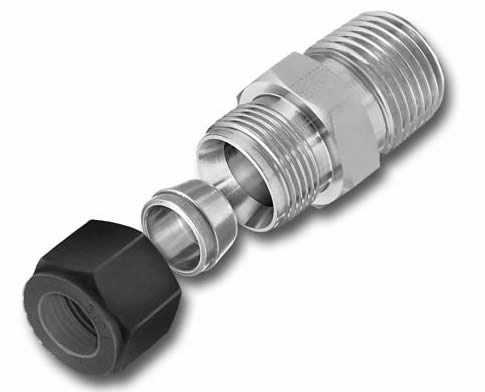

由三個零件構成，適用于所有
儀表級鋼管的連接
- 螺母經二硫化鉬涂層處理，可提供良好的潤滑并有效防止螺紋咬死。
- 卡套經Suparcase專利硬化技術處理，提高硬度的同時保證了卡套的耐腐蝕性能，確保密封
- 精密加工的接頭體密封面可提供良好密封
- 單卡套設計可提供良好的抗振性能
- 在高/低溫熱循環應用中表現優異
|
 |
A-LOK 雙卡套接頭 (Catalog 4230/4233)
- 符合行業設計標準，適用于所
- 有儀表級鋼管連接
- 螺母內壁經鍍銀處理，減少咬死現象的發生。
- 后卡套采用Suparcase專利硬化技術處理，可有效嵌入鋼管，形成可靠的機械密封。
- 雙卡套設計符合系統使用規范
|
【CPI單卡套接頭特點】
- 尺寸：1/16"-2"或2mm-25mm
- - 高工作壓力：6000 psig
- CPI與A-Lok可互換
- Suparcase硬化工藝
- 316、哈C、Monel、6Mo、鈦等多種材料可選
- 通過數千次以上極端振動和壓力應用測試，其中包括天然氣行業的應用
- 鍍二硫鉬螺母細牙螺紋，確保不會發生咬死現象
- 采用單卡套連接形式，自大限度減小裝配錯誤的機會
Catalog 4230/4233-CH CPI / A-LOK卡套接頭 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
【詳細說明】
- CPI單卡套和A-Lok雙卡套接頭
- 尺寸：1/16"-2"或2mm-25mm
- - 高工作壓力：6000 psig
- CPI與A-Lok可互換
- Suparcase硬化工藝
- 316、哈C、Monel、6Mo、鈦等多種材料可選
Parker派克CPI單卡套接頭 三個零件構成，特殊涂層及專利硬化技術，確保防止螺紋咬死、高密封性、耐用耐高溫抗振動。Parker派克A-LOK 雙卡套接頭 雙卡套符合行業標準，適用性廣，特殊涂層及專利硬化技術，確保防止螺紋咬死、高密封性、耐用�？ㄌ资焦芙宇^具有連接牢靠、耐壓力高、密封性和反復性好、安裝和檢修方便、工作安全可靠等特點。她與鋼管連接時不需焊接，有利于防火、防爆和高空作業，并能消除因在焊接時不慎而帶來的滲漏和堵塞現象，被煉油、化工、輕工、紡織、國防、冶金、航空、造船、醫藥、機械等領域優先采用，亦適用于各種工程機械、機床設備等方面的液壓傳動管路。
Parker Hannifin Corporation
Instrumentation Products Division
Huntsville, AL USA
Tube Fitting,Single Ferrule Compression Fitting - CPI Series。Parker’s single ferrule compression fittings, CPI Tube Fittings are designed to effectively seal and also resist vibration and thermo-cycling conditions in process, and instrumentation system connections. Available in a wide range of material。

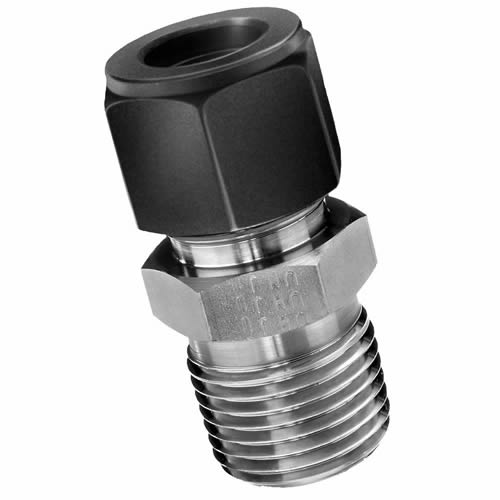

Parker CPI single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut.
CPI tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.
The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D. These gaugeable tube fittings are manufactured to the highest industry quality standards.
Markets:
- Chemical
- Petro-Chemical
- Power
- Nuclear
- Oil and Gas
- Pulp and Paper
Features/Benefits:
- Single Ferrule for easy makeup
- Molybdenium Disulfide coated nuts for low torque make-up
- Parker Suparcase ferrule for superior corrosion resistant
- Hardened ferrules provide optimum performance
Applications:
- Instrument Air Lines
- Heat Trace systems
- Process Lines
Performance Characteristics
Fitting Type Compression
Tube Size 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 3/16", 1/4", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, 3/4", 3/8", 1/8", 1/16", 3/16", 1-1/4", 1-1/2", 2", 22 mm, 5/8", 14 mm, 2 mm
Shape 37 Flare to Tube Connector, Bulkhead Union, Cap, Column End Fitting ? (without Frit), Column End Fitting ? Low Internal Volume, Column End Fitting ? Low Internal Volume (without Frit), Column End Fitting ? Low Internal Volume with Frit, Column End Fitting
Connection 1 Size 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 1/8", 3/16", 1/4", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, 3/4", 3/8", 1/16", 3/16", 1-1/4", 1-1/2", 2", 22 mm, 5/8", 14 mm, 2 mm
Connection 2 Size 3/8", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 1/4", 3/16", 1/8", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, N/A, 3/4", 1/2", 1-1/4", 1-1/2", 2", 2 mm, 14 mm, 22 mm, 3/16"
Connection 3 Thread Size (inch) N/A, 3/4", 1/8", 1/4", 3/8", 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1-1/4", 1/8", 1-1/2", 2", 3/16", 3/16", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 2 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm
Material 316 Stainless Steel, Steel, Brass
Style 37 Flare to CPI, Tube to Tube, Components, Analytical Fittings, Tube to Female Pipe, Tube to Male Pipe, Port Connectors, Tube to Tube Union
Compliance, Certifications, & Safety
ANSI/ASME B31.1 & B31.3
ASTM F1387
CPI & A-LOK Tube Fittings ANSI/ASTM B31.1 & B31.3 Report Summary
CPI & A-LOK Tube Fittings ASTM F1387 Test Summary - EPR 4230/4233
ISO 9001
