PARKER A-LOK雙卡套接頭(Catalog 4230/4233)

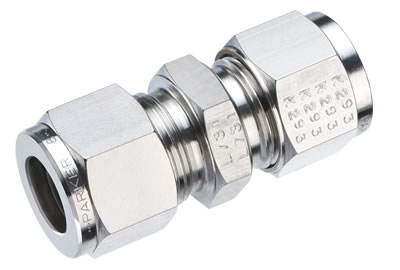

Parker A-LOK Two Ferrule Compression Tube Fittings
Parker A-LOK系列 雙卡套接頭
PARKER派克A-LOK雙卡套接頭為過程儀表控制和工業應用等提供無泄漏的可靠連接。多種材質可選。采用了精密加工部件的雙卡套接頭專門用于為車輛提供安全無泄漏連接。采用- 高標準制造。派克A-LOK 雙卡套接頭為過程儀表控制和工業應用等提供無泄漏的可靠連接。多種材質可選。派克的 A-LOK 雙卡套接頭系列產品能夠?yàn)閮x器儀表，過程控制和分析行業等提供穩定的無泄漏密封連接。接頭嚴格按照更高質量標準制造，多種尺寸、耐腐蝕材料和結構可選。根據行業標準，派克的 A-LOK 管接頭采用316不銹鋼制造，其它材質如：6Mo合金，825合金，625合金和C-276合金可選。直通接頭用冷加工工藝制造，而其他特殊形狀管件通過細晶粒鍛造工藝制成。該管接頭適用于不同規格的鋼管，英制管外徑從1/16” 到 2” ，公制管外徑從2mm到25mm。Parker’s A-LOK two ferrule compression tube fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule system. Manufactured to the highest quality standards, these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.
Parker A-LOK Two Ferrule Compression Tube Fittings PDF Catalog
A-LOK雙卡套接頭技術資料下載
- A-LOK卡套接頭性能特點
- 已經在世界各地的天然氣應用中獲得使用驗證。
- 可提供多種尺寸、材料與配置
- 符合行業設計標準，適用于所有儀表級鋼管連接
- 螺母內壁經鍍銀處理，減少咬死現象的發生。
- 后卡套采用Suparcase專利硬化技術處理，可有效嵌入鋼管，形成可靠的機械密封。
- 雙卡套設計符合系統使用規范
Catalog 4230/4233-CH CPI / A-LOK卡套接頭 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
市場：
- 半導體/微電子
- 化工
- 石化
- 電力
- 核能
- 油氣
- 科研機構
特征和優勢：
-擁有廣泛的可選結構；
卡套管-外螺紋接頭
卡套管-內螺紋接頭
聯合接頭
卡套轉換接頭
37?擴口 (AN) 與 A-LOK 轉換接頭
O型圈密封管接頭
卡套管轉焊接接頭
色譜分析用接頭
軟管接頭
- 采用 Suparcase表面硬化處理工藝
- 硬化處理后的卡套能夠提供無泄漏連接
- 螺母內壁經鍍銀處理，減少螺紋咬死現象發生
應用：
- 蒸汽管線
- 海上井口控面板
- 傳感線路
性能特點：
配件類型 |
卡套式 |
管道外徑 |
1/4", 3/8", 1/2", 3/4", 1", 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm |
形狀 |
NPT外螺紋接頭，聯合接頭，三通聯合接頭，NPT外螺紋彎頭，直角管接頭，穿板接頭，NPT內螺紋接頭，NPT外螺紋管端接頭，BSPP外螺紋直通接頭，封口，37°擴口接頭，堵頭，BSPP表接頭，NPT直管外螺紋三通接頭，BSPP外螺紋直通接頭（帶ED密封） |
連接1尺寸 |
3/4", 1", 1/8", 3/8", 1/2", 3/8", 1/16", 1/4", 6 mm, 12 mm, 1/2", 10 mm, 5/8", 3/4", 1/4", 20 mm, 8 mm, 5/16", 25 mm, 16 mm |
連接2尺寸 |
3/4", 1", 1/8", 3/8", 1/2", 3/8", N/A, 1/4", 1/2", 10 mm, 12 mm, 6 mm, 1/4", 5/8", 3/4", 1/16", 5/16", 20 mm, 25 mm, 8 mm, 16 mm |
連接3螺紋尺寸 |
N/A, 3/8", 1/2", 1/4", 3/4", 1/4", 3/4", 1", 3/8", 1/2", 10 mm, 12 mm, 20 mm, 25 mm, 6 mm, 8 mm, 5/8", 5/16" |
結構材料 |
316不銹鋼，6Mo合金，825合金，625合金，C-276合金 |
產品風格 |
卡套管-外螺紋接頭，聯合接頭，接管接頭，卡套管-內螺紋接頭，卡套管轉換接頭，備件，37°擴口（AN）與A-LOK?轉換接頭，卡套管焊接接頭 |
As standard, Parker’s A-LOK tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.
The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D.
Markets:
- Semiconductor/Microelectronics
- Chemical
- Petro-Chemical
- Power
- Nuclear
- Oil and Gas
- Research Labs
Features/Benefits:
- Exceptionally wide choice of configuration styles;
Tube to male pipe
Tube to female pipe
Tube to tube unions
Port connectors
37 flare (AN) to A-LOK
Tube to O-ring seal
Tube to welded systems
Analytical fittings
Barbed fittings
- Parker Suparcase surface treatment process for superior material hardening
- Hardened ferrules provide leak free connections
- Silver plated nuts provide gall resistance during makeup
Applications:
- Steam Service Lines
- Offshore Control Panels
- Sensing Lines
Performance Characteristics
Fitting Type Compression / Flareless
Tube Size 3/4", 1", 1/8", 3/8", 1/2", 3/8", 1/16", 1/4", 6 mm, 12 mm, 1/2", 10 mm, 5/8", 3/4", 1/4", 20 mm, 8 mm, 5/16", 25 mm, 16 mm
Shape 37 Flare to Compression, Back Ferrule, BSPP Gauge Connector, BSPP Male Connector, BSPP Male Connector with ED Seal, Bulkhead Union, Cap, Drop Size Tee, Female Bulkhead Connector, Ferrule Set, Front Ferrule, Front Ferrule , Gauge Connector, Male Bulkhead C
Connection 1 Size 3/4", 1", 1/8", 3/8", 1/2", 3/8", 1/16", 1/4", 6 mm, 12 mm, 1/2", 10 mm, 5/8", 3/4", 1/4", 20 mm, 8 mm, 5/16", 25 mm, 16 mm
Connection 2 Size 3/4", 1", 1/8", 3/8", 1/2", 3/8", N/A, 1/4", 1/2", 10 mm, 12 mm, 6 mm, 1/4", 5/8", 3/4", 1/16", 5/16", 20 mm, 25 mm, 8 mm, 16 mm
Connection 3 Thread Size (inch) N/A, 3/8", 1/2", 1/4", 3/4", 1/4", 3/4", 1", 3/8", 1/2", 10 mm, 12 mm, 20 mm, 25 mm, 6 mm, 8 mm, 5/8", 5/16"
Material 316 Stainless Steel, Alloy 625, 6Mo, Alloy 825, Brass, Alloy C-276, Steel
Style 37° Flare (AN) to A-LOK, Components, Tube to Female Pipe, Tube to Male Pipe, Tube to Tube Unions, Port Connectors, Tube to O-Ring Seal, Tube to Welded Systems, Tube to Tube
Compliance, Certifications, & Safety
ABS Product Design Assessment - A-LOK Tube Fittings
CPI & A-LOK Tube Fittings ANSI/ASME B31.1 & B31.3 Compliance
CPI & A-LOK Tube Fittings ANSI/ASTM B31.1 & B31.3 Report Summary
CPI & A-LOK Tube Fittings ASTM F1387 Engineering Performance Report
CPI & A-LOK Tube Fittings ASTM F1387 Test Summary - EPR 4230/4233
Lloyds Register - A-LOK Type Approval
TUV Certificate - A-LOK Interchanging and Intermixing
Literature and Reference Materials
A-LOK - Assembly & Remake Instructions
A-LOK - Catalog
A-LOK - Catalogue
A-LOK - Female Connector - Dimensional Data
A-LOK - How to Order
A-LOK - Male Connector - Dimensional Data
A-LOK - Male Elbow - Dimensional Data
A-LOK - Male Tee - Dimensional Data
A-LOK - Suparcase Surface Treatment Process
A-LOK - Suparcase Surface Treatment Process
A-LOK - Union Cross - Dimensional Data
A-LOK - Union Elbow - Dimensional Data
A-LOK Assembly and Remake Instructions Wall Chart--4190-1
Catalog 4200-PC/USA
Connector and Tubing Solutions Technical Guide
Fittings, Materials and Tubing Guide
Parker Instrument Tubing
Parker SuparCase Technology
A-LOK Tube Fittings Chart
Product Demos & Tutorials
A-LOK Assembly Animation
A-LOK Assembly Video
A-LOK Assembly with a preassembly tool video
A-LOK Tube Burst Demonstration Video
Selector Guides
A-LOK - How to Order
Training
Process Platform Training
Small Bore Expert (SBEx) Training
