技術特點：
- 本體尺寸范圍：1/4” – 3/4”
- 材質：碳鋼
- 尾端連接形式：NPTF內螺紋，ORB內螺紋，BSPP內螺紋
- 密封選項：丁腈橡膠，EPR，碳氟化合物，氯丁橡膠

市場：
- 工業
- 建筑
- 農業

特點/優點：
- 錐閥端使用嵌入式密封，能夠防止密封圈被沖出
- 標準尾端連接形式：NPTF內螺紋，ORB內螺紋，BSPP內螺紋

性能特點

最大工作壓力 (PSI) 高達 6000
流速 (GPM) 高達 28
密封材料 丁腈橡膠
媒介 液壓
半聯軸器 芯子
最低工作溫度 (F) -40
最高工作溫度 (F) 250
閥門樣式 錐閥
主體材料 碳鋼
螺紋樣式 內螺紋
連接類型 NPTF | BSPP | ORB
電鍍 鍍鋅，白色三價鉻鈍化
應用 液壓|一般用途

應用：
- 工業液壓管路
- 工程機械

LITERATURE AND REFERENCE MATERIALS
- SM Series Catalog

Features

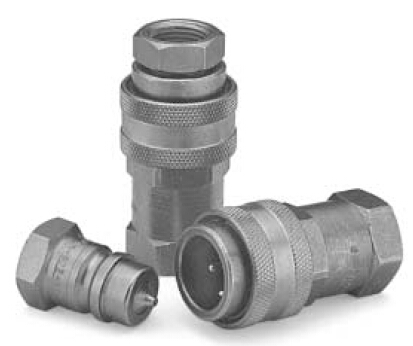

The SM Series couplings feature:
- Poppet valves with captive valve seals: the valve seal is positively captured by the metal poppet to minimize seal washout.
- Coupler and nipple are precision machined from solid barstock.
- SM Series are available in female pipe (NPTF), SAE O-Ring Boss and British Pipe (BSPP) as standard.

Applications
SM Series couplings are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Designed for use with commercial grades of hydraulic fluids. These couplings are ideally suited for all mobile or industrial applications.

Note: Protective dust plugs and caps play a crucial role in the life of a quick coupling and no purchase of a hydraulic quick
coupling is complete without the selection of an appropriate dust plug and cap. See pages noted in Table of Contents for
dust plugs and caps for the Parker full line of hydraulic couplings.

Specifications
Body Size (in.) 1/4 1/2 3/4
Rated Pressure (PSI) 6,000 6,000 4,500
Rated Flow (GPM) 3 12 28
Temperature Range (Nitrile Seals) -40° to +250°F

Body Part Dimensions (in.)
Size No. Thread Overall Hex Largest Wt. (LB.)
(in.) Steel Size Length Size Diameter P/Piece
A B C
1/4 SM-251-4FP 1/4-18 NPTF 1.89 0.75 1.06 0.24
1/4 SM-251-4FB G1/4 BSPP 2.04 0.75 1.06 0.26
1/4 SM-251-6FP 3/8-18 NPTF 2.04 0.94 1.06 0.28
1/4 SM-251-6FB G3/8 BSPP 2.04 0.94 1.06 0.26
1/4 SM-251-6FO 9/16-18ORB 2.04 0.75 1.06 0.25
1/2 SM-501-8FP 1/2-14 NPTF 2.81 1.25 1.56 0.70
1/2 SM-501-8FB G1/2 BSPP 2.95 1.25 1.56 0.74
1/2 SM-501-12FP 3/4-14 NPTF 2.99 1.37 1.56 0.81
1/2 SM-501-12FB G3/4 BSPP 3.16 1.37 1.56 0.85
1/2 SM-501-8FO 3/4-16ORB 2.95 1.25 1.56 0.70
3/4 SM-751-12FO 1 1/16-12ORB 3.62 1.62 2.25 1.78
3/4 SM-751-12FP 3/4-14 NPTF 3.62 1.62 2.22 1.83
3/4 SM-751-12FB G3/4 BSPP 3.76 1.62 2.22 1.88
3/4 SM-751-16FP 1-11 1/2 NPTF 3.90 1.62 2.22 1.84
3/4 SM-751-16FB G 1 BSPP 3.90 1.62 2.22 1.89
3/4 SM-751-16FO 1-5/16-12ORB 3.90 1.62 2.22 1.89

Body Part Dimensions (in.)
Size No. Thread Overall Exposed* Hex Largest Wt. (LB.)
(in.) Steel Size Length Length Size Diameter P/Piece
D E F G
1/4 SM-252-4FP 1/4-18 NPTF 1.29 0.50 0.75 0.87 0.08
1/4 SM-252-4FB G1/4 BSPP 1.44 0.65 0.75 0.87 0.09
1/4 SM-252-6FP 3/8-18 NPTF 1.60 0.81 0.94 1.08 0.14
1/4 SM-252-6FB G3/8 BSPP 1.60 0.81 0.94 1.08 0.14
1/4 SM-252-6FO 9/16-18ORB 1.44 0.55 0.75 0.87 0.08
1/2 SM-502-8FO 3/4-16ORB 2.27 0.72 1.06 1.23 0.16
1/2 SM-502-8FP 1/2-14 NPTF 1.81 0.45 1.06 1.23 0.15
1/2 SM-502-8FB G1/2 BSPP 1.96 0.60 1.06 1.23 0.18
1/2 SM-502-12FP 3/4-14 NPTF 2.27 0.90 1.37 1.59 0.30
1/2 SM-502-12FB G3/4 BSPP 2.44 1.07 1.37 1.59 0.34
3/4 SM-752-12FO 1 1/16-12ORB 2.33 0.39 1.50 1.73 0.48
3/4 SM-752-12FP 3/4-14 NPTF 2.33 0.39 1.50 1.73 0.52
3/4 SM-752-12FB G3/4 BSPP 2.79 0.53 1.50 1.73 0.56
3/4 SM-752-16FP 1-11 1/2 NPTF 2.61 0.67 1.62 1.88 0.56
3/4 SM-752-16FB G 1 BSPP 2.61 0.67 1.62 1.88 0.68
3/4 SM-752-16FO 1-5/16-12ORB 2.61 0.67 1.62 1.88 0.68
