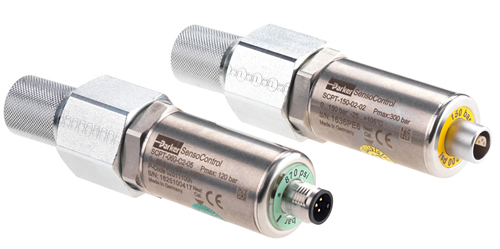

Parker SCPT SensoControl Pressure and Temperature Sensor
Parker SCPT壓力溫度傳感器

- 測量壓力和溫度
- 堅固的不銹鋼結構
- 響應時間1ms
- 可撲捉壓力峰值
- 典型精度為正負0.25%
- 操作靈活 - 帶測壓接頭，M16x2螺紋 - 螺紋連接形式 1/2 BSPP
- 精度 小于正負0.5%滿量程


SCPT壓力/溫度傳感器 1/2 BSPP外螺紋，帶接頭SCA-1/2-EMA-3
量程范圍：-1...015bar / 0....150bar / 0...600bar / 0...1000bar
SCPT-XXX-02-02

The pressure/temperature sensor SCPT is used for measurement with SensoControl hand meters in mobile and industrial hydraulic.The pressure/temperature sensor SCPT is used for measurement with SensoControl hand meters in mobile and industrial hydraulic. Fast response times of 1 ms guarantee the safe capture of pressure peaks in hydraulic systems. The robust stainless steel design allows a variety of applications, for example cooling water or pneumatics.

All pressure sensors are delivered with a diagnostic adapter (M16x2) installed. Fast and safe connection to the hydraulic system is ensured. Installation times are reduced.

The new design of the pressure/temperature sensor SCPT is with smaller dimensions and less weight for easier connection even under cramped conditions. Less power consumption enables longer battery life of the hand meter.

Parker SCPT SensoControl Pressure and Temperature Sensor
Parker SCPT壓力溫度傳感器

Pressure/temperature SCPT unique product features:
- Robust stainless steel design
- Response time of 1 ms
- Capturing of pressure peaks
- Accuracy ±0.5%

Markets:
Mobile and industrial hydraulic

Applications:
Pressure measurement with SensoControl hand meters. For maintenance, trouble shooting, machine set up or optimization

性能特點

轉接頭 SCA-1/2-EMA-3, SCA-1/2-PQC
壓力額定值 (BAR) 15, 60, 150, 400, 600, 1000, 015, 060
校準類型 None, ISO 9001
連接樣式 Analogue, CAN
