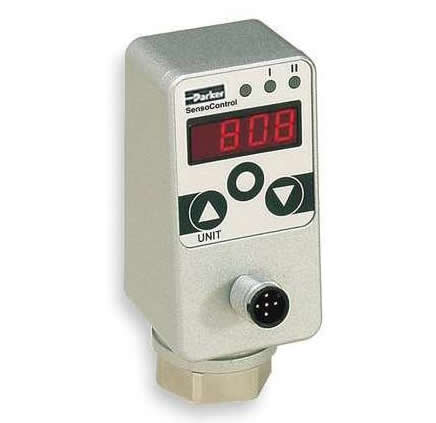

Parker SCPSD High Pressure 316 Stainless Steel Pressure Sensor
Parker SCPSD系列壓力傳感器

SCPSD pressure sensors have one or two independent PNP outputs with an additional 4-20 mA output. SCPSD sensors have a red LED display panel for visual monitoring. Sensors can be used to monitor vacuum pressure and up to 9000 psig.SCPSD pressure sensors are available with one or two independent PNP open collective transistor type outputs, with an additional 4-20 mA output that displays the pressure reading on a red LED display panel for visual monitoring. A M12 male electrical connector is provide for electrical connection. Sensors can be used to monitor vacuum pressure and up to 9000 psig.

Parker SCPSD High Pressure 316 Stainless Steel Pressure Sensor
Parker SCPSD系列壓力傳感器

Applications for pressure sensors are numerous and important in today's high-tech manufacturing environment. Outputs can be programmed normally passing or non-passing and in either Hysteresis Mode or Window Comparative Modes. In Hysteresis Mode, the user sets the switch point and reversing point. In Window Comparator Mode, the user sets the hi and low pressure band of operation. In addition to electrical outputs, these sensors have additional programming options that can be integrated into the system logic for additional benefits.Choose the best pressure sensor for the application based on pressure range, output type and additional programming options.

- Pressure Range: -14.7 to 250 PSI, 0 - 1000 PSI, 0 to 3000 PSI, 0 to 5000 PSI, 0 to 9000 PSI
- Pressure Range: PSIG | Bar
- Output Type: (2) PNP | (1) PNP with 4-20MA, (2) PNP with 4-20MA
- Electrical Connection| M12 4 pin | M12 5 pin
- Media: Air, Hydraulic Oil & Non-corrosive Gases
- Diaphragm Material: Ceramic | Stainless Steel
- Port Size: 7/16-20 UNF-2b (SAE-4), 1/4 BSPP
- Port Type: Male
- Operating Temperature (F): -4° to 185°
- Operating Temperature (C): -20° to 85°
- Power Supply: 15 to 30 VDC, Class 2 power supply
- Display: 1 color Red LED, 4-Digit, 7-Segment LED, 9mm height display
- Response Time: < 10ms
- Repeatability: + or - 0.25% Full Scale
- Certifications/Approvals: UL listed | CE marked | IP 67 | EN60529 | EMC-EN50082-2 Class B | EN 50081-2
- Current Consumption: < 100 mA
- Material Pressure Die-cast zinc Z 410: Surface-finishing. Display - Polyester, Diaphragm :Ceramic or Stainless Steel pending pressure scale.
- Unique Programming Options
- N.O or N.C Output Modes
- Units of Measure
- Hysteresis or Window Comparative Mode
- Output Response Time
- Password Lockable Programming
- Zero Reset
- Error Output Mode
- Decimal Set Point
- Accessories: RS232 Programming Kit
- Unique Options: Display head swivels 290°

性能特點

壓力范圍 -14.7 to 250 PSI | 0 - 1000 PSI | 0 to 3000 PSI | 0 to 5000 PSI | 0 to 9000 PSI
可顯示值 PSIG | Bar
輸出類型 (2) PNP | (1) PNP with 4-20MA | (2) PNP with 4-20MA
電氣連接 M12 4 pin | M12 5 pin
媒介 Air | Hydraulic Oil | Non-corrosive Gases
隔膜材料 Ceramic | Stainless Steel
端口尺寸 7/16-20 UNF-2b Male |1/4" BSPP Male
端口類型 SAE-4 |BSPP
工作溫度 (F) -4° to 185°
工作溫度 (C) -20° to 85°
輸入電源電壓 15 to 30 VDC |Class 2 power supply
顯示 1 color Red LED, 4-Digit, 7-Segment LED, 9mm height display
響應時間 (MS) < 10ms
重復性 + or - 0.25% Full Scale
證書 UL Listed | CE Marked | IP 67 | EN60529 | EMC-EN50082-2 Class B | EN 50081-2
電流消耗 (MA) < 100 mA
材料 Pressure Die-cast zinc Z 410: Surface-finishing |Display - Polyester | Diaphragm: Ceramic or Stainless Steel (pending pressure scale)
編程模式 N.O or N.C Output Modes | Programmable Units of Measure | Hysteresis or Window Comparative Mode | Output Response Time | Password Lockable Programming | Zero Reset | Error Output Mode | Decimal Set Point
附件 RS232 Programming Kit
選件 Display head swivels 290°
