Parker Hannifin Corporation Pioneer Products Group
Non-Spill Thread-to-Connect Couplings 59 Series and FET Series

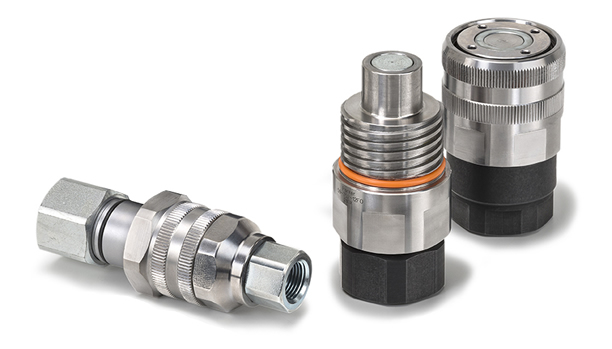

Parker's 59 Series High Pressure Non-Spill Quick Couplings

Parker 59 Series Couplers (hydraulic) up to 6000 psi connect with 59 Series Nipples. Parker's 59 Series is the premiere thread-to-connect coupling for high impulse hydraulic applications.

The rugged Acme threads are resistant to damage and have a double start feature to quickly align the threads, saving time and eliminating frustration. As few as two and one half sleeve rotations will complete a full 59 Series connection. The bright orange O-ring is concealed by the sleeve and you can also feel when the coupler and nipple are fully mated, giving both a visual and tactile confirmation of a secure connection

Engineered to perform, the 59 Series was designed with an internal bearing to reduce hose twist and ease the difficulty of connecting fluid lines while under pressure.

These rugged couplings are built with high strength materials and are highly impulse resistant. The coupler and nipple have non-spill stainless steel valves and can be connected under residual pressure up to 5000 psi and disconnected under residual pressure up to 2500 psi.

技術特性：

- Sizes: 1/2” to 1 1/2"
- Material: Steel with Zinc Nickel plating and FNC coating for extended durability
- Port Ends: Female NPTF, Female ORB
- Seal: Nitrile, polyurethane

Markets:
- Oil and Gas
- Construction
- Mining

Features/Benefits:
- ACME threads are resistant to damage and easy to clean when used in a rugged environment
- Double start threads quickly align, saving time and eliminating frustration
- Full connection in as few as 2-1/2 sleeve rotations
- When the external orange color O-ring is fully covered by the sleeve, it provides a tactile and visual indication that a complete connection has been made.
- Connect and disconnect under residual pressure
- Internal bearing reduces hose twist to ease the difficulty of connecting fluid lines while under pressure
- High strength materials are impulse resistant for demanding applications

典型產品應用:

- On-shore drilling and oil field equipment
- High impulse mobile circuits
- Excavator attachments
- Tunnel boring

Working Under Pressure Doesn't Need to be so Hard

規格參數：

MAXIMUM WORKING PRESSURE (PSI) Up to 6000
MEDIA Hydraulic
COUPLING HALF Coupler
MINIMUM WORKING TEMPERATURE (F) -40
MAXIMUM WORKING TEMPERATURE (F) 250
SEAL MATERIAL Nitrile - Polyurethane
VALVE STYLE Non-spill
BODY MATERIAL Steel
THREAD STYLE Female
APPLICATION Hydraulic, high pressure, non-spill, connect under pressure
PLATING Zinc Nickel plating - Black FNC coating
SLEEVE TYPE Thread to connect
LOCKING MECHANISM Threads

Together, we can give a new definition to "working under pressure." Parker's heavy duty threaded couplings are engineered to take the pressure and make the most demanding applications manageable. When you need to connect and disconnect hydraulic lines under pressure and without fluid loss, Parker has the solution.

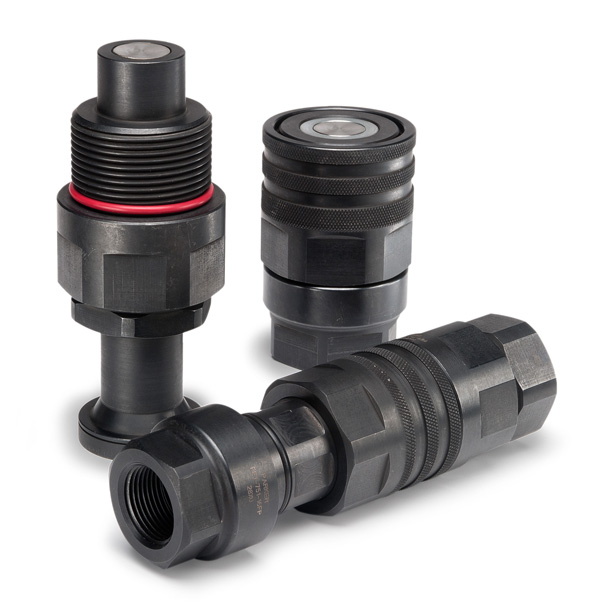

Interchange Plus More - Parker's FET Series provides interchangeability with similar high pressure thread-to-connect couplings by other manufacturers. FET Series performance and features such as non-spill valves, durability, and high impulse resistance are comparable to its competitors while bringing additional Parker benefits and advantages.

Premium Performance - Parker's 59 Series is the premiere thread-to-connect coupling for high impulse hydraulic applications. The rugged Acme threads are resistant to damage and have a double start feature to quickly align the threads, saving time and eliminating frustration. As few as two and one half sleeve rotations will complete a full 59 Series connection. The bright orange O-ring is concealed by the sleeve and you can also feel when the coupler and nipple are fully mated, giving both a visual and tactile confirmation of a secure connection. Engineered to perform, the 59 Series was designed with an internal bearing to reduce hose twist and ease the difficulty of connecting fluid lines while under pressure.

Interchange Plus More - FET Series
FET Coupler part numbers
FET Nipple part numbers

Premium Performance - 59 Series
59 Series Coupler part numbers
59 Series Nipple part numbers

FET or 59 Which is best for your application?
See the Difference Click here to compare

Non-Spill Thread-to-Connect Couplings
59 Series and FET Series

Download the Bulletins
for product specs, configurations & part numbers.

Parker's FET Series couplings High Pressure Non-Spill Quick Couplings	Parker's 59 Series High Pressure Non-Spill Quick Couplings
