Parker壓力表， ServiceJunior數字壓力表，ServiceJunior工具包

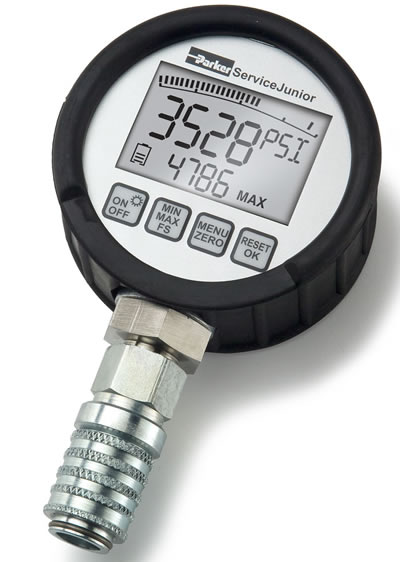

Parker ServiceJunior Digital Pressure Gauge

Parker壓力表，parker ServiceJunior數字壓力表特點：數碼式壓力測量，帶背光燈；最小/最大值或滿量程顯示；電池電量顯示；刻度顯示，帶峰值記憶功能；帶M16X2碳鋼內螺紋接頭；電源自動關閉功能。Parker's ServiceJunior diagnostic test kits are ideal to digitally measure pressure and capture min and max fluctuations in any hydraulic or pneumatic system。

Parker ServiceJunior數字壓力表 Parker ServiceJunior數字壓力表

- 數碼式壓力測量，帶背光燈
- 最小/最大值或滿量程顯示
- 刻度顯示，帶峰值記憶功能
- 帶M16x2碳鋼內螺紋接頭
- 電源自動關閉功能

Parker's ServiceJunior digital pressure gauges
PDF Catalog

Part Numbers & Specifications

PD Couplers rated to 6,000 PSI max
** EMA3 Couplers rated to 9,000 PSI max

Accessories

Parker壓力表，parker ServiceJunior數字壓力表，ServiceJunior工具包主要型號：

SCJN-016-01,SCJN-060-01-VAS-6550,SCJN-1000-01,SCJN-100-01,SCJN-400-01,SCJN-600-01,SCJN-KIT-016,SCJN-KIT-100,SCJN-KIT-400,SCJN-KIT-600,SCJNP-016-01-RC,SCJNP-1000-01-RC,SCJNP-100-01-RC,SCJNP-400-01-RC,SCJNP-600-01-RC,SCJNP-KIT-016-RC,SCJNP-KIT-100-RC
SCJNP-KIT-400-RC,SCJNP-KIT-600-RC

SCM-050-01-PD -14.5 to 435 psi (-1 to 30 Bar)
SCM-050-02-PD 0 to 4350 psi (0 to 300 Bar)
SCM-050-03-PD 0 to 8700 psi (0 to 600 Bar)
SCM-050-01-EMA -14.5 to 435 psi (-1 to 30 Bar)
SCM-050-02-EMA 0 to 4350 psi (0 to 300 Bar)
SCM-050-03-EMA 0 to 8700 psi (0 to 600 Bar)
SCM-050-01-4MP -14.5 to 435 psi (-1 to 30 Bar)
SCM-050-02-4MP 0 to 4350 psi (0 to 300 Bar)
SCM-050-03-4MP 0 to 8700 psi (0 to 600 Bar)

SCJR-5800-EMA
ServiceJunior Digital Pressure Gauge
ServiceJunior Digital Pressure Gauge
PD240: PD Series diagnostic coupler
SCA-7/16-EMA-3: 7/16 -18UNF-2B female to M16X2.0 EMA3 female swivel
SCJA-1/4: 7/16 -18UNF-2B female to ?” NPT male adapter
PDH-19: 19” PD Hose extension to be used with PD nipple interface
SMA3-400: 16” hose assembly for EMA M16X2.0 interface
SCC-110: Storage case for one gauge and diagnostic adapters
SCC-150: Storage case for two gauges and diagnostic adapter

SCJR1-KIT-PD
SCJR1-KIT-EMA

Parker's Service Junior digital gauges

PARKER ServiceJunior Digital Gauge SCJR-0250-4MP - 1/4" NPT Port. --14.5 to 250 PSI (-1 to 16 bar)	PARKER ServiceJunior Digital Gauge SCJR-5800-EMA - with EMA3 Coupler 0 to 5800 PSI (0 to 400 bar)	PARKER ServiceJunior Digital Gauge SCJR-8700-4MP - 1/4" NPT Port 0 to 8700 PSI (0 to 600 bar)
PARKER ServiceJunior Digital Gauge SCJR-5800-4MP - 1/4" NPT Port - 0 to 5800 PSI (0 to 400 bar)	PARKER ServiceJunior Digital Gauge Adapter SCJA-1/4 . 7/16 -18UNF-2B female to 1/4" NPT male adapter	Parker ServiceJunior Digital Gauge SCJR-8700-EMA - Digital pressure, Measuring Range: 0 to +8700PSI, EMA3 coupler connection
SCC-110 Parker Gauge Case	SCJR1-KIT-EMA Parker ServiceJunior EMA Style Kit SCJR1-KIT-EMA EMA Style Ser. Man Jr. 2 Gauges	ServiceJunior Digital Pressure Gauge SCJR-8700-PD

Part Numbers

PARKER ServiceJunior Digital Gauge
SCJR-5800-4MP - 1/4" NPT Port - 0 to 5800 PSI (0 to 400 bar)

PARKER ServiceJunior Digital Gauge
SCJR-8700-4MP - 1/4" NPT Port 0 to 8700 PSI (0 to 600 bar)

PARKER ServiceJunior Digital Gauge
SCJR-5800-EMA - with EMA3 Coupler
0 to 5800 PSI (0 to 400 bar)

PARKER ServiceJunior Digital Gauge
SCJR-0250-4MP - 1/4" NPT Port. --14.5 to 250 PSI (-1 to 16 bar)

PARKER ServiceJunior Digital Gauge Adapter
SCJA-1/4 .
7/16 -18UNF-2B female to 1/4" NPT male adapter

Parker ServiceJunior Digital Gauge SCJR-8700-EMA - Digital pressure, Measuring Range: 0 to +8700PSI, EMA3 coupler connection
SCC-110 Parker Gauge Case

SCJR1-KIT-EMA Parker ServiceJunior EMA Style Kit
SCJR1-KIT-EMA
EMA Style Ser. Man Jr. 2 Gauges

ServiceJunior Digital Pressure Gauge

SCJR-0250-PD
SCJR-0250-EMA
SCJR-0250-4MP
SCJR-1500-PD
SCJR-1500-EMA
SCJR-1500-4MP
SCJR-5800-PD
SCJR-5800-EMA
SCJR-5800-4MP
SCJR-8700-PD*
SCJR-8700-EMA**
SCJR-8700-4MP
